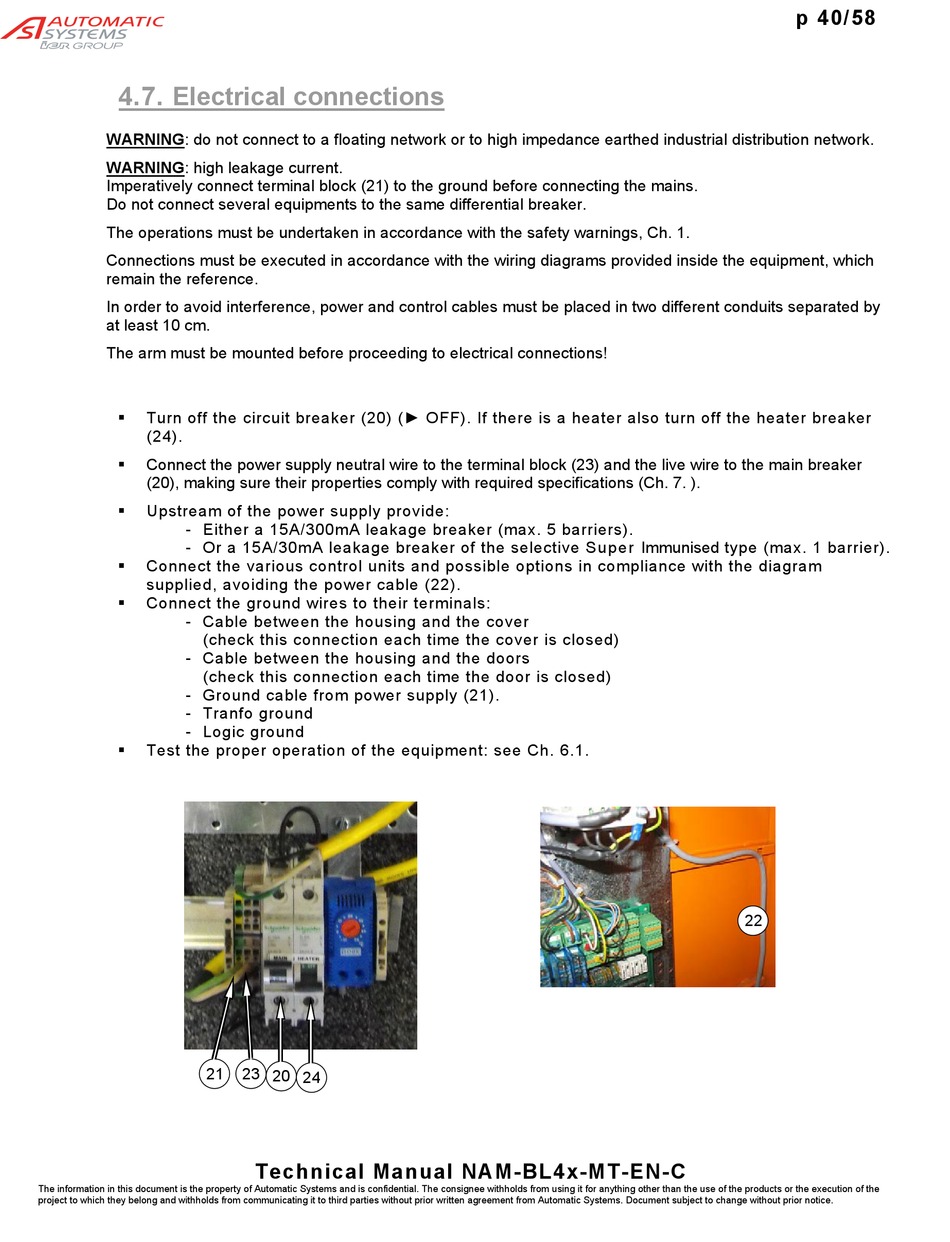

4.7. Electrical connections

WARNING: do not connect to a floating network or to high impedance earthed industrial distribution network.
WARNING: high leakage current.
Imperatively connect terminal block (21) to the ground before connecting the mains.
Do not connect several equipments to the same differential breaker.
The operations must be undertaken in accordance with the safety warnings, Ch. 1.
Connections must be executed in accordance with the wiring diagrams provided inside the equipment, which
remain the reference.
In order to avoid interference, power and control cables must be placed in two different conduits separated by
at least 10 cm.
The arm must be mounted before proceeding to electrical connections!
Turn off the circuit breaker (20) (► OFF). If there is a heater also turn off the heater breaker

(24).
 Connect the power supply neutral wire to the terminal block (23) and the live wire to the main breaker
(20), making sure their properties comply with required specifications (Ch. 7. ).
 Upstream of the power supply provide:
- Either a 15A/300mA leakage breaker (max. 5 barriers).
- Or a 15A/30mA leakage breaker of the selective Super Immunised type (max. 1 barrier).
 Connect the various control units and possible options in compliance with the diagram
supplied, avoiding the power cable (22).
 Connect the ground wires to their terminals:
- Cable between the housing and the cover
(check this connection each time the cover is closed)
- Cable between the housing and the doors
(check this connection each time the door is closed)
- Ground cable from power supply (21).
- Tranfo ground
- Logic ground
 Test the proper operation of the equipment: see Ch. 6.1.
