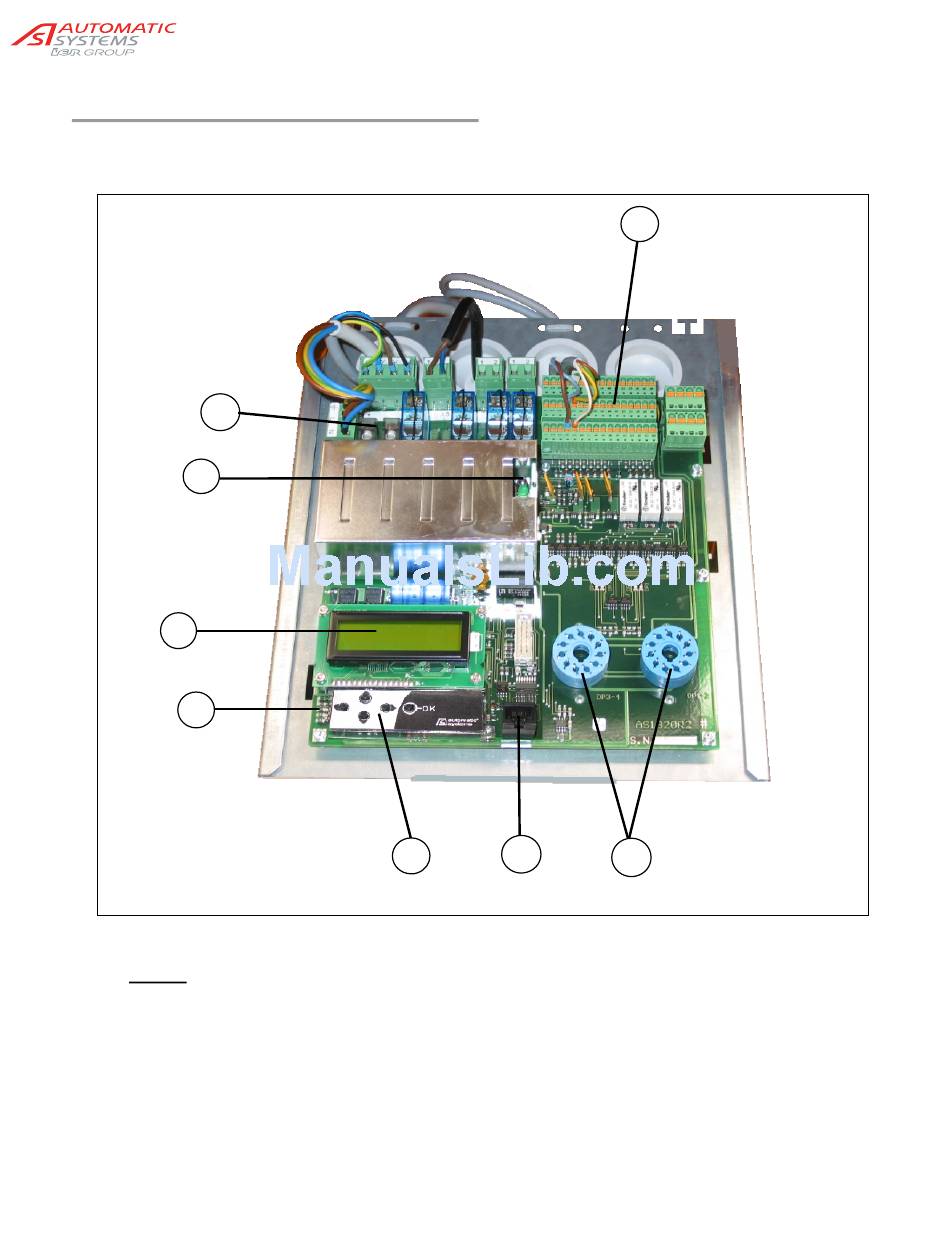

3. AS1320 CONTROL BOARD

(Excract from AS1320 techniciean manual)
6:1
6:2
6:3
6:7
Legend
6:1. Fuses
6:2. Light indicating that the stabilised power supply is switched on
6:3. Menu display screen
6:4. Keys for navigating through the menu
6:5. Connector for the RJ45 communication cable
6:6. Terminal blocks for external communication (Input/Output connections)
6:7. Green LEDs (lights indicating that the control board has been turned on)
6:8. Connectors for presence detectors (for inductive loops)
The information in this document is the property of Automatic Systems and is confidential. The consignee withholds from using it for anything other than the use of the products or the execution of the
project to which they belong and withholds from communicating it to third parties without prior written agreement from Automatic Systems. Document subject to change without prior notice.
6:4
Technical Manual NAM-BL4x-MT-EN-C
6:6
6:5
6:8
p 10/58
