Summary of Contents for Dynacord TGX10

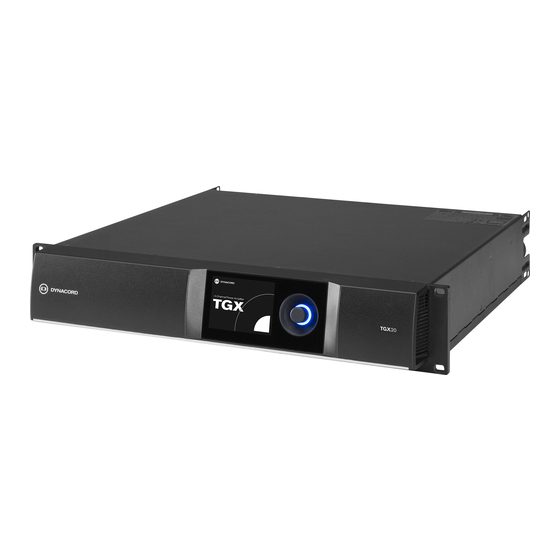

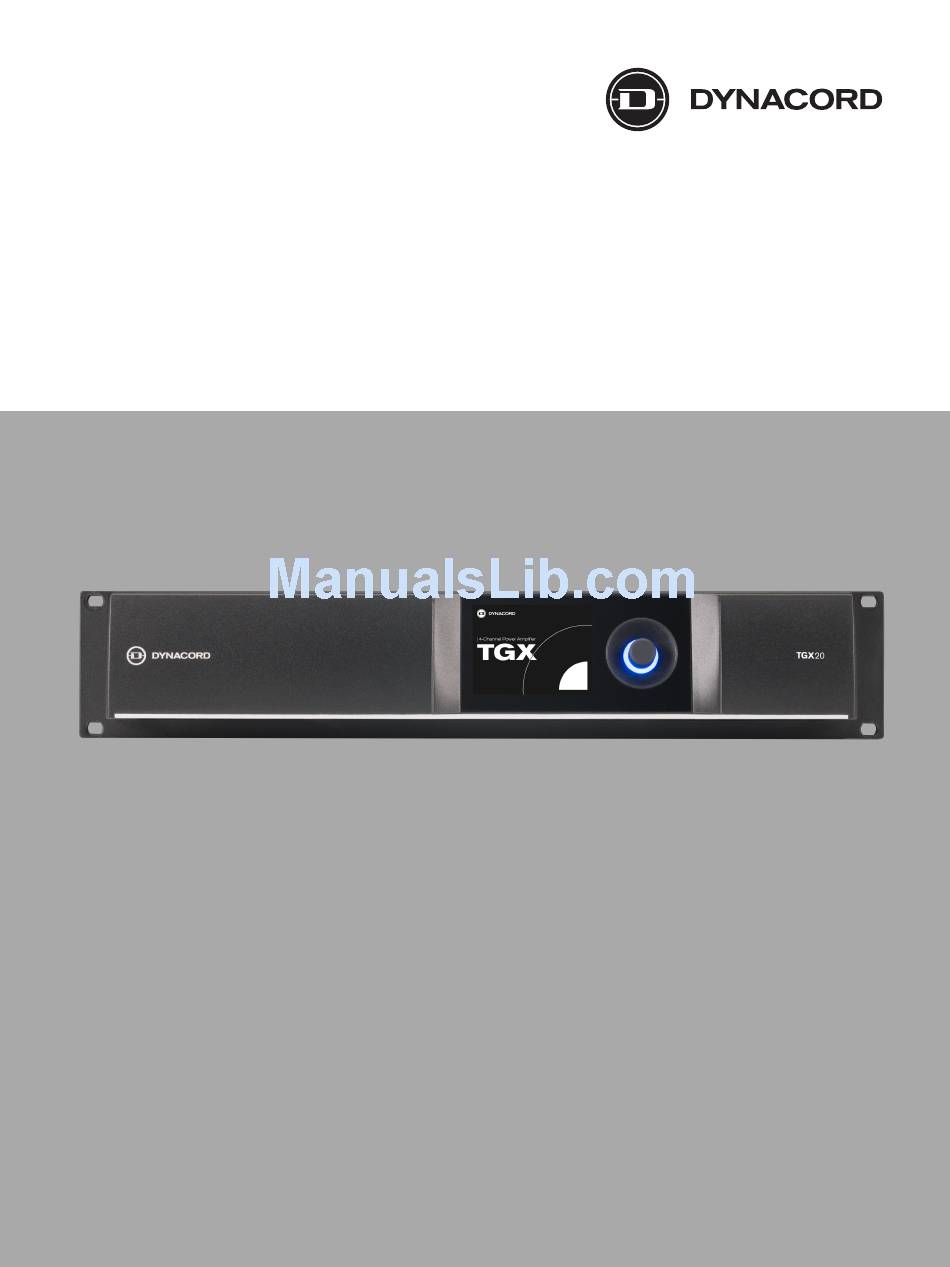

- Page 1 TGX 4‑Channel Power Amplifier TGX10 | TGX20 Installation manual...
-
Page 3: Table Of Contents
LCD display and control menu 7.1.1 Home screen 7.1.2 Main menu 7.1.3 Channel page Remote control via software Technical data TGX10 TGX20 Mains operation & resulting temperature Block diagram Dimensions Accessories Bosch Security Systems, Inc. Installation manual 2018.05 | 01 | F.01U.330.704... -
Page 4: Safety
en | Safety TGX 4-Channel Power Amplifier Safety Safety messages explained Four types of signs can be used in this manual. The type is closely related to the effect that may be caused if it is not observed. These signs - from least severe effect to most severe effect - are: Notice! Containing additional information. - Page 5 TGX 4-Channel Power Amplifier Safety | en Use only a dry cloth to clean the unit. Do not cover any ventilation slots. Always refer to the manufacturer's instructions when installing the device. Do not install the device close to heaters, ovens, or other heat sources. Note: The device must only be operated via the mains power supply with a safety ground connector.
-
Page 6: Safety Precautions
en | Safety TGX 4-Channel Power Amplifier The minimum distance between voltage-carrying parts and metal parts that can be touched (such as the metal housing) or between mains poles is 3 mm, and must be observed at all times. The minimum distance between voltage-carrying parts and circuit parts that are not connected to the mains (secondary) is 6 mm, and must be observed at all times. -
Page 7: Notices
For information on getting permission for reprints and excerpts, contact Dynacord. All content including specifications, data, and illustrations in this manual are subject to change without prior notice. -
Page 8: About This Manual
Digital document This manual is available as a digital document in the Adobe Portable Document Format (PDF). You can find information about Dynacord products on the product related information at www.dynacord.com. 2018.05 | 01 | F.01U.330.704 Installation manual Bosch Security Systems, Inc. -
Page 9: System Overview
Features TGX10 – Multichannel DSP amplifier for live applications – Power density of 10kW in 2RU –... - Page 10 en | System overview TGX 4-Channel Power Amplifier Quantity Component Mains power connector, 32 A with safety & assembly instruction Safety instruction booklet Keep the original invoice that states the purchase/delivery date in a safe place. 2018.05 | 01 | F.01U.330.704 Installation manual Bosch Security Systems, Inc.
-
Page 11: Planning Information
– Sufficient free space and access at the rear of the 19" units for connectors and wiring. To find current user documentation, firmware, or software visit our product related information at www.dynacord.com. Bosch Security Systems, Inc. Installation manual 2018.05 | 01 | F.01U.330.704... -
Page 12: Installation
Ventilation As with all Dynacord fan cooled power amps, the airflow direction is front-to-rear. When installing the power amp in a case or rack system, attention should be paid to provide sufficient ventilation. - Page 13 TGX 4-Channel Power Amplifier Installation | en Figure 5.1: Power amplifier ventilation Caution! Blocking/closing the power amp's ventilation louvers is not permissible. Without sufficient cooling/ventilation, the power amplifier may enter protect mode. Keep ventilation louvers free from dust to ensure unhindered airflow. Notice! Do not use the power amplifier in direct sunlight or near heat sources, like heater blowers, stoves, or any other heat radiating devices.
-
Page 14: Controls, Indicators, And Connections
en | Controls, indicators, and connections TGX 4-Channel Power Amplifier Controls, indicators, and connections Front panel Amplifier set up, configuration, and monitoring via the touch screen, encoder or the dedicated remote control software. Figure 6.1: TGX front panel Full color 3.5” capacitive touch screen. USB service port. -
Page 15: Power Outputs
TGX 4-Channel Power Amplifier Controls, indicators, and connections | en Power outputs The output connectors on TGX amplifiers are NL4 type. Outputs A and C carry the signal from the adjacent channel to allow for system cabling. Connector Pins 1+/- Pins 2+/- Output A Ch A... -
Page 16: Fan Cooling
en | Controls, indicators, and connections TGX 4-Channel Power Amplifier Fan cooling The power amplifier has four fans. The fans are fully controlled and supervised by the amplifiers management system and adjust their speed depending on the temperature. The temperatures of the power amplifier’s channels are registered and monitored individually. 2018.05 | 01 | F.01U.330.704 Installation manual Bosch Security Systems, Inc. -
Page 17: Power Amplifier Menu Navigation
The front panel control content and menu structure is subject to change with firmware version updates. For current information, see the product's support section on our website: www.dynacord.com. 7.1.1 Home screen The Home screen has all of the basic information about the amplifier usually found as hardware, such as power status, amp status, level indication, and input/output metering. -
Page 18: Channel Page
en | Power amplifier menu navigation TGX 4-Channel Power Amplifier Figure 7.2: Main menu Turning on Standby mode To turn on standby mode, do the following: Tap the main menu button Tap Power Off. The Standby confirmation prompt appears, "Switch Power to Standby. Are you sure?" Select Yes. - Page 19 TGX 4-Channel Power Amplifier Power amplifier menu navigation | en Figure 7.3: Channel page with sub menus The array control parameters, as well as speaker processing parameters, are not available via the front panel. Load shows the actual measured speaker impedance and indicates impedance errors.
-
Page 20: Remote Control Via Software
TGX amplifiers are compatible with current IRIS-Net software and will be also controlled from the next generation of sound system control software. For further information on current software and firmware releases, visit our website: www.dynacord.com. 2018.05 | 01 | F.01U.330.704 Installation manual... -
Page 21: Technical Data
TGX 4-Channel Power Amplifier Technical data | en Technical data TGX10 OUTPUT POWER Load impedance 2 Ω 2.7 Ω 4 Ω 8 Ω Maximum Output Power 2600 W 3000 W 2500 W 1250 W All channels driven Number of amplifier channels... - Page 22 en | Technical data TGX 4-Channel Power Amplifier Analog in to Speaker Out, 48 kHz/96 0.70 ms/0.53 ms AES3 in to Speaker Out, 48 kHz/96 1.00 ms/0.66 ms Dante Network Latency typ. 1.00 ms Signal Processing 32/40 bit, floating point User EQ 12 filters per channel, selectable as PEQ, Lo-Shelv, Hi-Shelv, Lo-ShelvQ, Hi- ShelvQ, Hi-Pass, Lo-Pass and Notch;...
- Page 23 TGX 4-Channel Power Amplifier Technical data | en Thru Connector active buffered, direct bypass if device is unpowered Network Type 2 x Neutrik etherCON/RJ45, redundant PRIMARY/SECONDARY Format 1000base-T/100base-TX, integrated switch Network Audio Inputs 8 channels, 48/96 kHz, OMNEO/Dante format Network Audio Outputs (Monitor) 2 channels, 48/96 kHz, OMNEO/Dante format Front side Service Port 1 x USB Type A...
-
Page 24: Tgx20
en | Technical data TGX 4-Channel Power Amplifier Shipping Weight 17.2 kg (37.8 lb) Amplifier at rated conditions; all channels driven, 4 Ω loads, analog input, 32 dB gain, 48 kHz sample rate, unless otherwise specified. Test signal for max. output power according IHF-A-202 (Dynamic-Headroom, burst 1 kHz/20 ms on/480 ms off/low level -20 dB). - Page 25 TGX 4-Channel Power Amplifier Technical data | en Sampling rate 48 kHz/96 kHz, OMNEO/Dante synchronized Signal Delay/Latency Analog in to Speaker Out, 48 kHz/96 0.70 ms/0.53 ms AES3 in to Speaker Out, 48 kHz/96 1.00 ms/0.66 ms Dante Network Latency typ.
- Page 26 en | Technical data TGX 4-Channel Power Amplifier Format AES3 (AES/EBU) Input Sample Rates 32 to 192 kHz, internal Sample-Rate-Converter Thru Connector active buffered, direct bypass if device is unpowered Network Type 2 x Neutrik etherCON/RJ45, redundant PRIMARY/SECONDARY Format 1000base-T/100base-TX, integrated switch Network Audio Inputs 8 channels, 48/96 kHz, OMNEO/Dante format Network Audio Outputs (Monitor)
-
Page 27: Mains Operation & Resulting Temperature
For further details refer to the mains operation & resulting temperature tables available at www.dynacord.com. Bosch Security Systems, Inc. Installation manual 2018.05 | 01 | F.01U.330.704... -
Page 28: Block Diagram
en | Technical data TGX 4-Channel Power Amplifier Block diagram Figure 8.1: Block diagram: TGX 2018.05 | 01 | F.01U.330.704 Installation manual Bosch Security Systems, Inc. -
Page 29: Dimensions
TGX 4-Channel Power Amplifier Technical data | en Dimensions Figure 8.2: Dimensions: TGX Bosch Security Systems, Inc. Installation manual 2018.05 | 01 | F.01U.330.704... -
Page 30: Accessories
en | Accessories TGX 4-Channel Power Amplifier Accessories The following accessories are available for the TGX amplifiers: Description PD32-EU Power distro 3x32A, 230V, CEE 32A PD30-US Power distro 3x30A, 208V, NEMA L21-30 PCO32A30-US Power cord, powerCon32/NEMA L6-30 PCO32A16-EU Power cord, powerCon32/CEE7/7 PCO32A16-UK Power cord, powerCon32/BS1363 PCO32A10-AU... - Page 32 Bosch Security Systems, Inc. 130 Perinton Parkway Fairport, NY 14450 www.dynacord.com © Bosch Security Systems, Inc., 2018...
