Dynacord DPA 4245 Owner's Manual

DPA 4245 / DPA 4260 POWER AMPLIFIER
Features
•
2 x 450 watts output power capacity DPA 4245
•
2 x 600 watts output power capacity DPA 4260
•
floating 100 V / 70 V / 25 V power outputs (isolated outputs)
•
low impedance outputs (direct outputs)
•
bridged mode operation, switchable
•
all outputs are protected against idling and short-circuit
•
mains supply 230 V AC 50/60 Hz
•
POWER REMOTE function
•
service mains switch
•
active ventilation via 2 temperature-controlled DC-fans
•
electronically balanced inputs
•
routing switch for parallel linked operation
•
input gain controls
•
integrated audio limiters
•
power-on switching noise suppression
•
protection circuitry: DC/HF, Back-EMF, output voltage overload limiters, initial inrush current limiter,
output peak current limiter
•
18 dB/oct. LO-cut filter at 45 Hz
•
SIGNAL and LIMIT indication for optical monitoring
•
thermal overload protection for the heat sink and the internal power supply, with PROTECT-function
•
inputs transformers for balanced, floating operation are optionally available
•
XLR-type and binding post clamping input connectors
•
19" frame size, 3 HU
CH A CH B
LIMIT PROTECT
SIGNAL POWER
OWNER'S MANUAL

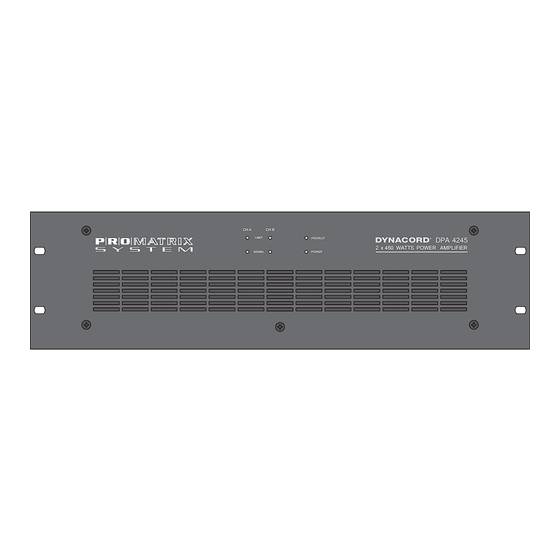

DPA 4245
2 x 450 WATTS POWER AMPLIFIER
