２.Installation Method
The Power Monitor may be mounted on a desktop or on a wall surface for use.
"Wall Installation", "Desktop Installation" and "Guiding the AC Adapter Cable" are respectively
explained in this chapter.
* Communication status between the Inverter and the Meter must be verified prior to installation,
in order to use wireless communication for the Power Monitor.
* Consult the retailer where you purchased the Power Monitor when relocating your Power Monitor.

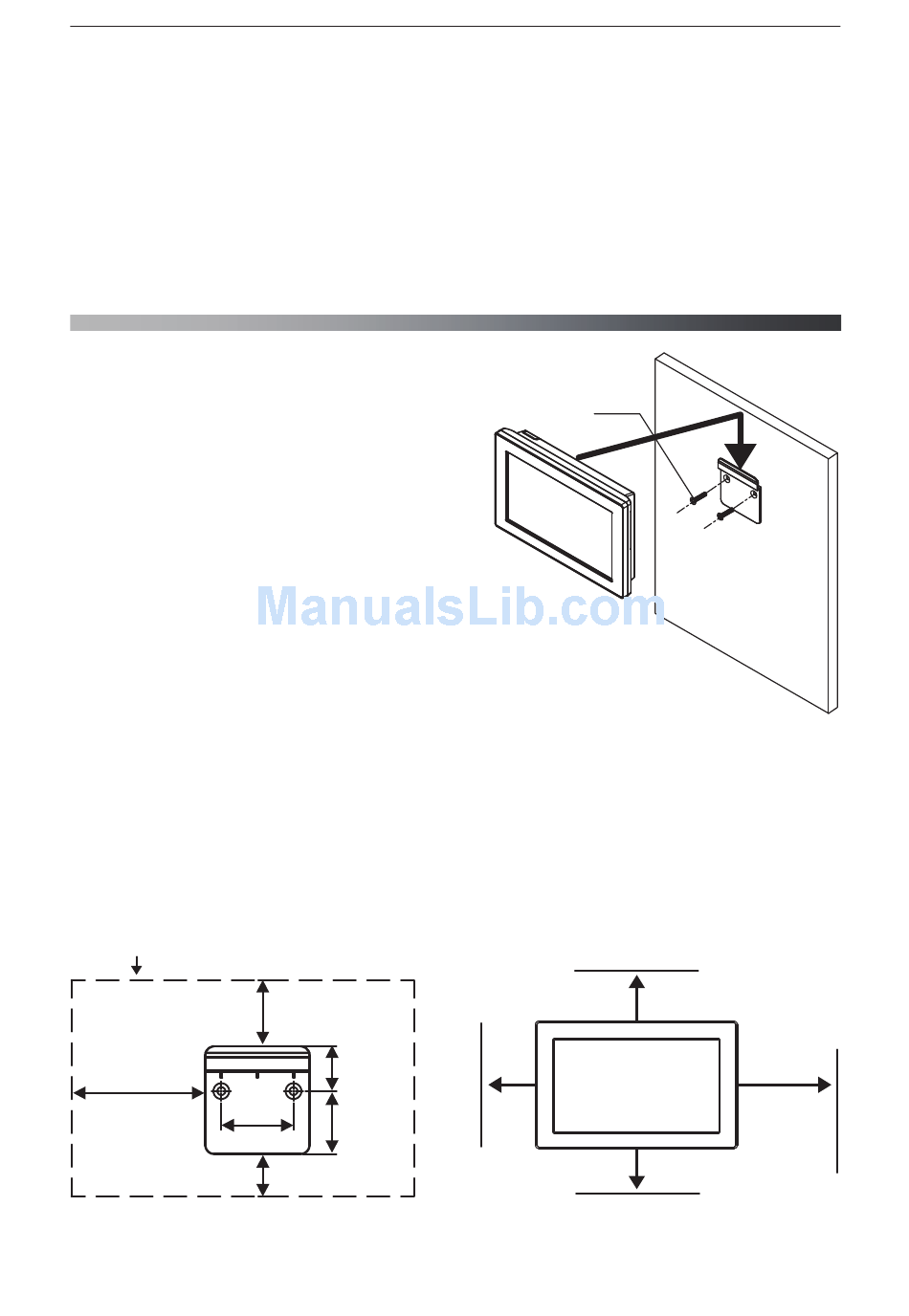

2.1.Wall Installation

■ Installing Wall Surface / Desktop Mounting Plate on Power Monitor
● Installation on wall
① Install the Wall Surface / Desktop Mounting Plate
on the wall, using the wood screws provided.
・ Install the Wall Surface / Desktop Mounting Plate on a location
that can withstand the weight of the main unit.
・ Use countersunk screws of 4 dia., when installing at a location
where the provided wood screws cannot be used.
・ Apply torque of 1.5 to 2.0 Nm when installing wood screws on a wall made of wooden materials.
・ Install on a flat wall surface.
② Verify the hooking portion of the Wall Surface / Desktop Mounting Plate and the Wall Mounting
Plate and the insertion slot for anchoring the Wall Surface Mounting Plate on the reverse surface
of the main unit, then press on the main unit until the insertion slot for anchoring is positioned
above the upper section of the Wall Surface / Desktop Mounting Plate.
③ Slide the main unit lower in that position and securely engage the hooking portion.
・ Hook on the insertion slot for anchoring the Wall Surface Mounting Plate on the reverse surface
of the main unit on the Wall Surface / Desktop Mounting Plate and shift down by approximately
1 centimeter.
Main unit
74mm
■ Dimensions of Wall Surface / Desktop Mounting Plate
and the main unit
36.7mm
25mm
40mm
35mm
23.3mm
Wood screws, 4 dia
50mm
■ Separation distance from respective surfaces of
main unit
19

Installation Method

②
③
①
50mm
150mm
20mm
