Information on The Product

1.3.Descriptions and Functions of Parts and Components

Important
Do not connect a telephone line or household LAN cable to the LAN terminal.

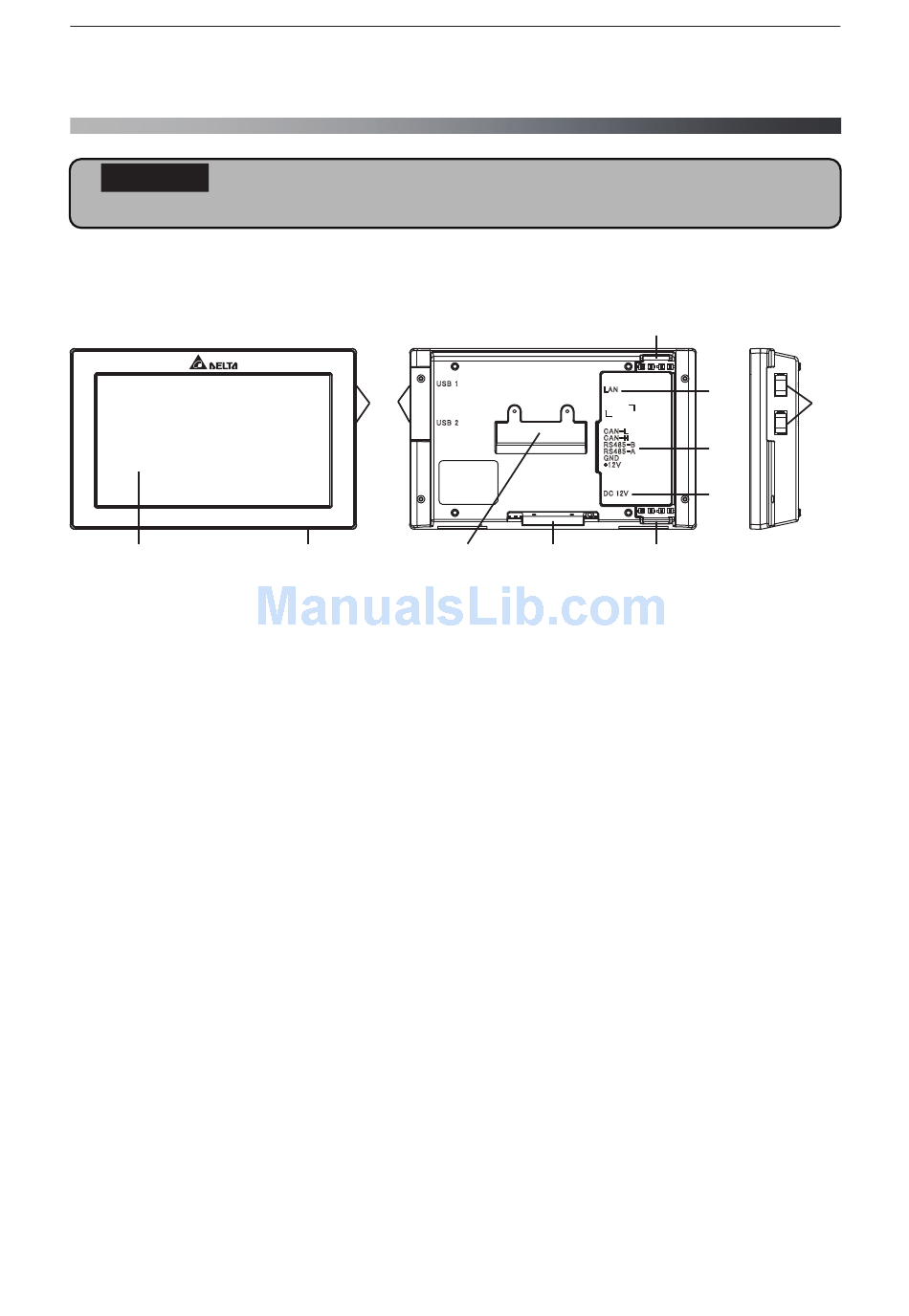

■ Power Monitor
Front
POWER MONITOR
⑨
① LAN terminal (RJ-45 terminal) (fitted with a protective cover)
This is the terminal that is used to connect the system to an internet line. (A setup is required.)
② RS-485 (a 6-pin terminal)
This is the terminal that is used to connect a 6-pin connector provided, to link the supply of power
and signals from the Inverter.
③ Power Supply terminal
This is the terminal that is used to connect the AC Adapter provided.
④ USB Terminal (for USB 1 and USB 2) (fitted with a protective cover)
Downloading of various data and upgrading of software versions can be performed.
Furthermore, the monitor and the Inverter, as well as the Meter can be converted into a wireless
communication system by connecting the USB Wireless Module provided with the Wireless Set.
* Customers are requested to procure their own USB memory and USB cable.
⑤ Insertion slot for anchoring the Wall Surface Mounting Plate.
This is the insertion slot used to install the Wall Surface / Desktop Mounting Plate when installing
the Product on the wall.
⑥ Insertion slot for anchoring the Desktop Mounting Plate
This is the insertion slot used to install the Wall Surface/ Desktop Mounting Plate when installing
the Product on desktop.
⑦ Reset button
This is intended for use in maintenance work carried out by the manufacturer. Do not use this.
⑧ Wiring access
According to the prescribed wiring method, remove the tab on the wiring access, and guide the
cable through.
⑨ Touch Panel section
Displays are switched and various settings are performed by performing touch panel operations.
④
USB 1
USB 2
⑦ ⑤
14
⑧
Back
①
LAN
②
CAN-L
CAN-H
RS485-B
RS485-A
GND
+12V
③
DC 12V
⑥ ⑧
Side
④
