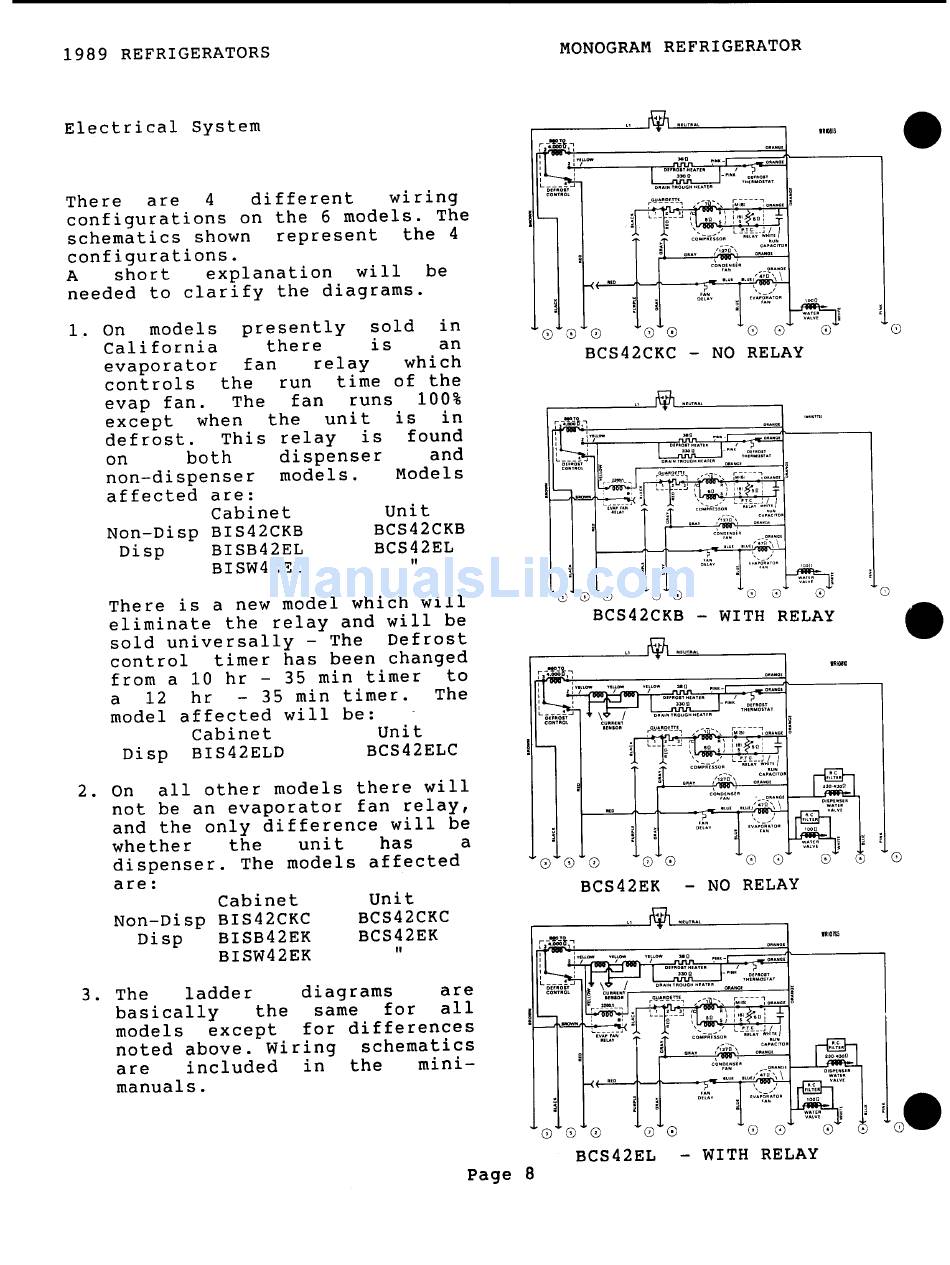

1989 REFRIGERATORS
Electrical System
There
are
4
different
wiring
configurations on the 6 models. The
schematics shown
represent
the 4
configurations.
A
short
explanation
will
be
needed to clarify the diagrams.
1. On
models
presently
sold
in
California
there
is
an
evaporator
fan
relay
which
controls
the
run
time of the
evap fan.
The
fan
runs
100%
except
when
the
unit
is
in
defrost.
This relay
is
found
on
both
dispenser
and
non-dispenser
models.
Models
affected are:
Cabinet
Non-Disp BIS42CKB
Disp
BISB42EL
BISW42EL
unit
BCS42CKB
BCS42EL
"
There is a new model which will
eliminate the relay and will be
sold universally - The
Defrost
control
timer has been changed
from a 10 hr - 35 min timer
to
a
12
hr
- 35 min timer.
The
model affected will be:
Cabinet
unit
Disp
BIS42ELD
BCS42ELC
2. On
all other models there will
not be an evaporator fan relay,
and the only difference will be
whether
the
unit
has
a
dispenser. The models affected
are:
Non-Disp
Disp
Cabinet
BIS42CKC
BISB42EK
BISW42EK
unit
BCS42CKC
BCS42EK
"
3. The
ladder
diagrams
are
basically
the
same
for
all
models
except
for differences
noted above. Wiring
schematics
are
included
in
the
mini-
manuals.
Page 8
MONOGRAM REFRIGERATOR
..
1R10813
0 8 0 0 8
0 0 0
BCS42CKC - NO RELAY
..
(2)
(2)
(2)
(2)
(0)
BCS42CKB - WITH RELAY
..
o
8
0
0
8
BCS42EK
- NO RELAY
..
o
8
0
0
8
BCS42EL
Of'IIOST
n<fIlMosr",r
•• 101&5
8
8
8
- WITH RELAY
•
•
