1989 REFRIGERATORS
Dispenser
The
dispenser
models
are
also
equipped
with
electronics.
The
electronics
found on the Monogram
models are the same as found on
a
standard side by side.
The
electronics
portion
of
the
system
is
included
in
the
mini-manual
for
that model.
You
can
also
reference
Part
#
162D2928P001
for
electronic
control
console
removal,
status
check
list,
and
control
board
connections.
Removal of Dispenser Recess
To
remove
the
dispenser
recess
from
the freezer door,
you must
first
remove
the
freezer
door
handle
which
also serves as trim
and
panel
rail.
The
handle
is
held in place with 8 phillips head
screws.
After
removing
the
handle,
the
recess front cover panel
must
be
pried
loose
from the outer door.
It is held in
place
with
double
back sealing tape.
Pull the cover
forward
and
using
a putty knife
work down the insi8e of the cover,
pushing back the double back
tape
as you go.
The cover will also be
held by guide post but these
will
slip
out
of
the
holes
easily.
After the
cover
has
been
freed
from
the
tape
it is still being
held in place by the lower panel's
upper support rail.
Slide the upper decorative panel
out of the rails, and set aside .

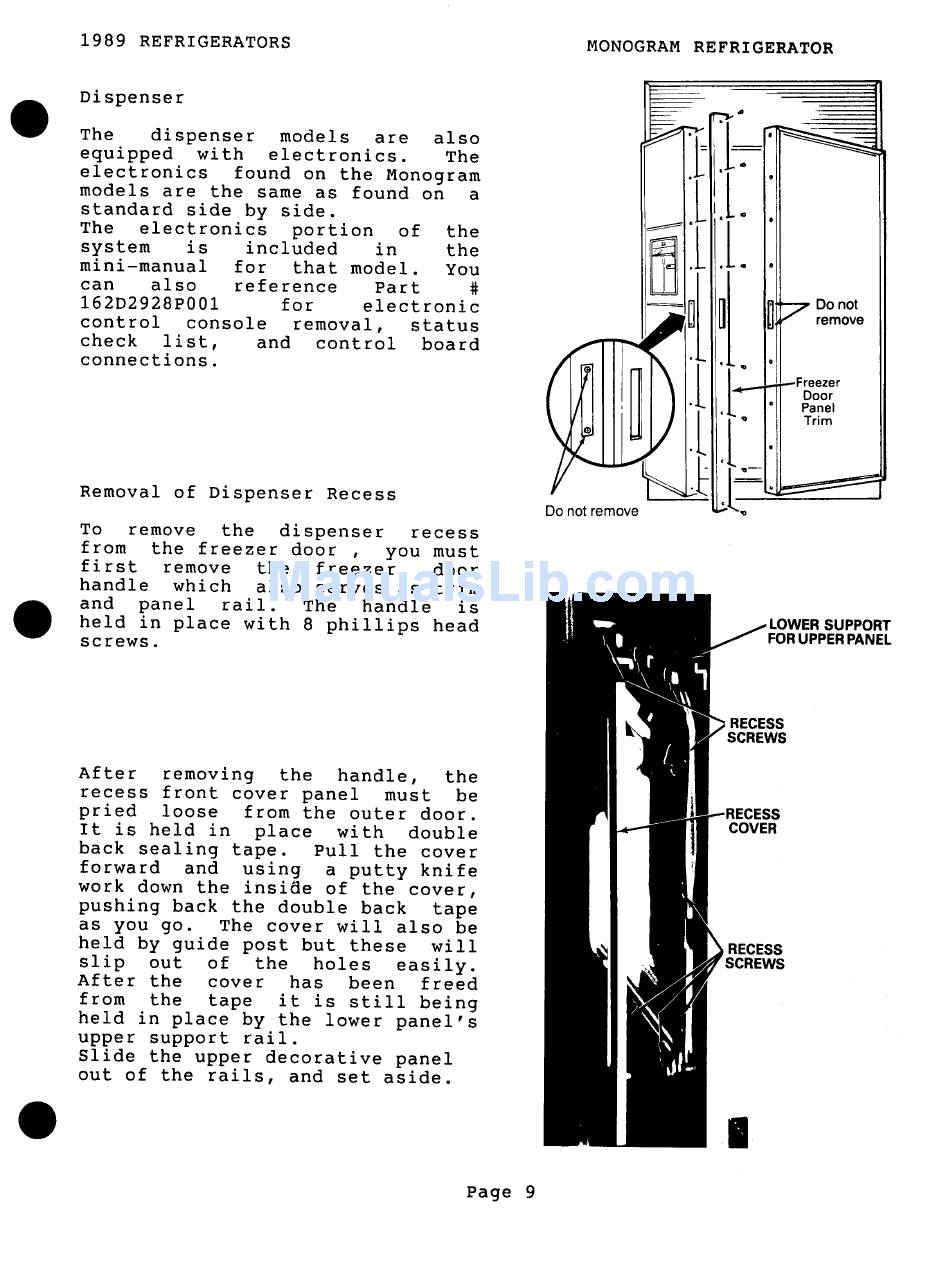

Page 9
MONOGRAM REFRIGERATOR
Do not remove
~I
Do not
remove
~--..,.-
Freezer
Door
Panel
Trim
LOWER SUPPORT
FOR UPPER PANEL
