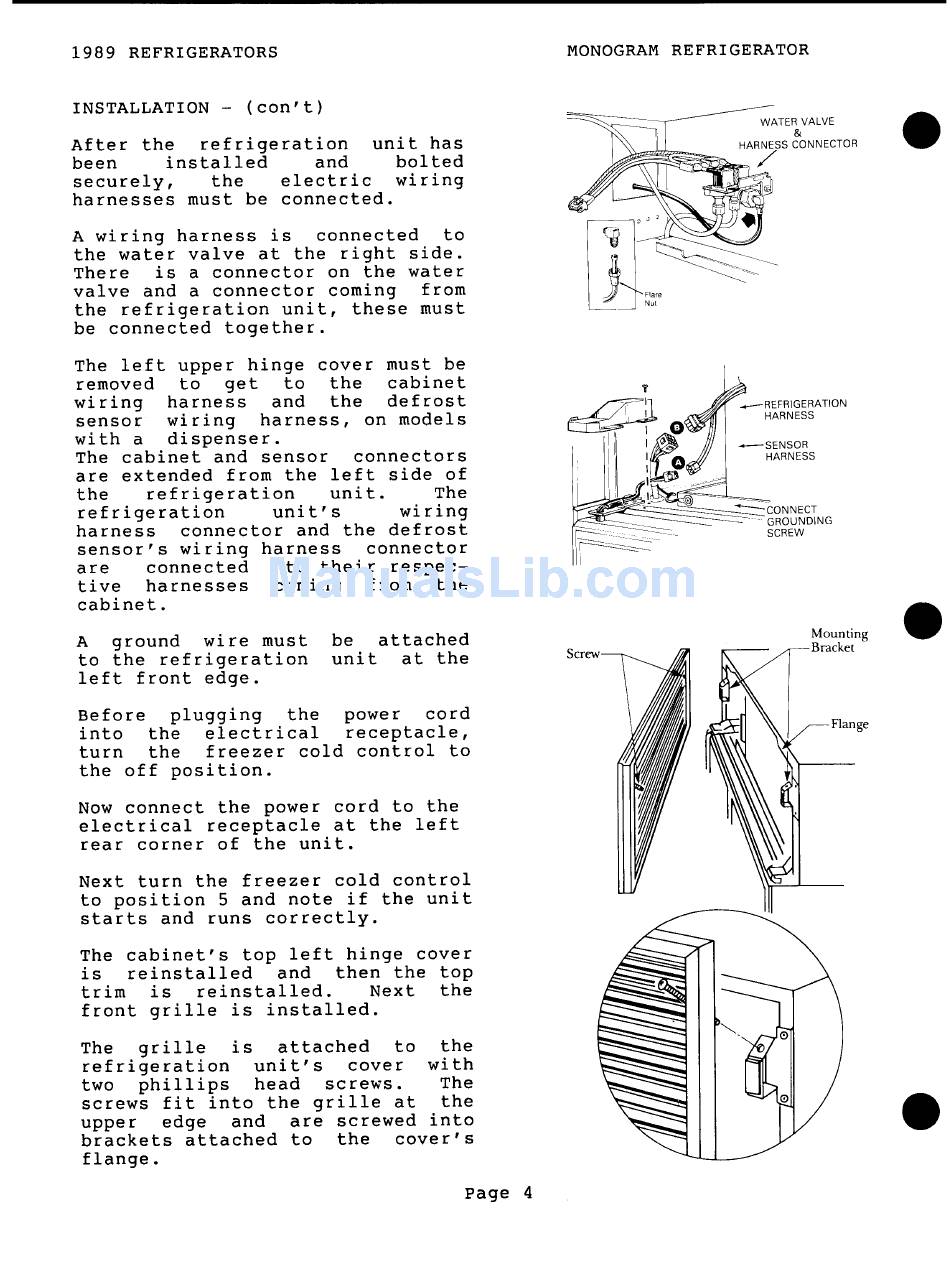

1989 REFRIGERATORS
INSTALLATION -
(con't)
After the
refrigeration
unit has
been
installed
and
bolted
securely,
the
electric
wiring
harnesses must be connected.
A wiring harness is
connected
to
the water valve at the right side.
There
is a connector on the water
valve and a connector corning
from
the refrigeration unit, these must
be connected together.
The left upper hinge cover must be
removed
to
get
to
the
cabinet
wiring
harness
and
the
defrost
sensor
wiring
harness, on models
with a
dispenser.
The cabinet and sensor
connectors
are extended from the left side of
the
refrigeration
unit.
The
refrigeration
unit's
wiring
harness
connector and the defrost
sensor's wiring harness
connector
are
connected
to their respec-
tive
harnesses
corning
from
the
cabinet.
A
ground
wire must
to the refrigeration
left front edge.
be
attached
unit
at the
Before
plugging
the
power
cord
into
the
electrical
receptacle,
turn
the
freezer cold control to
the off position.
Now connect the power cord to the
electrical receptacle at the left
rear corner of the unit.
Next turn the freezer cold control
to position 5 and note if the unit
starts and runs correctly.
The cabinet's top left hinge cover
is
reinstalled
and
then the top
trim
is
reinstalled.
Next
the
front grille is installed.
The
grille
is
attached
to
the
refrigeration
unit's
cover
with
two
phillips
head
screws.
The
screws fit into the grille at
the
upper
edge
and
are screwed into
brackets attached to
the
cover's
flange.
page 4
MONOGRAM REFRIGERATOR
k: . . . . . . . . • •. .
~~~~
...
Ii==-
_REFRIGERATION
HARNESS
_SENSOR
HARNESS
Mounting
Bracket
Flange
