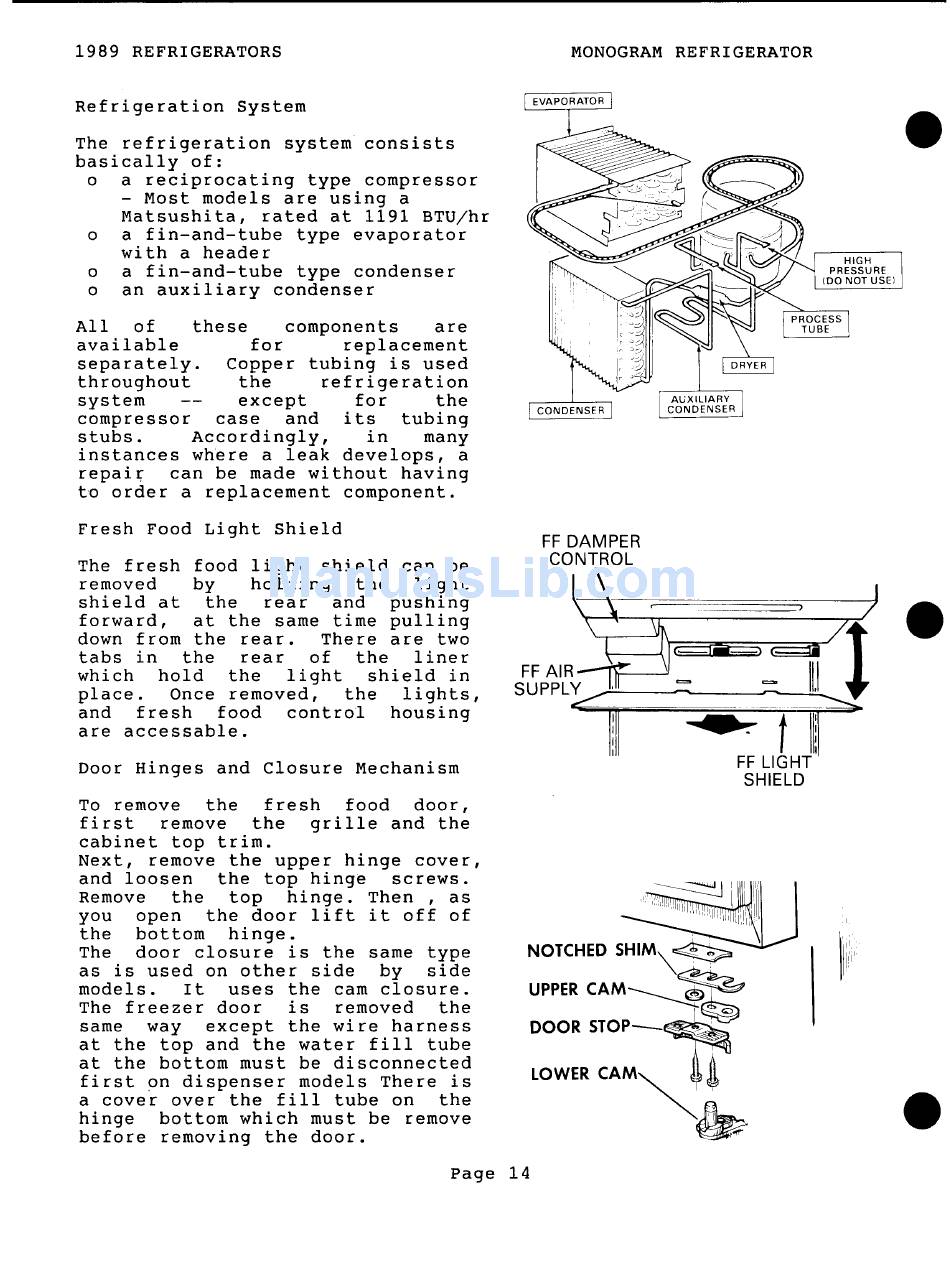

1989 REFRIGERATORS
Refrigeration System
The refrigeration system consists
basically of:
o
a reciprocating type compressor
- Most models are using a
Matsushita, rated at 1191 BTU/hr
o
a fin-and-tube type evaporator
with a header
o
a fin-and-tube type condenser
o
an auxiliary condenser
All
of
these
components
are
available
for
replacement
separately.
Copper tubing is used
throughout
the
refrigeration
system
except
for
the
compressor
case
and
its
tubing
stubs.
Accordingly,
in
many
instances where a leak develops, a
repair
can be made without having
to order a replacement component.
Fresh Food Light Shield
The fresh food light shield can be
removed
by
holding
the
light
shield at
the
rear
and
pushing
forward,
at the same time pulling
down from the rear.
There are two
tabs in
the
rear
of
the
liner
which
hold
the
light
shield in
place.
Once removed,
the
lights,
and
fresh
food
control
housing
are accessable.
Door Hinges and Closure Mechanism
To remove
the
fresh
food
door,
first
remove
the
grille and the
cabinet top trim.
Next, remove the upper hinge cover,
and loosen
the top hinge
screws.
Remove
the
top
hinge. Then, as
you
open
the door lift it off of
the
bottom
hinge.
The
door closure is the same type
as is used on other side
by
side
models.
It
uses the cam closure.
The freezer door
is
removed
the
same
way
except the wire harness
at the top and the water fill tube
at the bottom must be disconnected
first on dispenser models There is
a cover over the fill tube on
the
hinge
bottom which must be remove
before removing the door.
