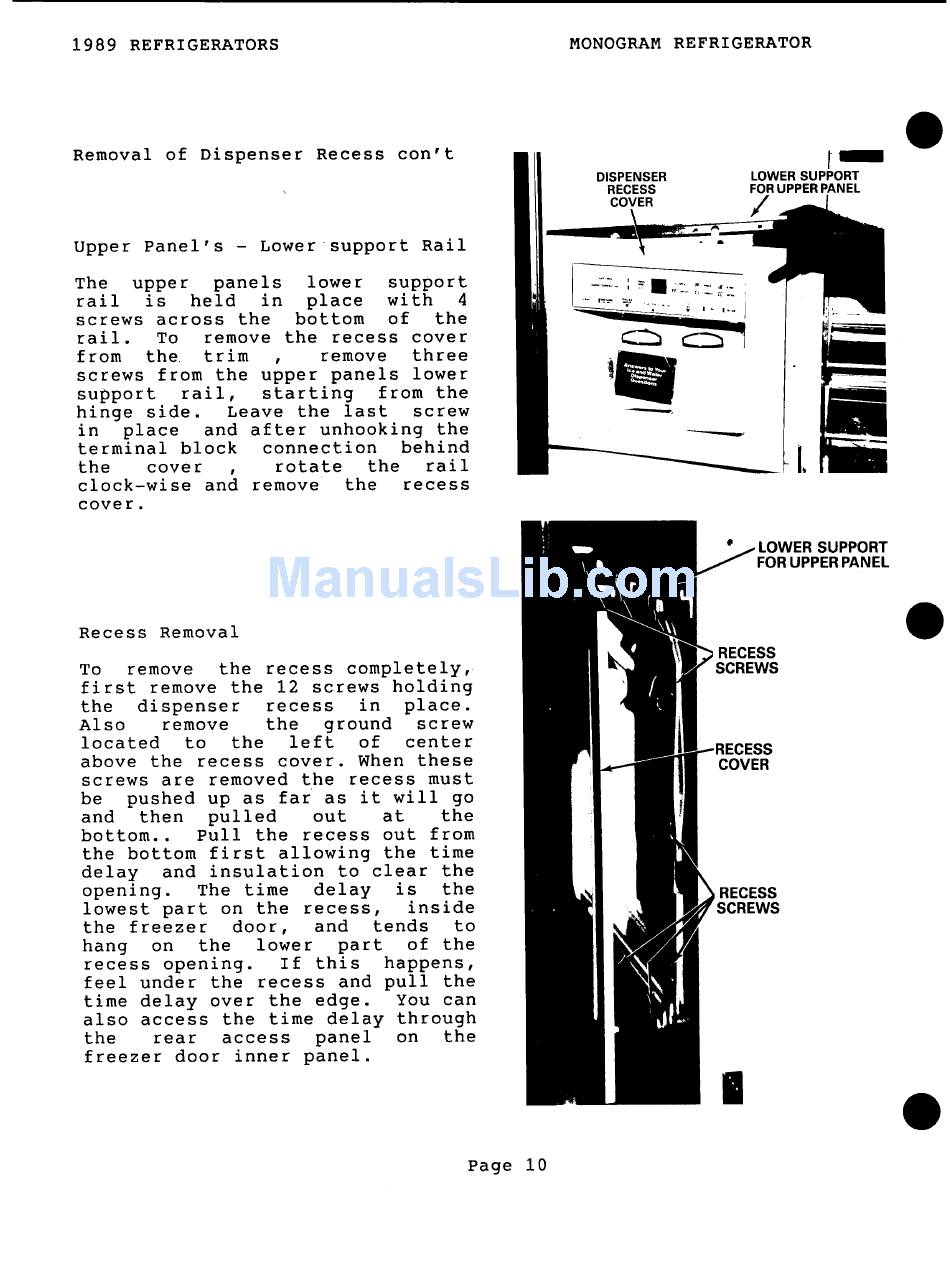

1989 REFRIGERATORS
Removal of Dispenser Recess con't
upper Panel's - Lower support Rail
The
upper
panels
lower
support
rail
is
held
in
place
with
4
screws across the
bottom
of
the
rail.
To
remove the recess cover
f rom
the
trim,
remove
three
screws from the upper panels lower
support
rail,
starting
from the
hinge side.
Leave the last
screw
in
place
and after unhooking the
terminal block
connection
behind
the
cove r
,
rota te
the
rai
I
clock-wise and remove
the
recess
cover.
Recess Removal
To
remove
the recess completely,
first remove the 12 screws holding
the
dispenser
recess
in
place.
Also
remove
the
ground
screw
located
to
the
left
of
center
above the recess cover. When these
screws are removed the recess must
be
pushed up as far as it will go
and
then
pulled
out
at
the
bottom ..
Pull the recess out from
the bottom first allowing the time
delay
and insulation to clear the
opening.
The time
delay
is
the
lowest part on the recess,
inside
the freezer
door,
and
tends
to
hang
on
the
lower
part
of the
recess opening.
If this
happens,
feel under the recess and pull the
time delay over the edge.
You can
also access the time delay through
the
rear
access
panel
on
the
freezer door inner panel.
Page 10
MONOGRAM REFRIGERATOR
DISPENSER
RECESS
COVER
-,
I
r -
LOWER SUPPORT
FOR UPPER
/
LOWER SUPPORT
FOR UPPER PANEL
