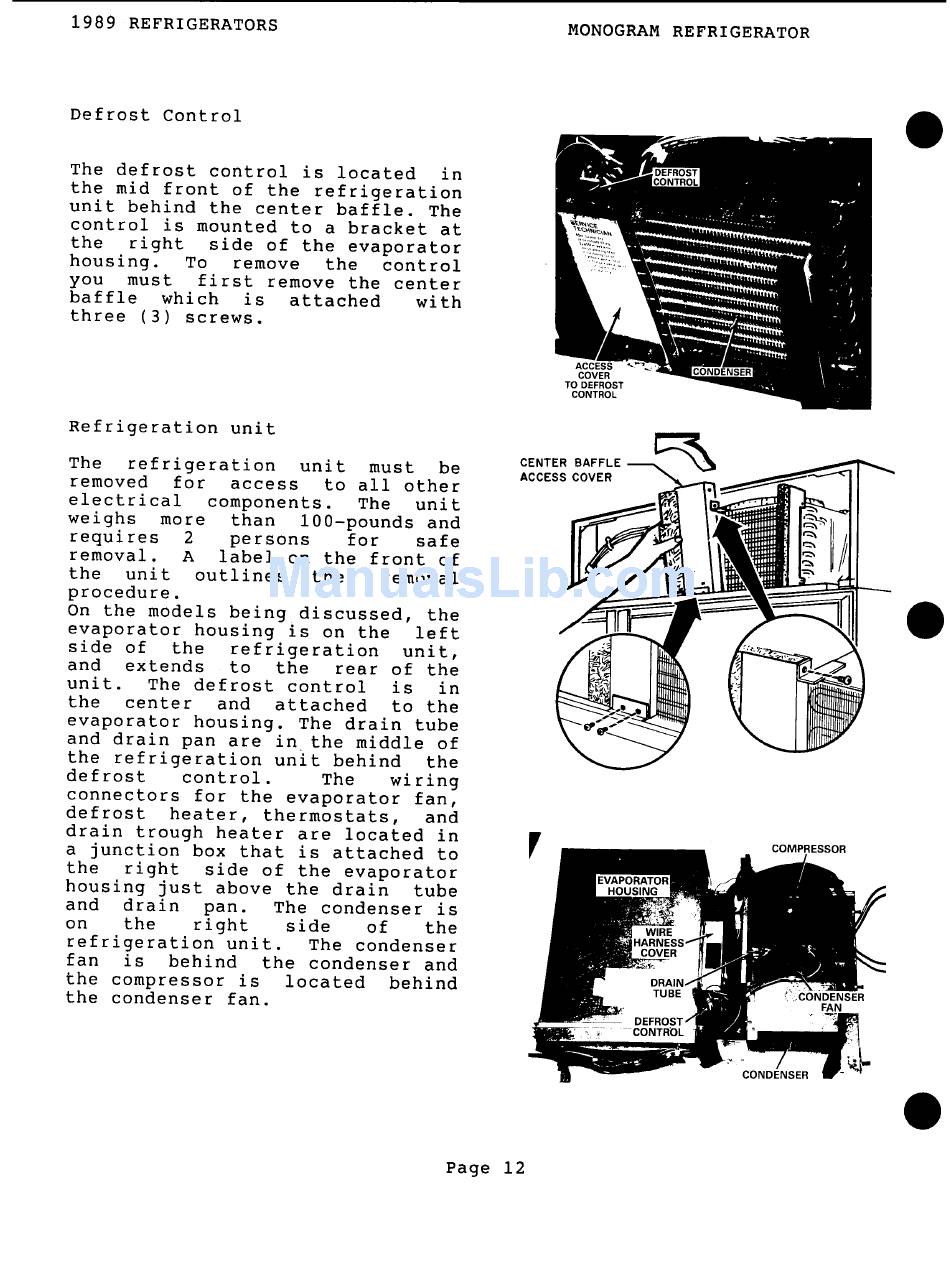

1989 REFRIGERATORS
Defrost Control
The defrost control is located
in
the mid front of the refrigeration
unit behind the center baffle. The
control is mounted to a bracket at
the
right
side of the evaporator
housing.
To
remove
the
control
you
must
first remove the center
baffle
which
is
attached
with
three (3) screws.
Refrigeration unit
The
refrigeration
unit
must
be
removed
for
access
to all other
electrical
components.
The
unit
weighs
more
than
100-pounds and
requires
2
persons
for
safe
removal.
A
label on the front of
the
unit
outlines
the
removal
procedure.
On the models being discussed, the
evaporator housing is on the
left
side of
the
refrigeration
unit,
and
extends
to
the
rear of the
unit.
The defrost control
is
in
the
center
and
attached
to the
evaporator housing. The drain tube
and drain pan are in. the middle of
the refrigeration unit behind
the
defrost
control.
The
wiring
connectors for the evaporator fan,
defrost
heater, thermostats,
and
drain trough heater are located in
a junction box that is attached to
the
right
side of the evaporator
housing just above the drain
tube
and
drain
pan.
The condenser is
on
the
right
side
of
the
refrigeration unit.
The condenser
fan
is
behind
the condenser and
the compressor is
located
behind
the condenser fan.
MONOGRAM REFRIGERATOR
CENTER BAFFLE
ACCESS COVER
Page 12
•
•
•
