1989 REFRIGERATORS

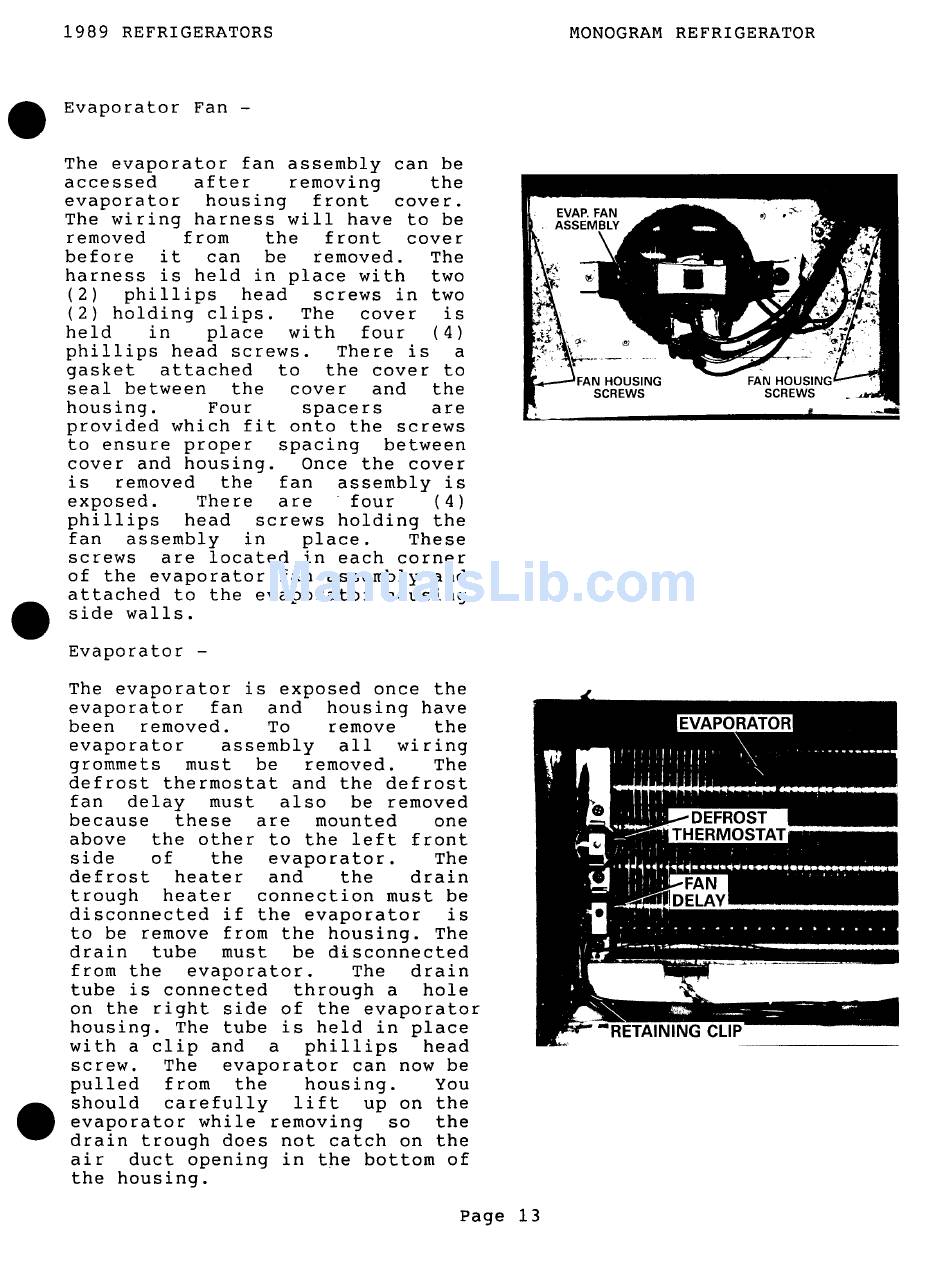

Evaporator Fan -
The evaporator fan assembly can be
accessed
after
removing
the
evaporator
housing
front
cover.
The wiring harness will have to be
removed
from
the
front
cover
before
it
can
be
removed.
The
harness is held in place with
two
(2)
phillips
head
screws in two
(2) holding clips.
The
cover
is
held
in
place
with
four
(4)
phillips head screws.
There is
a
gasket
attached
to
the cover to
seal between
the
cover
and
the
housing.
Four
spacers
are
provided which fit onto the screws
to ensure proper
spacing
between
cover and housing.
Once the cover
is
removed
the
fan
assembly is
exposed.
There
are
four
(4)
phillips
head
screws holding the
fan
assembly
in
place.
These
screws
are located in each corner
of the evaporator fan assembly and
attached to the evaporator housing
side walls.
Evaporator -
The evaporator is exposed once the
evaporator
fan
and
housing have
been
removed.
To
remove
the
evaporator
assembly
all
wiring
grommets
must
be
removed.
The
defrost thermostat and the defrost
fan
delay
must
also
be removed
because
these
are
mounted
one
above
the other to the left front
side
of
the
evaporator.
The
defrost
heater
and
the
drain
trough
heater
connection must be
disconnected if the evaporator
is
to be remove from the housing. The
drain
tube
must
be disconnected
from the
evaporator.
The
drain
tube is connected
through a
hole
on the right side of the evaporator
housing. The tube is held in place
with a clip and
a
phillips
head
screw.
The
evaporator can now be
pulled
from
the
housing.
You
should
carefully
lift
up on the
evaporator while removing
so
the
drain trough does not catch on the
air
duct opening in the bottom of
the housing.
Page 13
MONOGRAM REFRIGERATOR
