Operating Instructions and Parts Manual

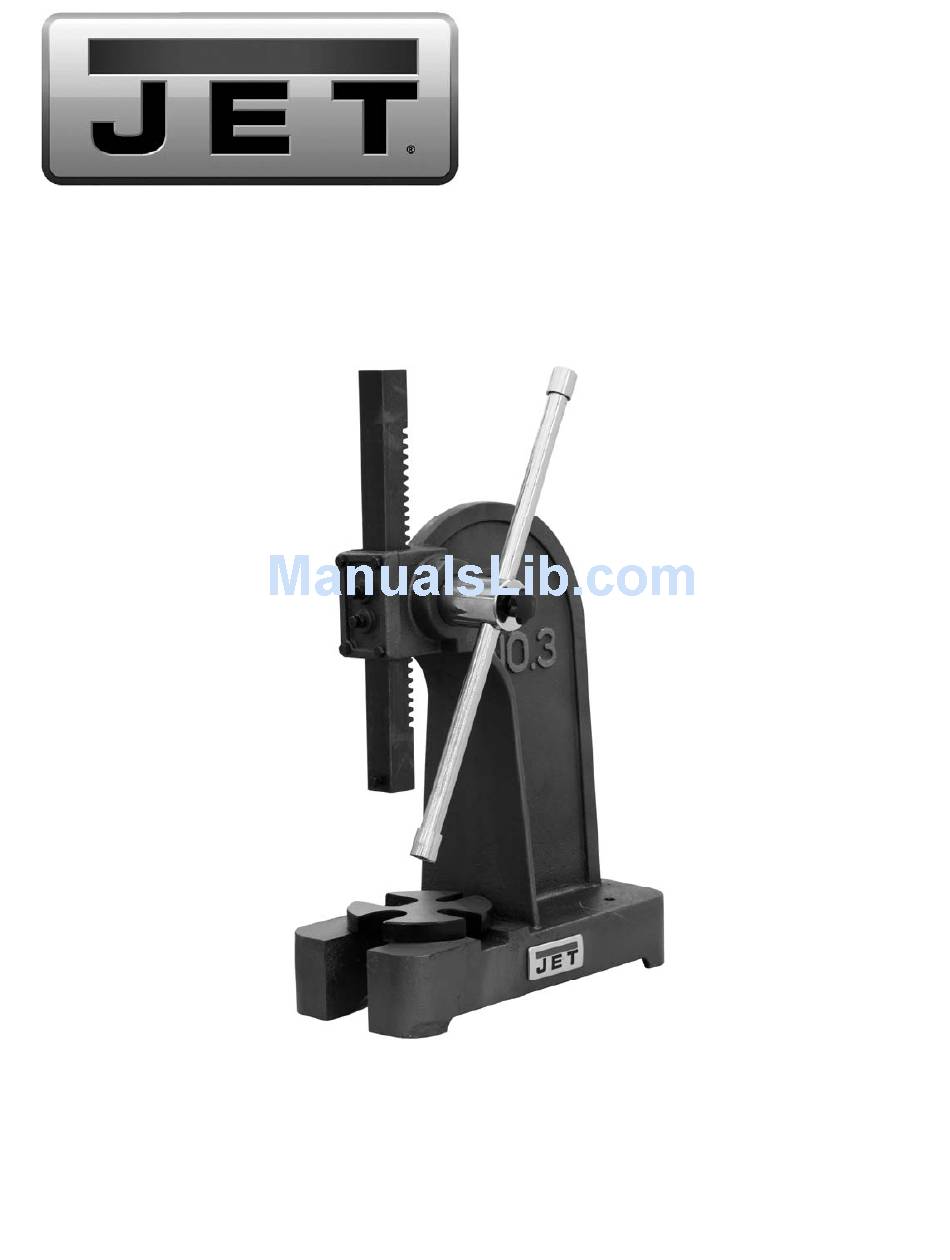

Arbor Press – ½-, 1-, 2-, 3-, 5-Ton
Model No. AP0-M, AP1-M, AP2-M, AP3-M, AP5-M
JET
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-333605M
Ph.: 800-274-6848
Revision B 12/2015
www.jettools.com
Copyright © 2015 JET
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP0-M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jet AP0-M

Summary of Contents for Jet AP0-M

  • Page 1 Operating Instructions and Parts Manual Arbor Press – ½-, 1-, 2-, 3-, 5-Ton Model No. AP0-M, AP1-M, AP2-M, AP3-M, AP5-M 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-333605M Ph.: 800-274-6848 Revision B 12/2015 www.jettools.com Copyright © 2015 JET...

  • Page 2: Warranty And Service

    Accessories; Shop Tools; Warehouse & Dock products; Hand Tools; Air Tools NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries, Inc., or any of its successors in interest to the JET brand.

  • Page 3: Table Of Contents

      Exploded View ............................... 8 The specifications in this manual are given as general information and are not binding. JET reserves the right to effect, at any time and without prior notice, changes or alterations to parts, fittings, and accessory...

  • Page 4: Warnings

    5. Do not use this arbor press for other than its intended use. If used for other purposes, JET disclaims any real or implied warranty and holds itself harmless from any injury that may result from that use.

  • Page 5: Introduction

    Shipping Weight (lb.) ....... 19 ....26-1/2 ....69-1/2 ...... 116 ....296-1/2 The above specifications were current at the time this manual was published, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations.

  • Page 6: Arbor Press Features

    Arbor Press Features Maintenance The arbor press (see Exploded view on page 8) A. Periodically lubricate the arbor press with a consists of a cast iron base, an anvil, a pressing light machine oil. handle with lock knob, and a rack-type ram. B.

  • Page 7: Parts Lists

    9 ..TS-1490051 ..Bolt, Hex M8x30 ..2 Parts Lists 10 ..TS-1490051 ..Bolt, Hex M8x30 ..2 11 ..TS-1540061 ..Nut, Hex M8 ....4 Model AP0-M – 1/2-ton Arbor Press 12 ..AP2-12G ..Plate ......1 Index Part No. Description 13 ..TS-1523011 ..SHSS M6x6 ....1 1 ..

  • Page 8: Exploded View

    Exploded View 427 New Sanford Road LaVergne, Tennessee 37086 Ph: 800-274-6848 www.jettools.com...
