Addressable Device Control Reference
Overview. The 4100ES provides standard addressable
device communications for IDNet compatible devices and
accepts optional modules for communications with
MAPNET II compatible devices. Using a two-wire
communications circuit, individual devices such as
manual fire alarm stations, TrueAlarm sensors,
conventional IDC zones, and sprinkler waterflow
switches can be interfaced to the addressable controller to
communicate their identity and status.
Addressability allows the location and condition of the
connected device to be displayed on the operator interface
LCD and on remote system annunciators. Additionally,
control circuits (fans, dampers, etc.) may be individually
controlled by using a relay IAM (individual addressable
module).
Addressable Operation. Each addressable device on
the communication channel is continuously interrogated
for status condition such as: normal, off-normal, alarm,
supervisory, or trouble. Sophisticated poll and response
communication techniques ensure supervision integrity
and allow for "T-tapping" of the circuit for Class B
(Style 4) operation. The device LED blinks to indicate
receipt of a communications poll and is steady on to
indicate an alarm (or trouble) condition.
IDNet Channel Capacity. The CPU bay system power
supply (SPS) provides an IDNet signaling line circuit
(SLC) that supports up to 250 addressable monitor and
control points intermixed on the same pair of wires.
Additional IDNet circuit modules are available for 64,
127, or 250 addressable devices.

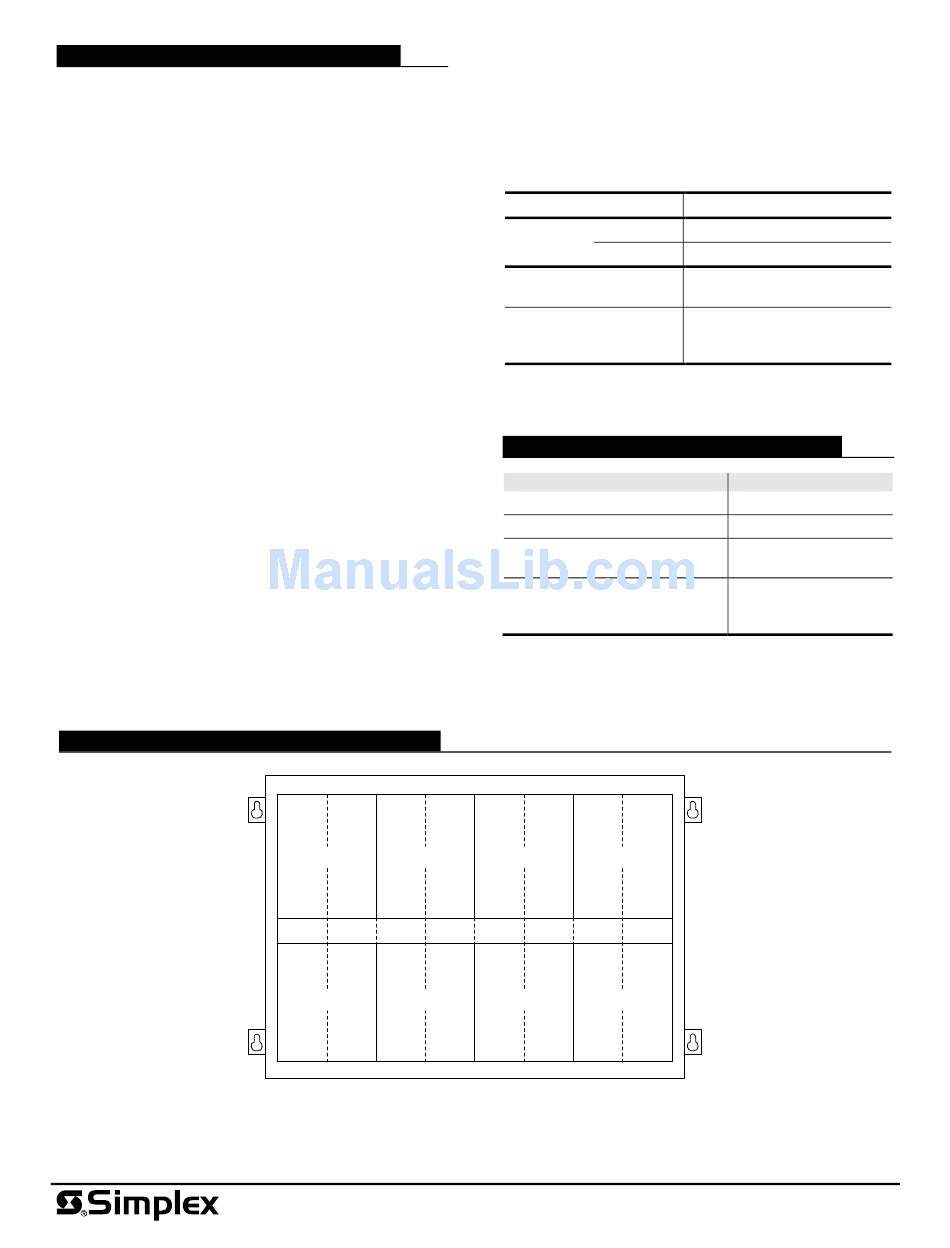

Expansion Bay Module Loading Reference
TYCO, SIMPLEX, and the product names listed in this material are marks and/or registered marks. Unauthorized use is strictly prohibited.
© 2014 Tyco Fire Protection Products. All rights reserved. All specifications and other information shown were current as of document revision date and are subject to change without notice.
Slot 1 Slot 2 Slot 3 Slot 4
Block A Block C
Block B Block D
Expansion Bay Chassis
Size Definitions: Block = 4" W x 5" H card area
Slot = 2" W x 8" H motherboard with daughter card
Tyco Fire Protection Products • Westminster, MA • 01441-0001 • USA
www.simplex-fire.com
Wiring Requirements for IDNet Communications.
Refer to the specifications chart below. Distances are for
shielded or unshielded wire. Shielded wire may provide
protection from unexpected sources of interference.
Wiring Specifications
Size
Preferred Shielded twisted pair (STP)
Type
Acceptable* Unshielded twisted pair (UTP)
Farthest Distance from
Control Panel to Device
Total Wire Length Allowed
With "T" Taps for Class B
Wiring
* Some applications may require shielded wiring. Review system
with your local Simplex product supplier.
Additional Simplex Product Reference
Product
QuickConnect2 Sensors
Standard TrueAlarm Sensors
Basic 4100ES Fire Alarm Control
Panels
Basic 4100ES Fire Alarm Control
Panels with EPS/EPS+ for
IDNAC Addressable Notification
Slot 5 Slot 6 Slot 7 Slot 8
Block E Block G
Block F Block H
2
18 AWG minimum (0.82 mm
Up to 2500 feet (762 m)
Up to 10,000 ft (3 km).
Data Sheet Reference
S4098-0034
S4098-0019
S4100-0031
S4100-0100
S4100-0039-4 2/2014
)
