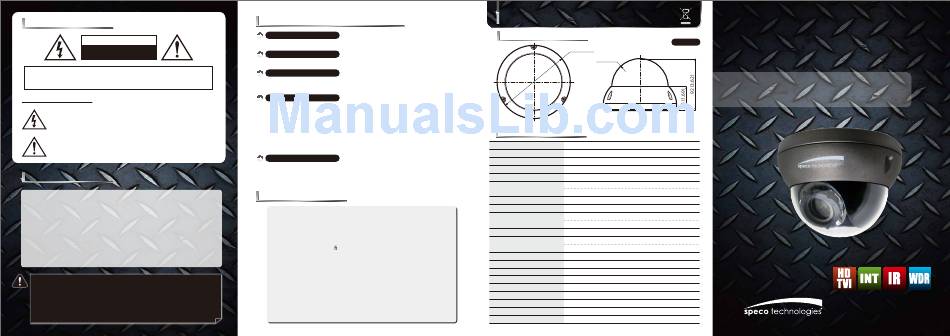

USER INFORMATION:
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION! TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Explanation of two Symbols
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and maintenance-
(servicing) instructions in the literature accompanying the appliance.
REGULATORY NOTICE:
This equipment has been tested and found to comply with limits for a
Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at
their own expense.
WARNING Changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate the equipment.
CAUTION When this camera is installed near equipment, like a wireless
communication device that emits a strong electromagnetic field,
some irregularity such as noise on the monitor screen may happen.
IMPORTANT SAFETY INSTRUCTIONS:
Read Instructions
Read all of the safety and operating instructions before using the product.
Retain Instructions
Save this manual for later use.
Cleaning
Unplug this appliance from wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Installation
Do not place this product on an unstable cart, stand, or table.
Use only with a cart or a stand recommended by your supplier / reseller.
Mounting should follow the manufacturer's instructions, and should use a
mounting accessory recommended by manufacturer.
Do not install the camera in extreme temperature conditions. Only use the
camera where temperatures are within the limits shown in the specifications
section of the user guide. Be especially careful to provide ventilation when
operating under high temperatures.
Power source
This product should be operated only from the type of power source indicated
on the marking label. If you are not sure of the type of power supplied to
your home, consult your dealer or local power company.
FEATURES:
• 1/3 inch Progressive CMOS Image Sensor
• HD-TVI 1080p @ 30fps
• Adjustable motion detection (4 areas)
• Adjustable privacy mask (10 masks)
• Flexible Intensi er® Technology (INTENSIFIER + Super IR)
• INTENSIFIER (X32)
• Digital Zoom (X12)
• SPECO DNR [ Digital Noise Reduction ]
• WDR [ Wide Dynamic Range ]
• BLC [ Backlight Compensation ]
• MIRROR
• DEFOG
• IP66 Weatherproof housing
You must be fully aware of all the distinctive
features and precautions related to this
438B www.specotech.com
camera before installing it. ( )
DIMENSIONS:
Ø130 (5.11)
R50 (1.96)
SPECIFICATIONS:
Model HTFD4T
Image Sensor 1/3 inch CMOS Image Sensor
Scanning System Progressive Image Processing
Effective Pixels 1944 (H) x 1092 (V)
Lens
2.8-12mm Motorized Focus & Zoom Lens
INTENSIFIER (Max.) : 0 .0005 Lux
Min Illumination
IR LED ON : 0.0 Lux
Backlight
OFF, WDR, BLC, HLC (ON / OFF)
Exposure
AUTO / MANUAL
ATW INDOOR (2,500°K~7,500°K) /
White Balance
ATW OUTDOOR (2,000°K~10,000°K) / MANUAL / PUSH
Day & Night Mechanical ICR Type
WDR, FLICKERLESS, SPECO DNR, ACE, DEFOG,
Functions
PRIVACY MASK, MIRROR, BLC
Shutter
ESC : AUTO
HD TVI Output
TVI output 1.0 Vp-p, 75 ohm
Resolution
1920 x 1080p / 30fps or 25fps
Analog Video [ CVBS ]
Analog Composite (1V ±0.2 Vp-p)
Coaxial Communication
Supports PELCO-C
Supply Voltage 24V AC (±20%) / 12V DC (±10%)
Power Consumption AC 600mA / DC 700mA, 8.4W (Max.)
Operating Temperature -14°F to 122°F (Heater on: -22°F to 122°F)
Storage Temperature/ Humidity -4°F to 140°F / 20% ~ 90% RH
FL E XI BLE I NT ENSI FI ER
mm (inch )
T E C H N O L O G Y
1080p HD-TVI Indoor/Outdoor
Dome Camera with Motorized Lens
HTFD4T
TVI
®
Installation and
Operation Manual
