Summary of Contents for Winco augustine

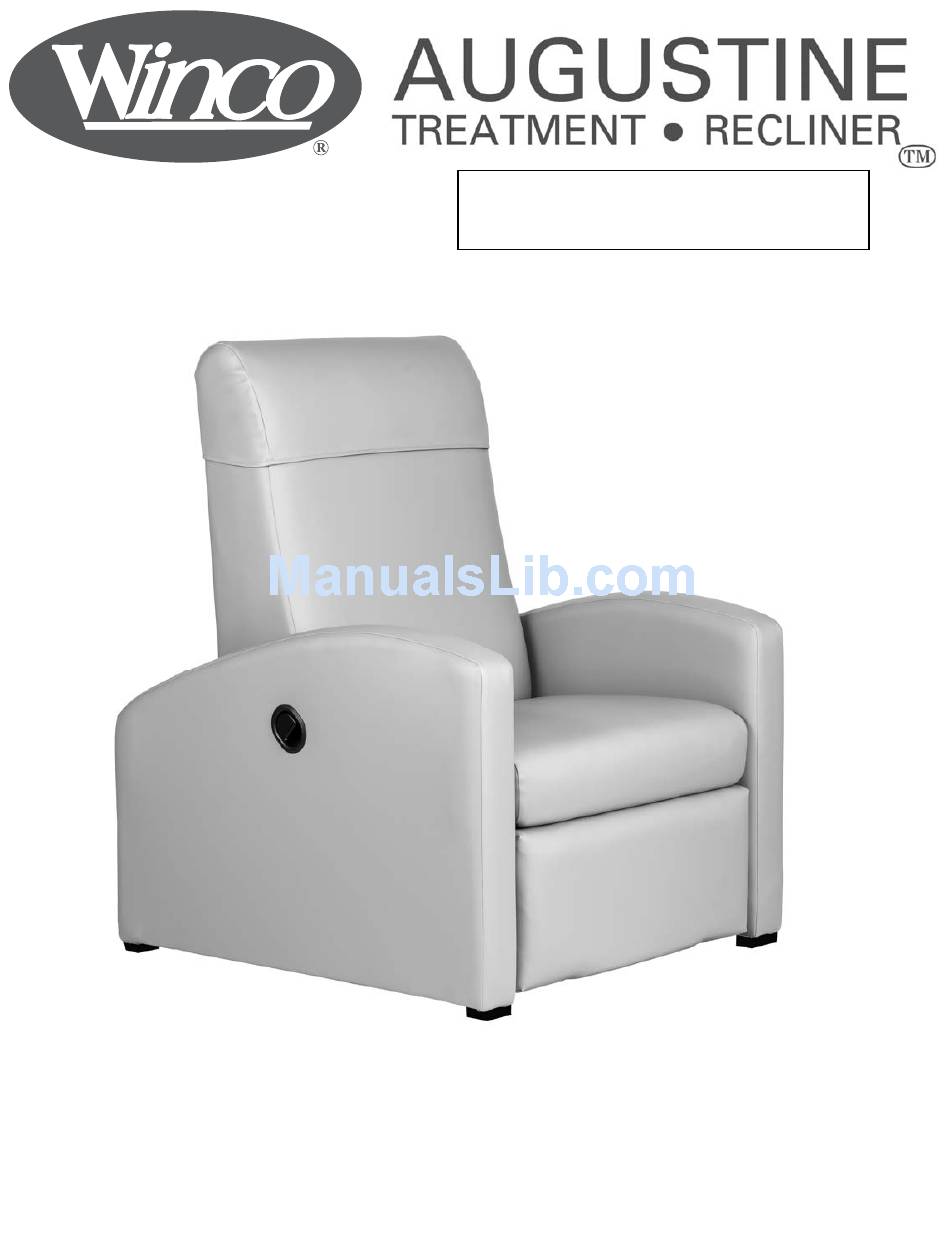

- Page 1 OWNER’S OPERATING & MAINTENANCE MANUAL PATENT PENDING PLEASE DO NOT DISCARD THIS MANUAL! KEEP FOR FUTURE REFERENCE AND TRAINING...
-
Page 2: Table Of Contents
AUGUSTINE CHAIR OPTIONS....................17 ARM COVER OPTION INSTRUCTIONS..................18-20 CONTACT & WARRANTY INFORMATION............…..BACK COVER Winco assumes no responsibility for damage or injury caused by the improper assembly, installation, use or maintenance of this product. IMPORTANT! PLEASE READ THIS ENTIRE MANUAL BEFORE USING RECLINER. DO NOT INSTALL, MAINTAIN OR OPERATE THIS EQUIPMENT WITHOUT READING AND FOLLOWING THIS MANUAL. -
Page 3: Important Safety Information
DO NOT MODIFY THE PLUG IN ANY WAY. No adapter should be used with this product. 14. For an added level of safety; Winco recommends the use of a 120 volt GFCI (ground fault circuit interrupter) out- let. - Page 4 “Class II Double-Insulated” devices. ISOLATION DIAGRAM FOR HEAT & MASSAGE SYSTEM Area Insulation Type Basic Operational Double Insulated/Reinforced Double Insulated/Reinforced Double Insulated/Reinforced Double Insulated/Reinforced Double Insulated/Reinforced Inlet FE pin only connects to inlet & pad Copyright 2014, WINCO MFG., LLC...
- Page 5 5. STAY CLEAR of the recliner mechanisms when operating chair. 6. DO NOT use recliner for transporting in or with ANY type of vehicle or trailer. Winco recliners have not been tested or approved for use by an occupant in any type of vehicle or trailer.
-
Page 6: Assembly Instructions
PREPARATION: 1. Carefully examine your product for any damage. Inspect all components. IF DAMAGE IS EVIDENT, REFUSE SHIPMENT, & CONTACT FREIGHT CARRIER OR WINCO IMMEDIATELY. 2. Remove all packaging material that was secured for shipping. 3. Carefully remove the product from the carton. - Page 7 7. Ensure that the rear apron rests OVER the rear brace of chair. IMPORTANT: • Test to ensure the back has been properly installed by pulling up on the back. The back should remain securely in place. Copyright 2014, WINCO MFG., LLC...
-
Page 8: Attendant Operating Instructions
Ensure central locking brake is engaged at all times, particularly BEFORE seating an occupant in chair, and when occupant is exiting the chair. • Never operate brakes without proper footwear. "Closed toe" shoes are recommended for operation of brake mechanism. Copyright 2014, WINCO MFG., LLC... - Page 9 NOTE: The recline lever does NOT have to be used to return legrest to its stored position. WARNING: • Attendant should NOT use foot to return the legrest to it's stored position. Damage to mechanism and upholstery may occur. Copyright 2014, WINCO MFG., LLC...
- Page 10 Seat should be secure and not move. WARNING: • Attendant should NOT attempt to seat an occupant after seat has been re-installed without first verifying the seat has been installed correctly or serious injury may occur. This section intentionally left blank Copyright 2014, WINCO MFG., LLC...
-
Page 11: Attendant Operating Instructions
IMPORTANT: • Pivot-tables have been rated for a MAXIMUM weight capacity of 20 lbs. (9.0 kg) TO REMOVE THE TABLE: 3. Loosen the adjustment knob (A) 2 full turns and lift up on pivot-table. Copyright 2014, WINCO MFG., LLC... -
Page 12: Occupant Operating Instructions
2. Press down on the legrest with legs/feet until it locks into place. NOTE: The recline lever does NOT have to be used to return legrest to its stored position. Copyright 2014, WINCO MFG., LLC... - Page 13 If switch displays a flashing light; Disconnect from wall, check all accessible wire connectors under chair for possible loose connections, then re-plug into wall and test again. • If system still does not work contact Winco customer service: 1-800-237-3377. CORD STORAGE: (Models with Heat-HT or Heat & Massage-HM) To prevent tripping on cord, damage to cord, or damage to recliner, the power cord should be coiled and stored in the "Hook &...
-
Page 14: General Maintenance
5. Remove the opposite end of gas spring by removing the cotter & clevis pin. Proceed to step 6 or 7 depending on the necessary adjustment. IMPORTANT: • DO NOT allow button on end of cylinder to depress while performing this task. Copyright 2014, WINCO MFG., LLC... - Page 15 • Winco furnishings are built to provide durable reliable service when properly cared for. In general all of our products should be 1) Cleaned 2) Rinsed 3) Allowed to air dry. It is important to note that disinfecting a product is not the same as cleaning the product.
-
Page 16: Specifications
Seat Height ......19.75" Back Height Above Seat..28.5" Seat Width (arm to arm)..25.75" Seat Depth......20.75" Overall Height ......45.75" Weight ........181lbs. Overall Width......34.5" Overall Length.......40" (With OPTIONAL Trays Up)..45.5" Overall Length Reclined..76" Maximum Weight Capacity..500 lbs. Copyright 2014, WINCO MFG., LLC... -
Page 17: Augustine Chair Options
Central Front Brake IV Pole & Attachment BE......Central Front Brake Available on LEFT, RIGHT, or BOTH sides IV........ IV Pole & Attachment ARMREST COVERS AIRX....ARMREST COVER RIGHT AILX....ARMREST COVER LEFT This section intentionally left blank Copyright 2014, WINCO MFG., LLC... -
Page 18: Arm Cover Option Instructions
Pull down tight for best fit. 4. Fit the rear portion of the Armrest cover over the rear of the arm. 5. Smooth wrinkles. 6. Make sure openings align with release handle. This section intentionally left blank Copyright 2014, WINCO MFG., LLC... - Page 19 5. Fit the rear portion of the Armrest cover over the rear of the arm. 6. Gently insert pivot table into bracket. 7. Tighten knob. Copyright 2014, WINCO MFG., LLC...
- Page 20 IV bracket. 4. Reattach the bracket using the screw that was removed in step 1. Tighten both screws. This section intentionally left blank Copyright 2014, WINCO MFG., LLC...
- Page 21 OTHER PRODUCTS SUPPLIED BY WINCO Model 6Y48-xx-xx-xx-D6 Shown PLEASE DO NOT DISCARD THIS MANUAL! KEEP FOR FUTURE REFERENCE AND TRAINING LEASE DO NOT DISCARD T IS ANUAL OR UTURE RE ERENCE AND TRAINING Copyright 2014, WINCO MFG., LLC...
- Page 22 OTHER PRODUCTS SUPPLIED BY WINCO Copyright 2014, WINCO MFG., LLC...
- Page 23 Copyright 2014, WINCO MFG., LLC...
-
Page 24: Limited Warranty
TERMS Winco Mfg., LLC. warrants this product to be free of manufacturer’s defects in material and workmanship, provided that the product is used ac- cording to normal operating conditions and proper maintenance intended by manufacturer. This warranty is available only to the original retail purchaser, is non-transferable and commences on the date of retail sale;...
