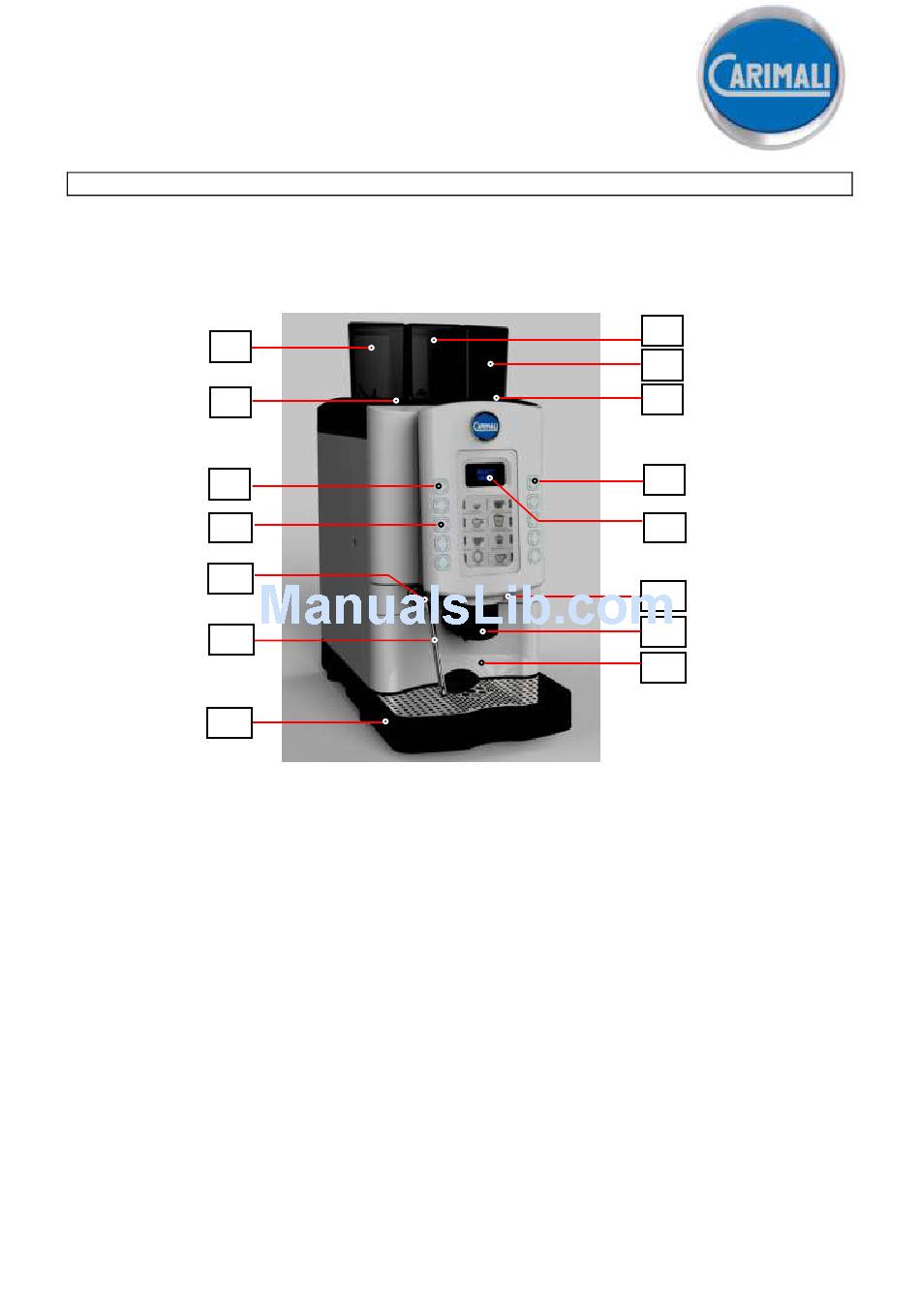

QUICK START MANUAL – ARMONIA SOFT

LEGEND

1 PRODUCT CANISTER

2 PRODUCT CANISTER / COFFEE HOPPER

3 COFFEE HOPPER

4 CARD READER

5 DECAFFEINATED DOOR

6 SHIFT BUTTON

INFO BUTTON

DOSE BUTTON

9 DISPLAY

10 RUBBER PROTECTION

11 DOOR LOCK

12 STEAM WAND

13 ADJUSTABLE DELIVERY OUTLETS

14 DRIP TRAY

15 GROUNDS BIN

Only for US market (ETL Sanitation): The equipment shall be installed with backflow protection to

comply with applicable federal, state and local codes.

MACHINE DESCRIPTION

Table of Contents

Need help?

Do you have a question about the ARMONIA SOFT and is the answer not in the manual?

Questions and answers

Summary of Contents for Carimali ARMONIA SOFT

Page 1 QUICK START MANUAL – ARMONIA SOFT MACHINE DESCRIPTION LEGEND 1 PRODUCT CANISTER 2 PRODUCT CANISTER / COFFEE HOPPER 3 COFFEE HOPPER 4 CARD READER 5 DECAFFEINATED DOOR 6 SHIFT BUTTON INFO BUTTON DOSE BUTTON 9 DISPLAY 10 RUBBER PROTECTION 11 DOOR LOCK...
Page 2 STARTING UP After checking that the ground bin and the drip tray are inserted, power ON the machine by means of the main switch inside the machine and then close the front door. (pic. A) keep key SHIFT pressed and then press key INFO, (pic. B) and the machine will set itself to ON state. A) Power on the machine by means the main switch Inside the machine .
Page 3 FILL IN BEAN HOPPER AND CANISTER Fill in the required amount for daily consumption in order to keep coffee and product always fresh. DISPLAY THE AVAILABLE DRINKS SELECTION AND BOILERS TEMPERATURE Press the INFO key with the machine in SELECT DRINK mode to display the available drinks selection : B1 ESPRESSO BLACK COFFEE B2 B3 CAPPUCCINO...
Page 4 DISPENSING 1) COFFEE/CAPPUCCINO/CHOCO DISPENSING For Waiters’ Card place the Smart Card above the proper reader before pressing the dose key. Adjust the coffee dispenser to the correct height and place a cup under it, then press the desired dose key. XXXXXXXX Where “XXXXXXXX”...
Page 5 STEAM WAND USE AND CLEANING STEAM WAND NOT AVAILABLE FOR MACHINE IN SELF CONFIGURATION 1► Before using the steam wand press 2► Use the steam wand to foam or 3► Press the steam button to stop the the steam button to purge the nozzle. delivery before removing the jug.
Page 6: Group Cleaning
AUTOMATIC CLEANING OF POWER CLEANER -COFFEE GROUP- MIXER - MILK FROTHER - STEAM BOILER AT THE END OF EACH WORKING DAY , AND/OR IN CASE THE MACHINE WILL NOT BE USED SOME TIME, WE STRONGLY RECOMMEND TO CARRY OUT AUTOMATIC CLEANING OF THE COFFEE GROUP ,THE MIXER AND THE MILK FROTHER. 1►Keep (Shift) key pressed for five 2►...
Page 7 11► Close the front door 10► Open the front door -1-, insert the 12► Wait the end of the group cleaning cycle delivery. detergent tablet into the brewing chamber -2- GROUP CLEANING GROUP CLEANING GROUP CLEANING INSERT CLEANSER INSERT CLEANSER ENDS IN XX Sec.
Page 8: Milker Cleaning
19► Press (N°7) key to start the milker cleaning cycle. MILKER CLEANING ENDS IN XX Sec. 20► AT THE END OF THE MILKER CLEANING CYCLE THE DISPLAY WILL SHOW : MILKER CLEANING REPEAT CLEAN USING ONLY WATER PRESS B7 TO START Put the milk infeed pipe into a glass of cold water Press (N°7) key the milk frother will start dispensing another cleaning cycle only with water.
Page 9: Cleaning Tablets
Only in case that after the automatic cleaning process of the coffee outlet or the milk frother are not properly dispensing, carry out a manual cleaning; see the following steps. FOR CLEANING OPERATIONS , CARIMALI STRONGLY RECOMMEND TO USE THE FOLLOWING DETERGENT PRODUCTS: CLEANING TABLETS...
Page 10: Manual Cleaning Of Milk Frother And Coffee Outlet
MANUAL CLEANING OF MILK FROTHER AND COFFEE OUTLET 2► Remove the milk frother from the 1► Remove the coffee outlet from its holder . coffee outlet and disconnect Silicone tubes No. -3- and -4. 4► Disassemble the milk frother in all its 5►...
Page 11 MANUAL CLEANING OF MIXER WE STRONGLY RECOMMEND CLEANING THE MIXERS ONCE A DAY 1► Open the machine door 2► Remove the pipe from the mixer 3► Turn the flange 1 anticlockwise, then remove the mixer 2 5► Rinse the Mixer and the Decanter 4►...
Page 12: Other Recommended Cleaning
OTHER RECOMMENDED CLEANING DRIP TRAY CLEANING GROUDS BIN CLEANING Once a day rinse the drip tray in a Once a day rinse the grounds bin in a sink. sink. HOPPER CLEANING DISPENSER CLEANING a) Turn the screw on the top of the a) Open the front door and b) Place the provided cap on the machine anticlockwise and then...
Page 13 CHUTES CLEANING a) Open the decaffeinated door and b) Once a week clean the c) Once a week clean the coffee chute by remove the chute . decaffeinated chute by means of a means of a brush and approved food brush and approved food detergent detergent...
Page 14 GRINDERS ADJUSTMENT a) Turn the screw on the top of the b) Move the adjustment to the right to c) Reinsert the hopper and lock it by machine behind the hopper get coarse coffee powder, to the left turning the screw clockwise. anticlockwise and then remove the for finer.
Page 15: Machine Functions Messages
MACHINE FUNCTIONS MESSAGES 1) Alarm for machine door position OPEN DOOR Cause: the front door is open; the micro switch does not touch the door Result: shutdown of the machine functions Solution: press Info key, the display shows: CLOSE FRONT PANEL OPEN DOOR Close the door and turn the machine ON.
Page 16 After 10 seconds the display shows : SELECT DRINK GROUNDS BIN OPEN Press Info key, the display shows: CLOSE THE GROUNDS BIN GROUNDS BIN OPEN Reinsert the grounds bin into its housing. 3) Message of missing coffee SELECT DRINK MISSING COFFEE Cause: there is no coffee into the hopper and therefore into the brewing chamber Result:...
Page 17 4) Message of missing decaffeinated SELECT DRINK MISSING DECAF. Cause: Missing coffee in the decaffeinated door and in the brewing chamber Result: The machine interrupts the decaffeinated dispensing selections Solution : press Info key, the display shows: INSERT DECA COFFEE POWNDER 7/8 gr.
Page 18: Drip Tray Full
6) Message of drip tray full The display will show the following message: SELECT DRINK DRIP TRAY FULL Cause: the drip tray is full, the quantity of water inside the drip tray touches the level probe. Result: shutdown of the dispensing keys. Solution: press Info key, the display shows: EMTY THE DRIP TRAY DRIP TRAY FULL...
Page 19: Access The Main Setting Menus With Password Or Smart-Card
ACCESS THE MAIN SETTING MENUS WITH PASSWORD OR SMART-CARD A) ACCESS THE MAIN SETTING MENUS WITH PASSWORD To enter the programming environments a password is required, it defines the access rights to the different environments. The password must consist of 5 digits. To insert the password proceed as follows: Turn the machine OFF Keep “SHIFT”...
Page 20 Keep “SHIFT” key pressed for 5 seconds, the display shows the main menu programming environments as above described. Carimali S.p.A. con socio unico Via Industriale, 1 - 24040 Chignolo d'Isola (BG) - Italia T: +39 035 4949555 F: +39 035 905447 www.carimali.com –...
