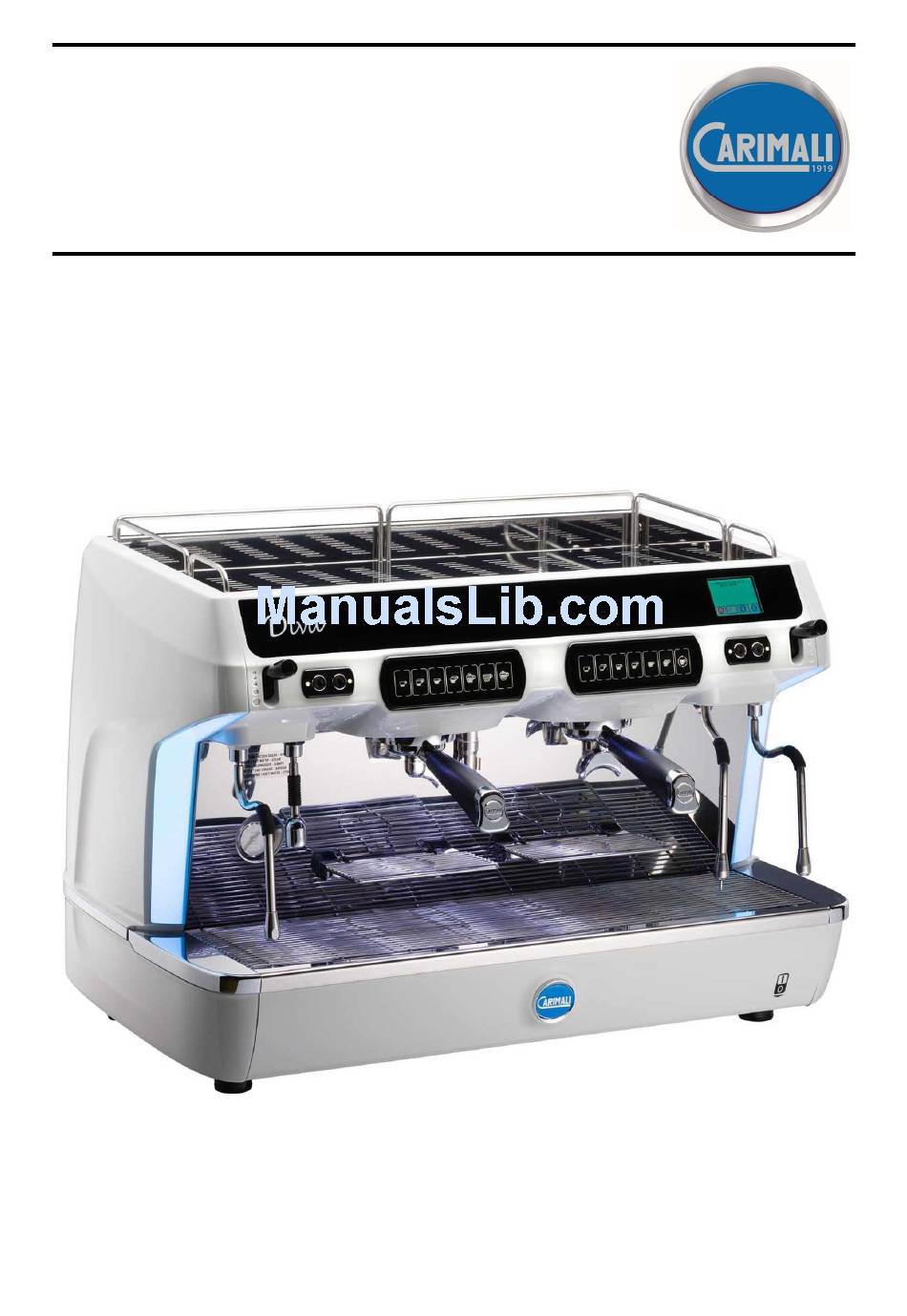

- Page 1 QUICK START GUIDE DIVA NT-05414-01-EN...
- Page 2 STARTING UP • Turn on the tap from the water mains and switch the power ON by pressing the main switch located bottom right underneath the machine. • The machine will automatically go into OFF state, the message displayed will be: 2015-FEB-16 TUE 04:54 •...
- Page 3 • Afterwards the keypad lights will be off and heating of the boiler starts. Please wait about 15 minutes to reach the set temperature 2015-FEB-16 TUE 04:54 BOILER HEATING • HEATING UP: LM Version: during the warming up, the milker solenoid valve will stay open from 0°c to 95°c and the barista steam wand from 50°C to 95°C.
- Page 4 • The machine will be ready when the boiler temperature is reached, the display shows: 2015-FEB-16 TUE 04:54 SELECT DRINK • The Info section of the menu indicates following data: 2015-FEB-16 TUE 04:54 TEMPERATURE 124 °C STEAM 1,2 bar STEAM 77 °C GROUP 1 77 °C GROUP 2 CUP WARMER MID...
-
Page 5: Cup Warmer
CUP WARMER Press to access to the cup warmer menu The display shows: 2015-FEB-16 TUE 04:54 2015-FEB-16 TUE 04:54 SELECT DRINK SELECT DRINK Select the cup wermer temperature profile between: Press to get to cup warmer temperature profile • FULL 2015-FEB-16 TUE 04:54 SELECT DRINK •... - Page 6 LIGHTS Press to access to the lights menu Press to turn ON or OFF the side lights 2015-FEB-16 TUE 04:54 2015-FEB-16 TUE 04:54 SELECT DRINK SELECT DRINK...
-
Page 7: Data Description
INFO The display shows the following data: Press to access to machine Info data 2015-FEB-16 TUE 04:54 2015-FEB-16 TUE 04:54 SELECT DRINK TEMPERATURE XX °C STEAM YY bar STEAM ZZ °C GROUP 1 SS °C GROUP 2 CUP WARMER VVV DATA DESCRIPTION •... - Page 8 DISPENSING COFFEE DISPENSING: place a cup under the dispenser and press one of the coffee dose keys MACHINE KEYPADS DIVA COF 2GR Gr. 1 keypad Gr. 2 keypad MACHINE KEYPADS DIVA LM 2GR Gr. 1 keypad Gr. 2 keypad HOT WATER DISPENSING: place a cup under the hot water nozzle and press the Tea / Hot water keys...
- Page 9 • DISPENSING EXTRAMILK (ONLY LM MACHINES): If enabled in program menu, keep pressed any Milk - based drink, release the key to interrupt the delivery • The display will show: 2015-FEB-16 TUE 04:54 H2O: SELECT DRINK Gr1: EXTRAMILK Gr2: SELECT DRINK Bar: SELECT DRINK...
- Page 10 DISPENSING STEAM: warm up drinks (milk, cognac, etc) as follows, slowly pull down the steam lever, and then dip the nozzle into the drink Before using the steam wand pull down Use the steam wand to foam or heat After using the steam wand pull down the steam lever to purge the nozzle any liquid into the jug, by handling the the steam lever to purge the nozzle...
- Page 11 BARISTA STEAM WAND USE AND CLEANING USE OF THE BARISTA STEAM WAND Before using the barista steam wand, After using the barista steam wand, Press the button (steamed milk) keep the button pressed to purge the keep the button pressed to purge the nozzle nozzle (foamed milk) to activate the...
- Page 12 CLEAN THE BARISTA STEAM WAND CLEAN THE BARISTA STEAM WAND Remove the nozzle and the end part of Clean by using the provided brush, a Clean the inner part of the barista Clean the inner part of the barista the barista steam wand to clean the cloth is also recommended steam wand by using a cloth steam wand by using a cloth...
- Page 13 AUTOMATIC AND MANUAL CLEANING OF MILK FROTHER AUTOMATIC CLEANING Take the milk feeding tube out of the Prepare a solution of water and Insert the milk feeding tube into a milk box detergent (q.ty 500 ml) by following the container with detergent instructions indicated in the product label Press Clean key to access into the cleaning menu...
-
Page 14: Manual Cleaning
MANUAL CLEANING Remove the milk frother from its holder Disassemble the milk frother in all its Reassemble milk frother parts (first by turning and then by indicated in the assembling instructions pulling as shown in the picture) and wash it either by hand or in a dishwasher. - Page 15 AUTOMATIC AND MANUAL GROUP CLEANING AUTOMATIC CLEANING Select one of the two group cleaning options and confirm by Perform the following operations with the machine ON. pressing enter. 2015-FEB-16 TUE 04:54 2015-FEB-16 TUE 04:54 SELECT DRINK CLEANING GROUP 1 CLEANING GROUP 2 CLEANING MILKER CLEANING Leds of the related keyboard start flashing...
-
Page 16: Cleaning Tablets
MANUAL CLEANING PLEASE NOTE: WE ALSO RECOMMEND TO USE THE SPECIAL BRUSH (CODE N° 95.01773) SUPPLIED WITH THE MACHINE, TO ELIMINATE COFFEE RESIDUES FROM THE FILTERS AND SHOWERS CLEANING THE FILTER HOLDERS Carry out the following operations: - We recommend to use the special brush (code N° 95.01773) supplied with the machine, to eliminate coffee residues from the filters and showers - Remove the filters from the filter holders and wash both parts under running water - Remove the remaining coffee by using a cloth... -
Page 17: Access The Main Setting Menus With Password
SELECT INFO-RESET DOSE-PROGRAMMING SYSTEM MANAGER Carimali S.p.A. con socio unico Via Industriale, 1 unico Via Industriale, 1 - 24040 Chignolo d'Isola (BG) - Italia Italia T: +39 035 4949555 F: +39 035 905447 T: +39 035 4949555 F: +39 035 905447 www.carimali.com –...
