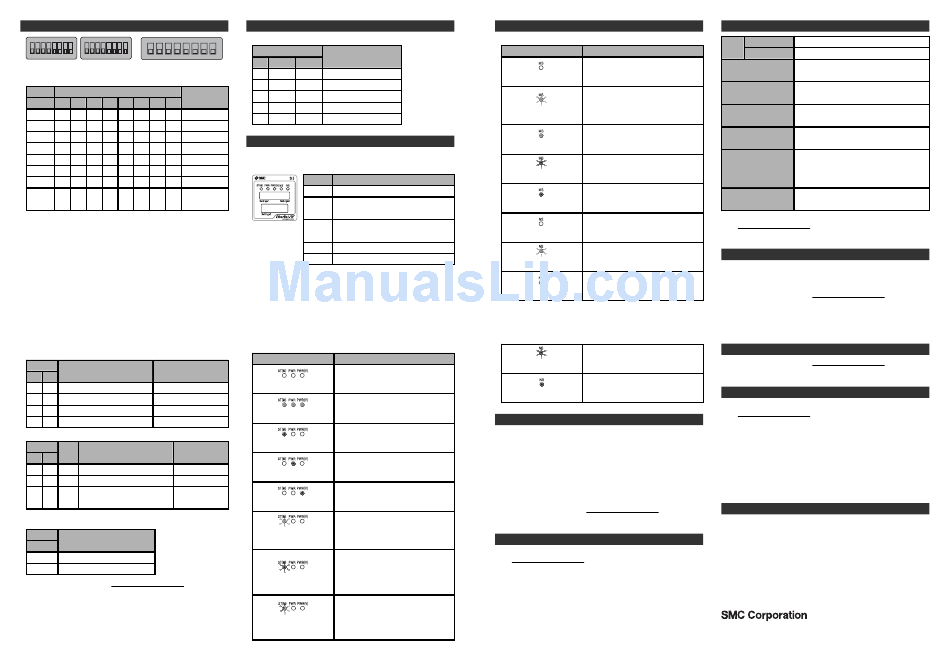

Setting and Adjustment
ON ON ON
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6
Settings1 Settings2 Settings3
•IP address setting switch
Settings1 Settings2
IP address
8 1 2 3 4 5 6 7 8
OFF ON OFF OFF OFF OFF OFF OFF OFF 192.168.0.1
: : : : : : : : :
OFF OFF ON ON ON ON ON ON ON 192.168.0.254
ON ON OFF OFF OFF OFF OFF OFF OFF 192.168.1.1
: : : : : : : : :
ON OFF ON ON ON ON ON ON ON 192.168.1.254
DHCP mode
ON/OFF ON ON ON ON ON ON ON ON
Remote Control
ON/OFF OFF OFF OFF OFF OFF OFF OFF OFF
mode
∗1: The mode to obtain IP address from DHCP server. Obtained IP address is
lost when the power supply is cut.
∗2: The mode to respond to the commands from the BOOTP/DHCP Server
provided by Rockwell Automation.
Enable DHCP: IP address etc. can be obtained from BOOTP/DHCP Server.
If the power is supplied again in this state, information
including IP address is obtained again.
Disable DHCP: IP address etc. cannot be obtained from BOOTP/DHCP
Server.
If the power is supplied again with this condition, previous
setting can be held.
•V_SEL switch: The number of outputs (size) occupied by the SI unit is
selected.
Settings3
Content SI unit output data size
1 2
OFF OFF Number of valves = 32 outputs 4 byte (Default setting)
OFF ON Number of valves = 24 outputs 3 byte
ON OFF Number of valves = 16 outputs 2 byte
ON ON Number of valves = 8 outputs 1 byte
•Diagnostics switch: Allocates the diagnostic data to the input data.
Settings3
Diagnostic size set
Mode Content
for the input
3 4
OFF OFF 0 Input data only (Default setting) 0 byte
OFF ON 1 Input data + System diagnosis 4 byte
Input data + System diagnosis +
ON OFF 2 6 byte
Unit diagnosis (Up to 10 units)
•HOLD/CLEAR switch: Sets the output status when the fieldbus has a
communication error or is in idling.
Settings3
Content
5
OFF Output is OFF. (Default setting)
ON Holds the output.
Refer to the SMC website (URL http://www.smcworld.com) to obtain
more detailed information about setting and adjustment.
Setting and Adjustment (Continued)
•EtherNet/IP communication setting switch.
TM
Settings3
Communication speed full
7 8
duplex/half duplex setting
6 7 8
OFF ON/OFF ON/OFF Automatic
ON OFF OFF 10 Mbps, half duplex
ON OFF ON 10 Mbps, full duplex
ON ON OFF 100 Mbps, half duplex
ON ON ON 100 Mbps, full duplex
:
LED Display
The status display LED displays the power supply and communication
:
status.
Display
∗1
ST(M) Displays the diagnostic status of the unit.
∗2
Displays the status of the power supply
PWR
voltage for control and input.
Displays the status of the power supply
PWR(V)
voltage for outputs.
MS Displays the module status.
NS Displays the network status.
•SI unit common status
LED display
The power supply for control and input is
OFF.
OFF.
The unit is in normal operation.
Green LEDs are ON.
A component failure inside the SI unit.
Red ST(M) LED is ON.
The power supply voltage for control and
input is abnormal.
Red PWR LED is ON.
The power supply voltage for output is
abnormal.
Red PWR(V) LED is ON.
A unit other than the SI unit has been
Green ST(M) LED is detected.
flashing.
Either of the following conditions:
•The valve ON/OFF counter has
exceeded the set value.
Red ST(M) LED is flashing. •The valve is short circuited or
disconnected.
Either of the following conditions:
•Connection error between units has
occurred.
Red/Green ST(M) LED is
•Configuration memory error has
flashing alternately.
occurred.
LED Display (Continued)
•EtherNet/IP TM status
LED display
MS LED is OFF.
Green MS LED is flashing.
Green MS LED is ON.
Red MS LED is flashing.
Content
Red MS LED is ON.
NS LED is OFF.
Green NS LED is flashing.
Green NS LED is ON.
Content
Red NS LED is flashing.
Red NS LED is ON.
Maintenance
•Maintenance should be performed according to the Safety Instructions.
•Perform regular maintenance and inspections.
There is a risk of unexpected malfunction.
•Do not use solvents such as benzene, thinner etc. to clean each unit.
They could damage the surface of the body and erase the markings on
the body.
Use a soft cloth to remove stains.
For heavy stains, use a cloth soaked with diluted neutral detergent and
fully squeezed, then wipe up the stains again with a dry cloth.
Refer to the SMC website (URL http://www.smcworld.com) to obtain
more detailed information about maintenance.
Troubleshooting
Refer to the LED Display. Refer to the SMC website
(URL http://www.smcworld.com) to obtain more detailed information
about troubleshooting.
Specification
Control and input
Power
Content
supply
Output
The power supply for control and input is
Connected load
OFF.
Operating temperature
Either of the following conditions:
range
•The unit has not been configured
correctly.
Storage temperature
•Fieldbus is idling.
range
Pollution degree
The unit is in normal operation.
Recoverable error. Vibration resistance
A component failure inside the SI unit.
Impact resistance
Refer to the product catalogue or SMC website
The power supply for control and input is
(URL http://www.smcworld.com) to obtain more detailed information
OFF, or IP address is not set.
about product specifications.
The unit received an IP address, but
Commissioning
connection is not established.
•Parameter Setting
•Hardware Configuration (EDS file)
•I/O Map
Connection is established.
Refer to the SMC website (URL http://www.smcworld.com) to obtain
more detailed information about these settings.
Diagnostic
Connection timeout.
Refer to the SMC website (URL http://www.smcworld.com) to obtain
more detailed information about diagnostics.
IP address is duplicated.
Outline with Dimensions
Refer to the product catalogue or SMC website
(URL http://www.smcworld.com) to obtain more detailed information
about outline dimensions.
