Section 3 - Configuration

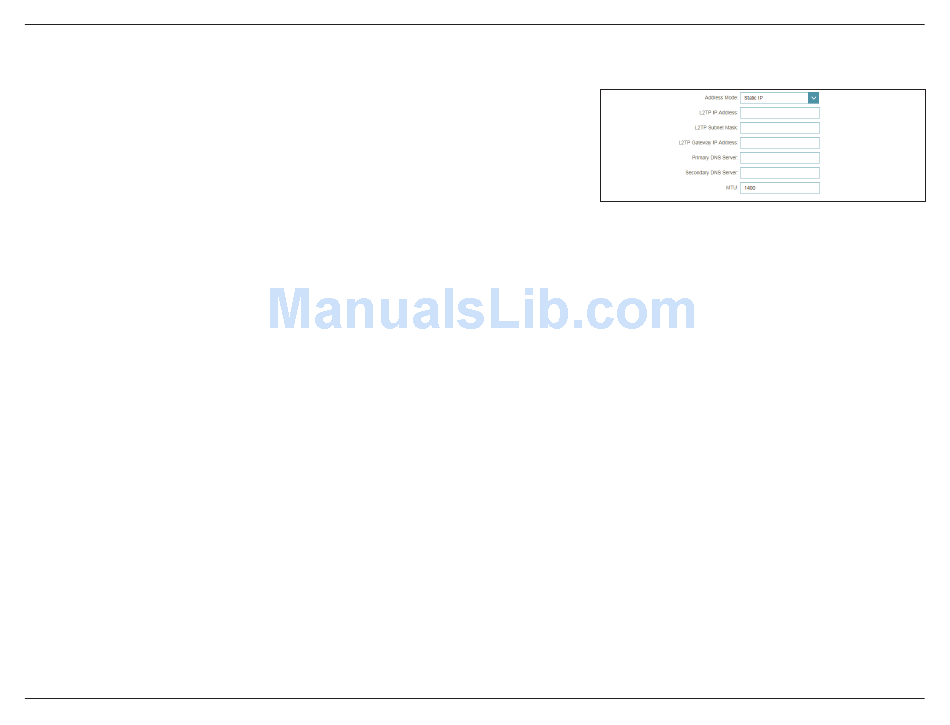

If you selected Static IP as the Address Mode:
L2TP IP Address: Enter the IP address provided by your ISP.
L2TP Subnet Enter the subnet mask provided by your ISP.
Mask:
L2TP Gateway IP
Enter the gateway IP address provided by your ISP.
Address:
Primary DNS Enter the primary DNS server IP address assigned by your ISP.
Server:
Secondary DNS Enter the secondary DNS server IP address assigned by your ISP.
Server:
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
Click Save when you are done.
D-Link COVR-C1203 User Manual
L2TP (continued)
