Table 16: System 450 Web UI Sensor Configuration Page User Actions, Descriptions, and References (Part
1 of 3)
Callout Identifier / Item
Number Name
1 Logout and
Configuration
Buttons
2 Site Name
3 Sn-1: Sensor 1
4 Sensor Type
(Sn-1)
System 450™ Series Control Module with Ethernet Communications Installation Instructions

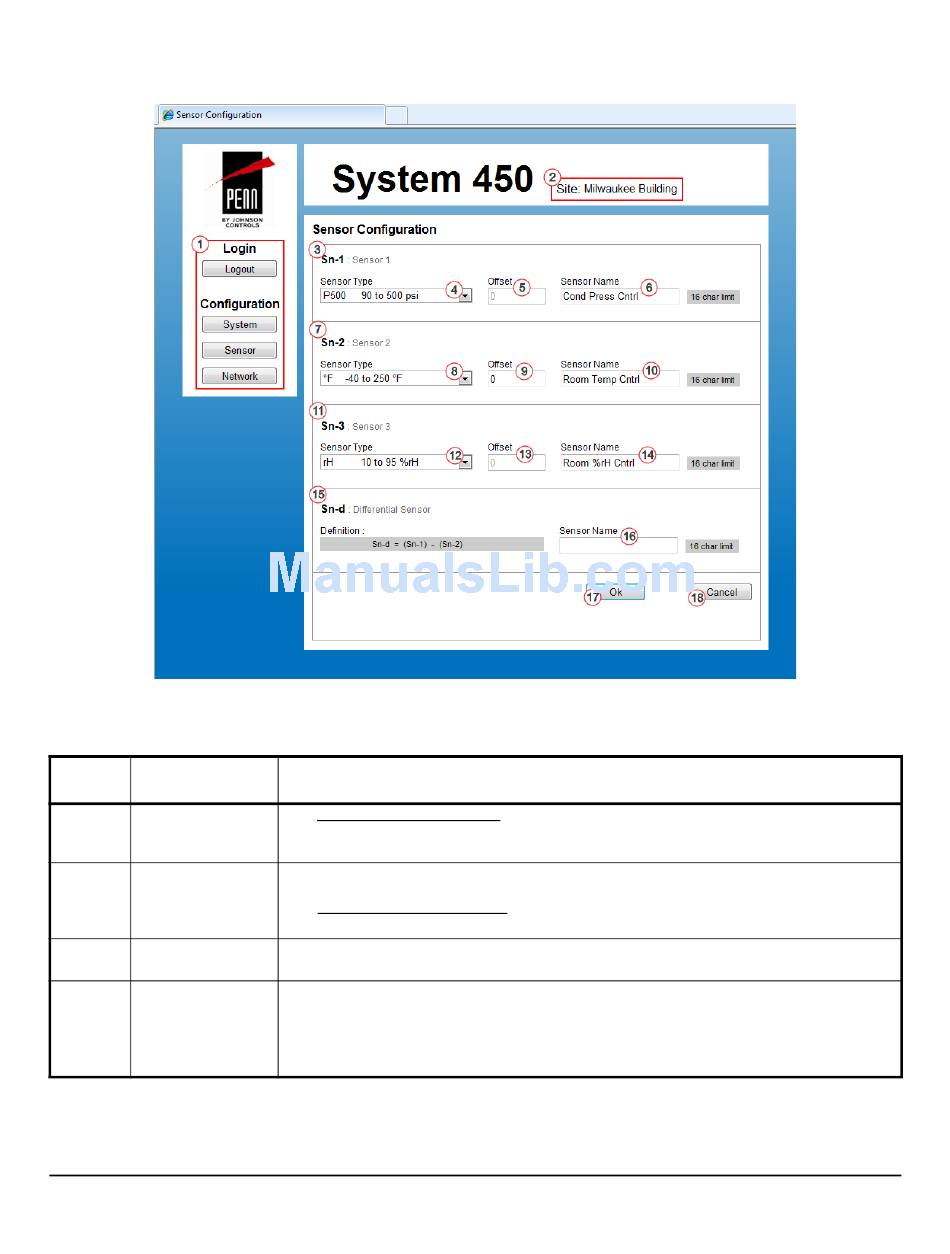

Figure 10: System 450 Sensor Configuration Page Example
User Actions, Descriptions, References
See System Configuration Page on page 35 for descriptions and user actions regarding the
System, Sensor, and Network buttons.
Displays the assigned site name. You can assign a website name on the Network
Configuration page.
See Network Configuration Page on page 47 for more information about assigning a site
name.
Sensor 1 Configuration Section: Select the Sn-1 sensor type, select an offset value (only if
Sn-1 is a temperature sensor), and assign a name for Sn-1.
Click the drop-down menu arrow to select the desired sensor type for Sn-1. The selected
sensor type provides the condition, the units of measurement, range of usable values,
resolution increments, and minimum proportional or control band for each output that
references Sn-1.
In this example, the P 500 sensor type is selected for Sn-1.
