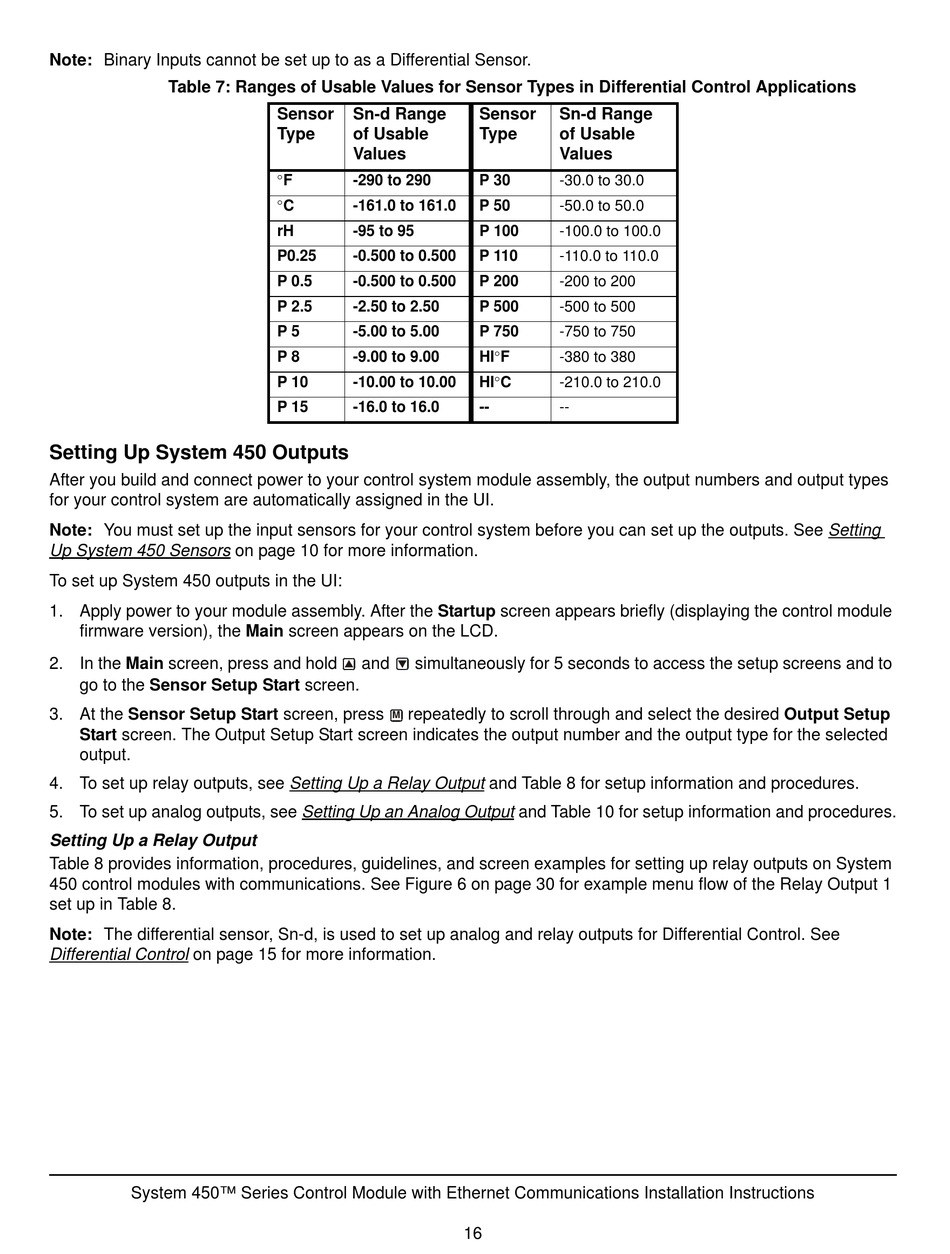

Note: Binary Inputs cannot be set up to as a Differential Sensor.
Table 7: Ranges of Usable Values for Sensor Types in Differential Control Applications

Setting Up System 450 Outputs

After you build and connect power to your control system module assembly, the output numbers and output types
for your control system are automatically assigned in the UI.
Note: You must set up the input sensors for your control system before you can set up the outputs. See Setting
Up System 450 Sensors on page 10 for more information.
To set up System 450 outputs in the UI:
1. Apply power to your module assembly. After the Startup screen appears briefly (displaying the control module
firmware version), the Main screen appears on the LCD.
2. In the Main screen, press and hold
go to the Sensor Setup Start screen.
3. At the Sensor Setup Start screen, press
Start screen. The Output Setup Start screen indicates the output number and the output type for the selected
output.
4. To set up relay outputs, see Setting Up a Relay Output and Table 8 for setup information and procedures.
5. To set up analog outputs, see Setting Up an Analog Output and Table 10 for setup information and procedures.
Setting Up a Relay Output
Table 8 provides information, procedures, guidelines, and screen examples for setting up relay outputs on System
450 control modules with communications. See Figure 6 on page 30 for example menu flow of the Relay Output 1
set up in Table 8.
Note: The differential sensor, Sn-d, is used to set up analog and relay outputs for Differential Control. See
Differential Control on page 15 for more information.
System 450™ Series Control Module with Ethernet Communications Installation Instructions
Sensor
Sn-d Range
Type
of Usable
Values
F
-290 to 290
C
-161.0 to 161.0
rH
-95 to 95
P0.25
-0.500 to 0.500
P 0.5
-0.500 to 0.500
P 2.5
-2.50 to 2.50
P 5
-5.00 to 5.00
P 8
-9.00 to 9.00
P 10
-10.00 to 10.00
P 15
-16.0 to 16.0
and
simultaneously for 5 seconds to access the setup screens and to
repeatedly to scroll through and select the desired Output Setup
M
Sensor
Sn-d Range
Type
of Usable
Values
P 30
-30.0 to 30.0
P 50
-50.0 to 50.0
P 100
-100.0 to 100.0
P 110
-110.0 to 110.0
P 200
-200 to 200
P 500
-500 to 500
P 750
-750 to 750
HIF
-380 to 380
HIC
-210.0 to 210.0
--
--
16
