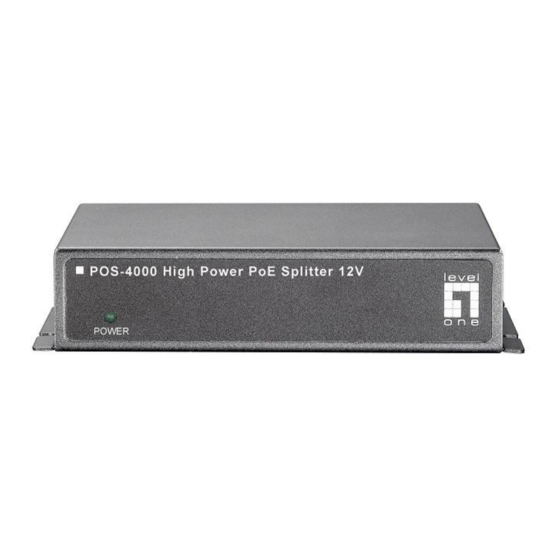

High Power PoE Splitter 12V
POS-4000 is a high power PoE Splitter 12V for use in Power over Ethernet systems.
(data + power) port and Output (data only) port, POS-4000 may split power from existing LAN cable and
convert up to 12VDC/2.5A
Phones. The internal current limit, short-circuit and overload protection are implemented to provide up to
12VDC/2.5A for use of DC output power.
POS-4000 can work in pair with POI-4000, a high power PoE Injector, to deliver up to 12VDC/2.5A for use of
high power devices. POS-4000 itself is powered by POI-4000 and so requires no separate power connection
in the middle of the cable, making it extremely easy to connect and power IP cameras.
Advantages:
12VDC 2.5A High Power PoE Power Splitter
Split Power Over Ethernet (POE) to remote devices
Ethernet 100Mbps Wire Speed
Simple to install – Plug & Play

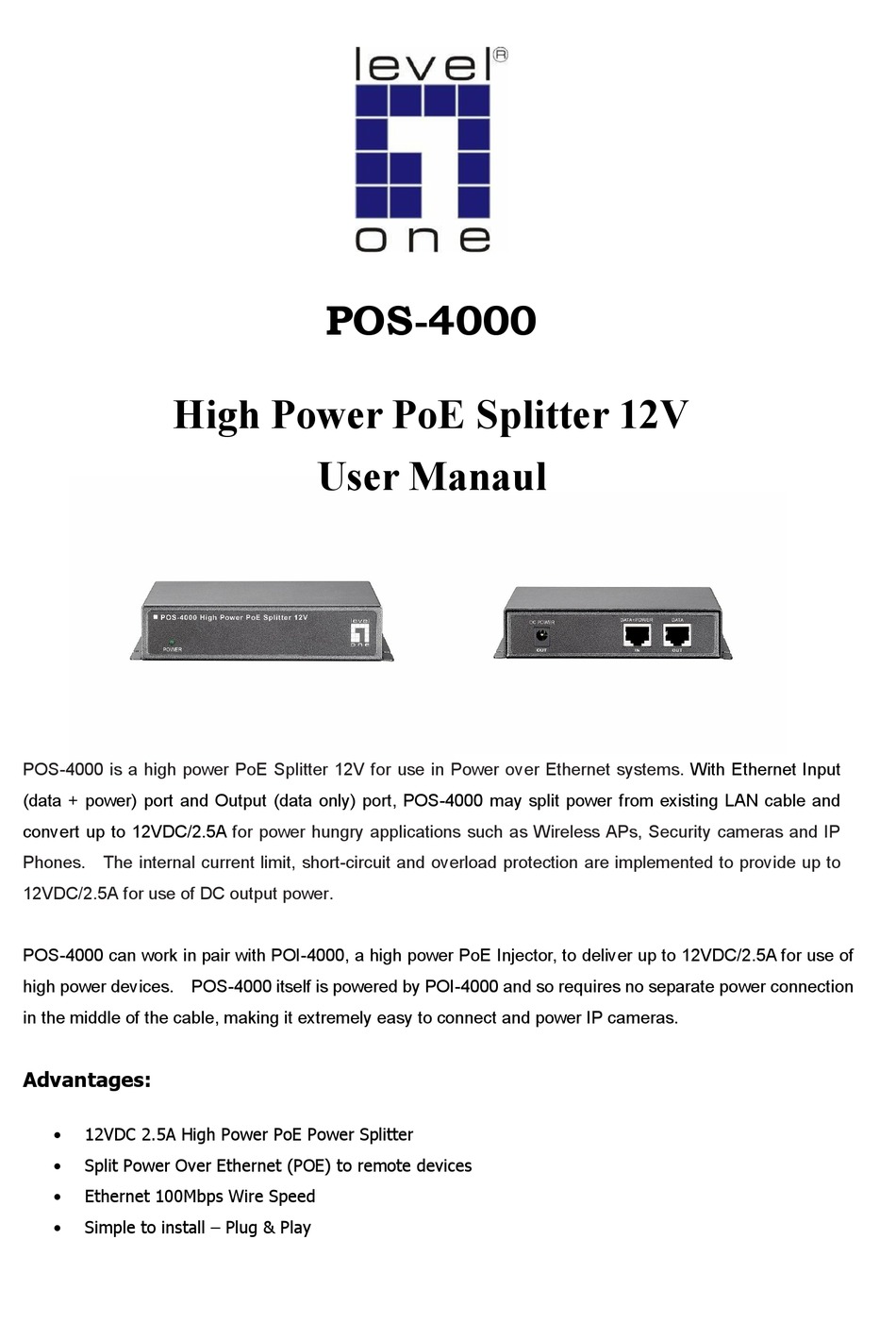

POS-4000
User Manaul
for power hungry applications such as Wireless APs, Security cameras and IP
With Ethernet Input

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POS-4000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LevelOne POS-4000

  • Page 1 12VDC/2.5A for use of DC output power. POS-4000 can work in pair with POI-4000, a high power PoE Injector, to deliver up to 12VDC/2.5A for use of high power devices. POS-4000 itself is powered by POI-4000 and so requires no separate power connection in the middle of the cable, making it extremely easy to connect and power IP cameras.
  • Page 2: Application Diagram

    WxDxH: 120 x 90 x 28 (mm) Operating Environment:  Humidity: 5% to 90% non-condensing  Temperature: 0 ~ 50 degree C Application Diagram: POI-4000 PoE Injector & POS-4000 PoE Splitter 100 m 12VDC 2.5A Non PoE Switch Non PoE PD Power (Maximum)
  • Page 3 Data Receive Data Receive Data Receive Data Receive DataTransmit Data Transmit -Vdc_return(+) Feeding power(+) Not Connected -Vdc_return(+) Feeding power(+) Not Connected Data Transmit Data Transmit -Vdc Feeding power(-) Not Connected -Vdc Feeding power(-) Not Connected V1.0...
