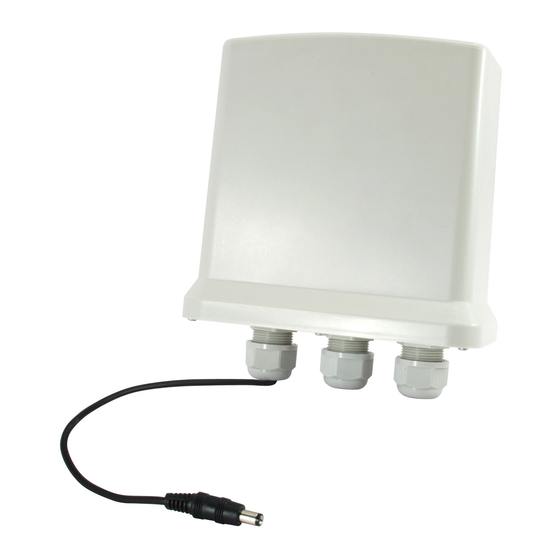

POS-4001 is an outdoor high power PoE Splitter 12V for use in Power over Ethernet systems.
With Ethernet
Input (data + power) port and Output (data only) port, POS-4001 may split power from existing LAN cable
and convert up to 12VDC/2.5A
for power hungry applications such as Wireless APs, Security cameras and
IP Phones. The internal current limit, short-circuit and overload protection are implemented to provide up
to 12VDC/2.5A for use of DC output power.
POS-4001 can work in pair with POI-4000, a high power PoE Injector, to deliver up to 12VDC/2.5A for use of
high power devices.
POS-4001 itself is powered by POI-4000 and so requires no separate power
connection in the middle of the cable, making it extremely easy to connect and power IP cameras.
The POS-4001 is compliant to IP-66 weather proof from snow, rain, typhoons, desert heat, etc. this Outdoor
PoE Splitter POS-4001 is up to the challenge for deployment in any harsh weather condition.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POS-4001 and is the answer not in the manual?

Questions and answers

Related Manuals for LevelOne POS-4001

Summary of Contents for LevelOne POS-4001

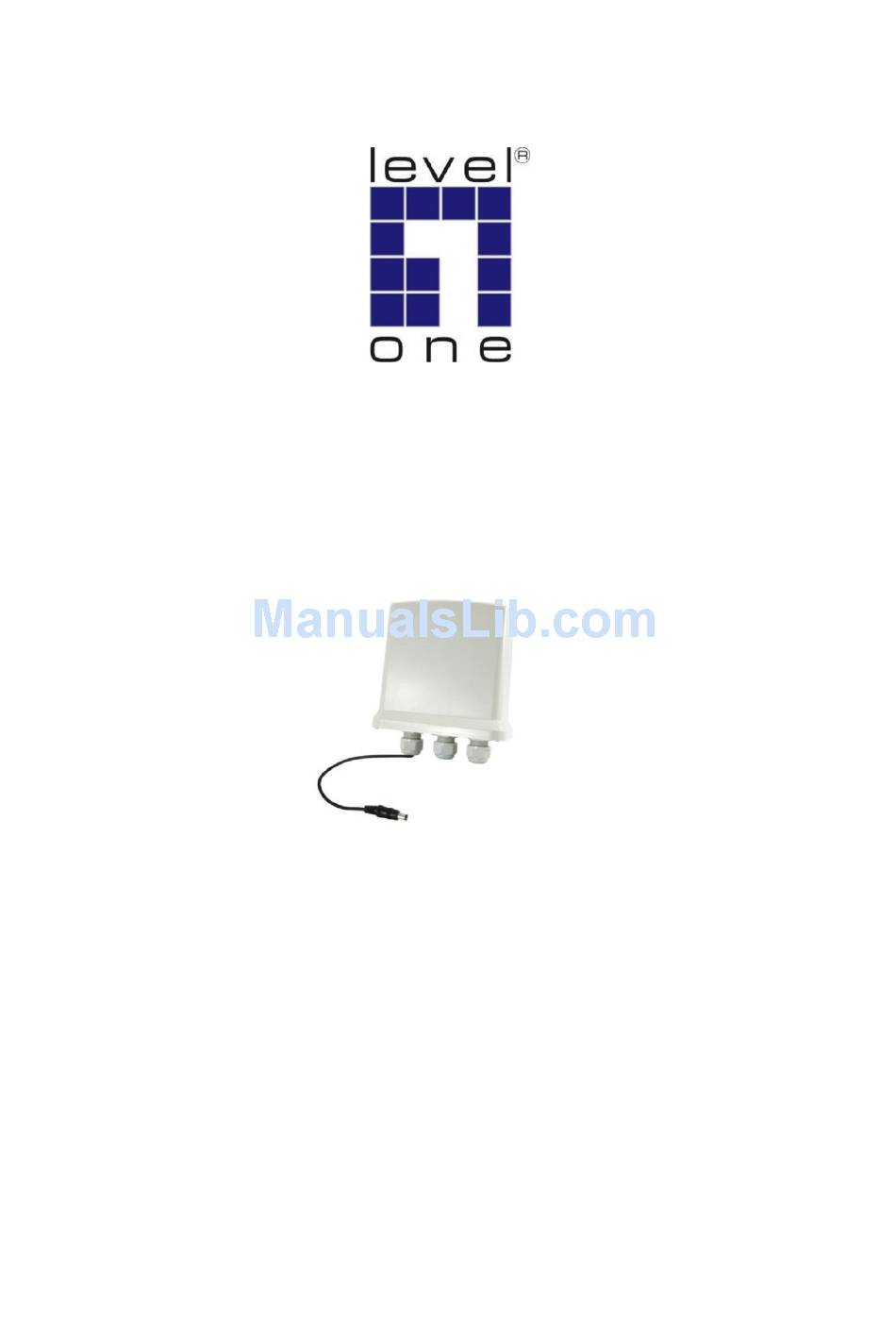

  • Page 1: User Manual

    IP Phones. The internal current limit, short-circuit and overload protection are implemented to provide up to 12VDC/2.5A for use of DC output power. POS-4001 can work in pair with POI-4000, a high power PoE Injector, to deliver up to 12VDC/2.5A for use of high power devices.
  • Page 2 Advantages: 12VDC 2.5A High Power PoE Power Splitter  Split Power Over Ethernet (POE) to remote devices  DC OUTPUT: 12VDC (default), 9, 6, 5, 3.3VDC(Optional)  Ethernet 100Mbps Wire Speed  Simple to install – Plug & Play  IP66 weatherproof design ...

  • Page 3: Application Diagram

    Application Diagram: POI-4000 PoE Injector & POS-4001 Outdoor PoE Splitter 100 m 12VDC 2A Ethernet Switch Power (Maximum) POI-400 POS-4001 RJ-45 CONNECTOR & PINOUT RJ-45 Input (Data + Power) RJ-45 Output (Data Only) Symbol Description Symbol Description Data Receive Data Receive...
