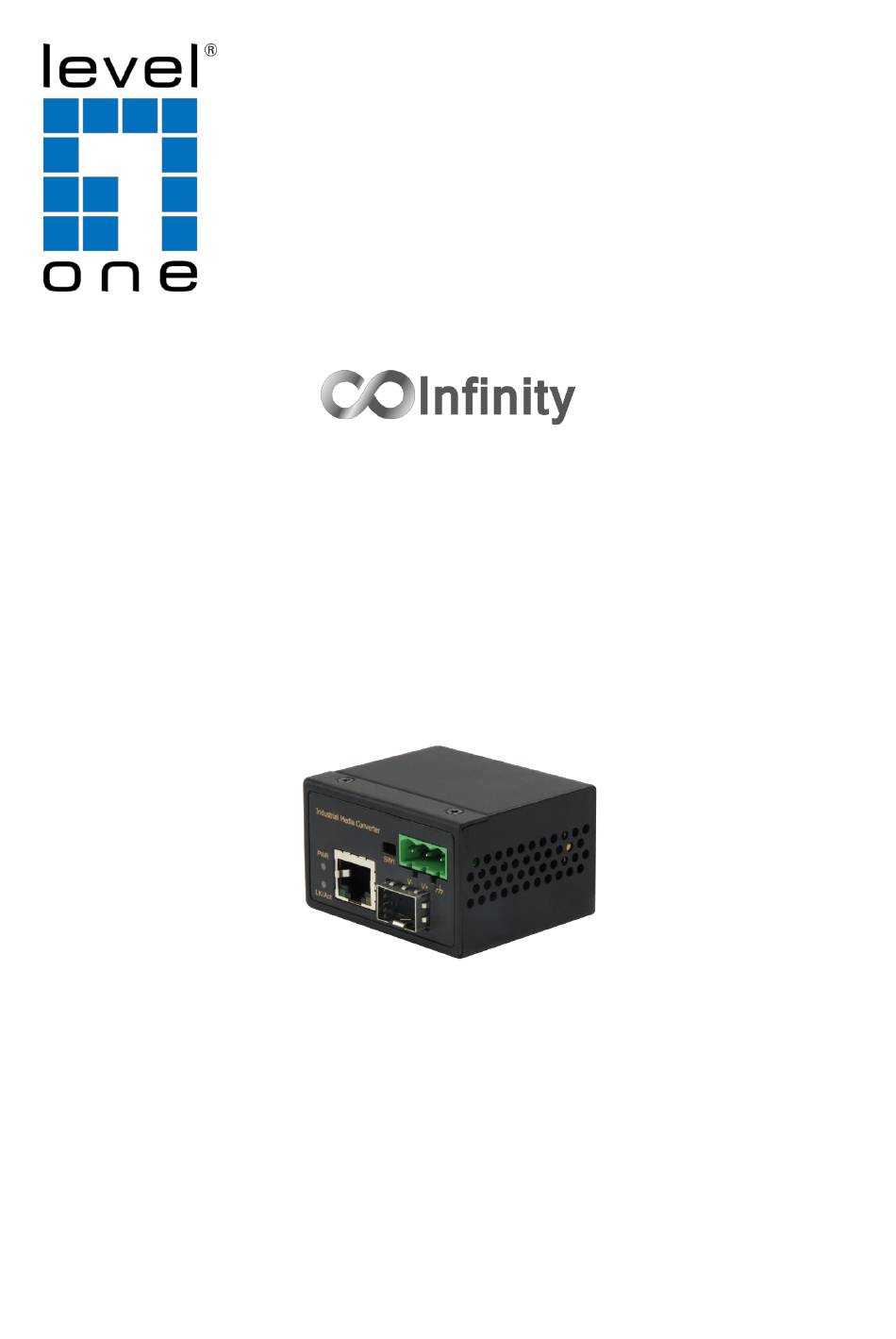

- Page 1 IEC-4000 Industrial Fast Ethernet mini Media Converter 10/100Mbps RJ-45 Copper to 100Mbps SFP Fibre Quick Installation Guide v1.00 - 1402...
- Page 2 Overview LevelOne IEC-4000 is an industrial Fast Ethernet media converter with a rugged aluminium case which providing superb heat dissipation. This converter is designed to be mounted on an industrial standard DIN-rail, plus the clearly visible status LEDs provide simple monitoring of port link activity. It also features Link Fault Pass Through in order to alert remote location when link status changes.
-
Page 3: Package Contents
Maximum noise & interference immunity -40°C to 75°C (-40°F to 167°F) operating temperature range DIN-Rail or panel mount installation Package Contents Industrial mini Media Converter Quick Installation Guide DIN-rail & Panel mount kits IEC-4000 Page 2... -
Page 4: Led Status
Description Steady Power On Power Off Steady Fibre link established LK/Act Flashing Transmitting or Receiving data 10/100Base-TX Steady Network connection established Green Flashing Transmitting or Receiving data Steady 100M speed is established Amber 10M speed is established IEC-4000 Page 3... -
Page 5: Power Input
To make power connection – Follow the printed polarity for V+, V- and Ground. Connect positive wire to V+, connect negative wire to V-, and also connect neutral wire to ground. IEC-4000 Page 4... -
Page 6: Dip Switch
SW1. Adjusting the dip switches will change the default function of this unit. This unit has set to manufacturer default as: switch mode and LFP function off. The table shown as you may change the dip switch setting to your desired environment. IEC-4000 Page 5... -
Page 7: Din Rail Mount
Start-up: Connect the supply voltage to start up the switch via the terminal block (or DC JACK) Dismantling: Pull out the lower edge and then remove the switch from the DIN rail IEC-4000 Page 6... - Page 8 SFP Transceiver (Optional) The IEC-4000 SFP slot supports pluggable modules (100Base- X only) that enabling you to choose from a variety of transceivers Model No. Description SFP-2100 125M MMF SFP Transceiver (2km, 850nm, -20 to 85C) SFP-2200 125M MMF SFP Transceiver (2km, 1310nm, -40 to 85C)
- Page 9 SFP-1411 155M SMF SFP Transceiver (40km, 1310nm, 0 to 70C) IEC-4000 Page 8...
