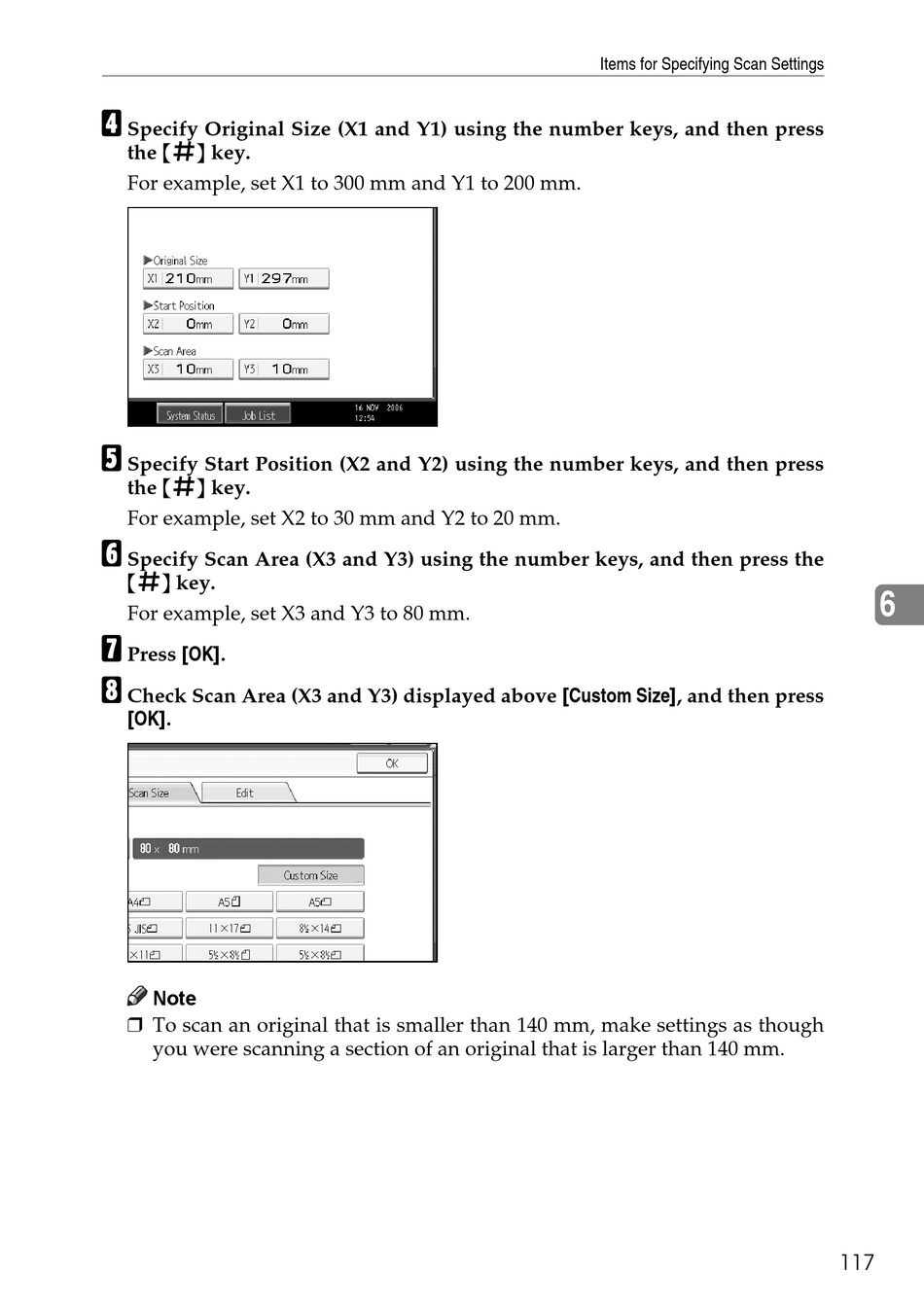

Ricoh Printer/Scanner Unit Type 8000 Operating Instructions Manual page 125

D
Specify Original Size (X1 and Y1) using the number keys, and then press
the {q} key.
For example, set X1 to 300 mm and Y1 to 200 mm.
E
Specify Start Position (X2 and Y2) using the number keys, and then press
the {q} key.
For example, set X2 to 30 mm and Y2 to 20 mm.
F
Specify Scan Area (X3 and Y3) using the number keys, and then press the
{q} key.
For example, set X3 and Y3 to 80 mm.
G
Press [OK].
H
Check Scan Area (X3 and Y3) displayed above [Custom Size], and then press
[OK].
Note
❒ To scan an original that is smaller than 140 mm, make settings as though
you were scanning a section of an original that is larger than 140 mm.
Items for Specifying Scan Settings
6
117
