Retractor SM • Installation Guide (Continued)

Installation

CAUTION:
• Do not operate a Retractor until it is installed.
• Retraction should be a slow, controlled motion.
• Keep hands away from moving parts.
ATTENTION :
• Ne vous servez pas d'un rétracteur avant qu'il soit
installé.
• La rétraction doit être un mouvement lent et contrôlé.
• N'approchez pas vos mains des parties en
mouvement.
The enclosure must be installed and properly configured before
beginning the retraction system installation.
1. Follow the enclosure installation instructions for new
installations or prepare an existing enclosure installation to
mount the Retractor modules.
2. Follow the Retractor mounting instructions in the Retractor
SM User Guide and the individual installation guides for

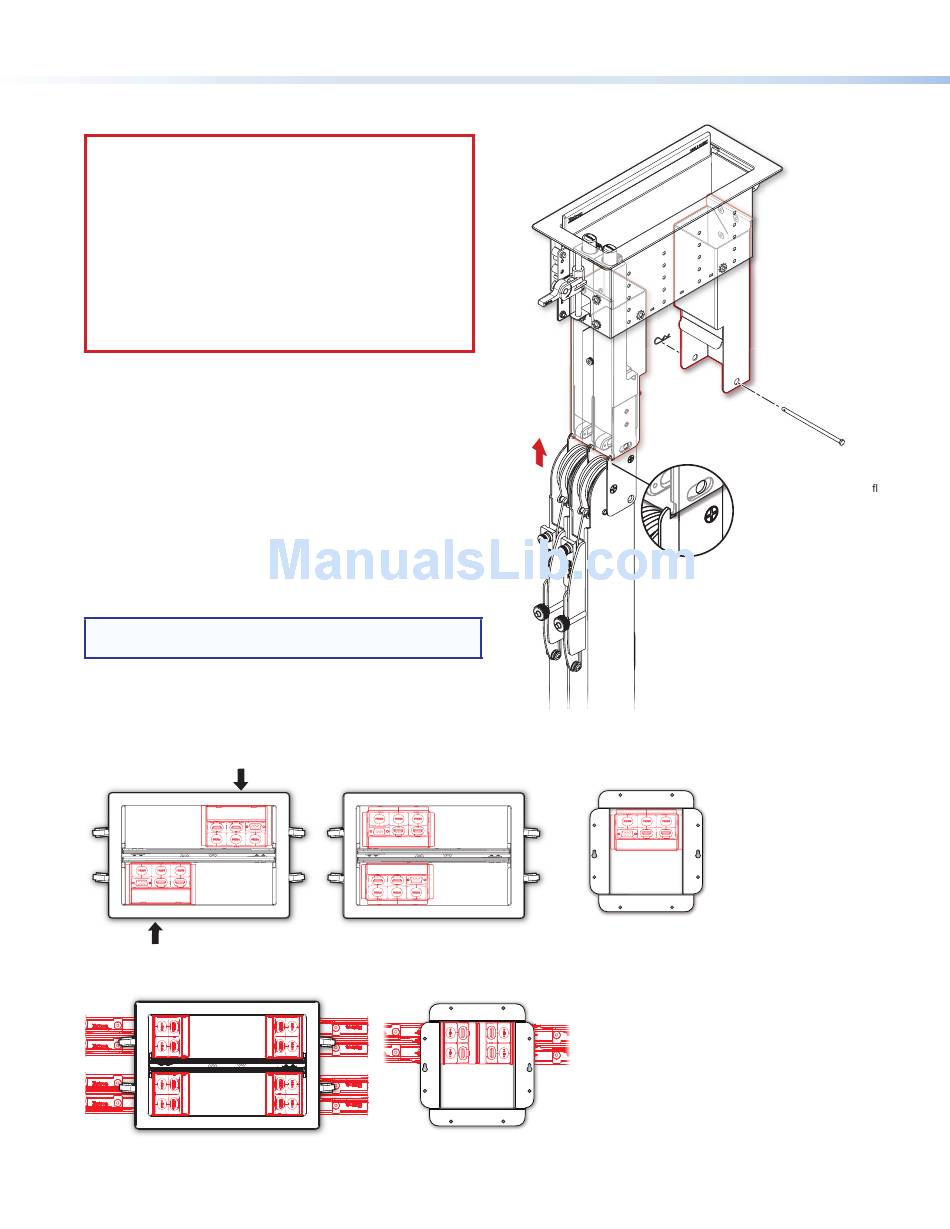

each mounting bracket (see an example installation at right).
3. Connect retraction system cables and other cables
(if installed).
4. When the Retractor module is installed, proceed to
Screw on the next page for final installation details.
NOTE:
Example installation shown with optional Cable
Cubby 1202 enclosure.
Cable Cubby Installation
Retractor SM modules can be mounted in the Cable Cubby enclosure using the Retractor SM Triple Brackets.
User Access
Cable Cubby 1402
User Access
Retractor SM modules can be installed using the Retractor SM Quad Brackets.
Cable Cubby 1402
4
Cable Cubby 1202
Enclosure
Quad
Bracket
Locking
Cable Cubby 650 UT
Cable Cubby 650UT
Clip
(x 2)
Pin
(x 2)
1
Raise the modules
into the bracket.
Ensure module is ush
against bracket with
notch on outside wall.
2
Secure the modules
with the included
mounting pin and clip.
