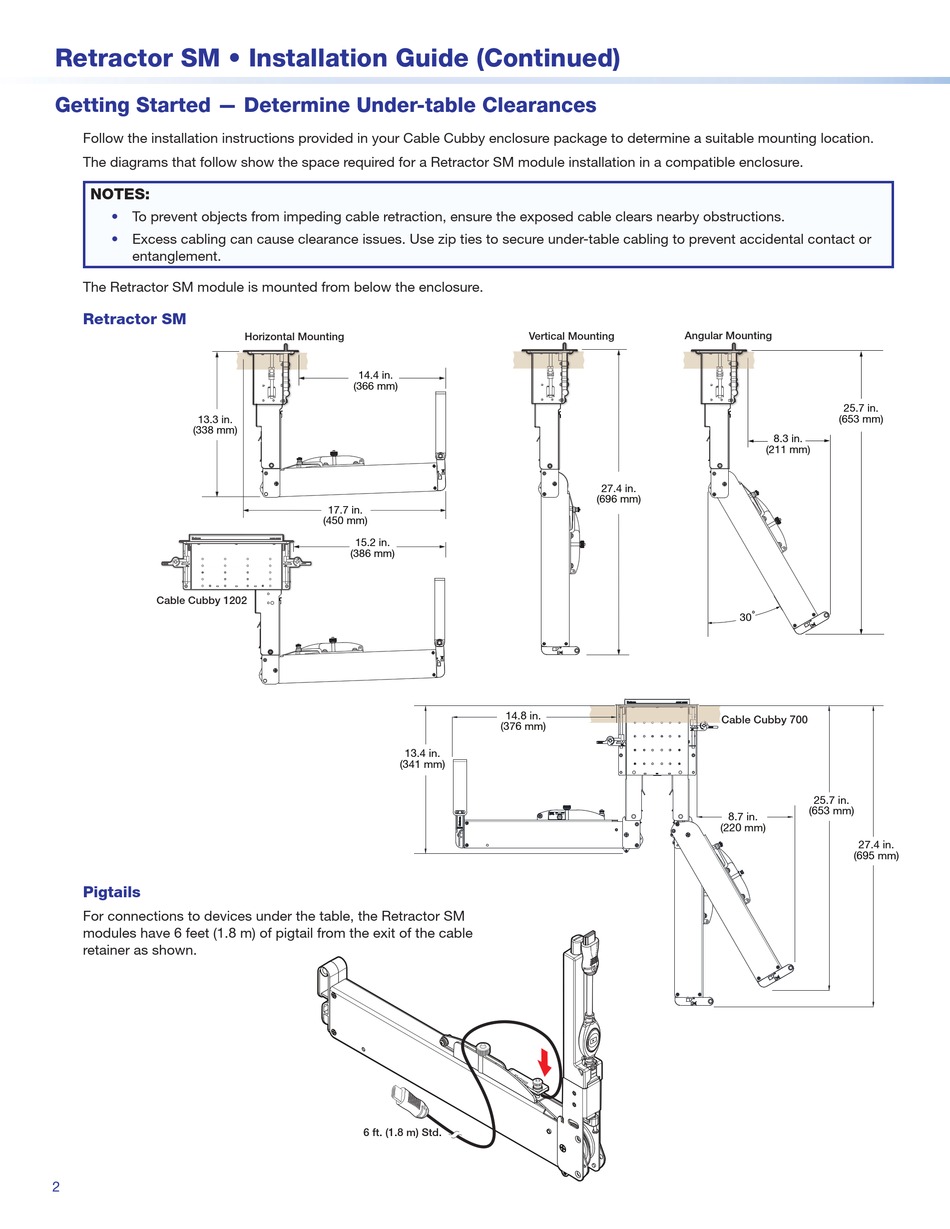

Retractor SM • Installation Guide (Continued)
Getting Started — Determine Under-table Clearances
Follow the installation instructions provided in your Cable Cubby enclosure package to determine a suitable mounting location.
The diagrams that follow show the space required for a Retractor SM module installation in a compatible enclosure.
NOTES:
•
To prevent objects from impeding cable retraction, ensure the exposed cable clears nearby obstructions.
•
Excess cabling can cause clearance issues. Use zip ties to secure under‑table cabling to prevent accidental contact or
entanglement.
The Retractor SM module is mounted from below the enclosure.
Retractor SM
13.3 in.
13.3 in.
(338 mm)
(338 mm)
Cable Cubby 1202
Cable Cubby 1202
Pigtails
For connections to devices under the table, the Retractor SM
modules have 6 feet (1.8 m) of pigtail from the exit of the cable
retainer as shown.
2
Horizontal Mounting
o
o a
Horizontal Mounting
14.4 in.
14.4 in.
(366 mm)
(366 mm)
17.7 in.
17.7 in.
(450 mm)
(450 mm)
15.2 in.
15.2 in.
(386 mm)
(386 mm)
13.4 in.
(341 mm)
6 ft. (1.8 m) Std.
Vertical Mounting
Vertical Mounting
27.4 in.
27.4 in.
(696 mm)
(696 mm)
14.8 in.
(376 mm)
Angular Mounting
25.7 in.
25.7 in.
(653 mm)
(653 mm)
8.3 in.
8.3 in.
(211 mm)
(211 mm)
30
30
Cable Cubby 700
25.7 in.
(653 mm)
8.7 in.
(220 mm)
27.4 in.
(695 mm)
