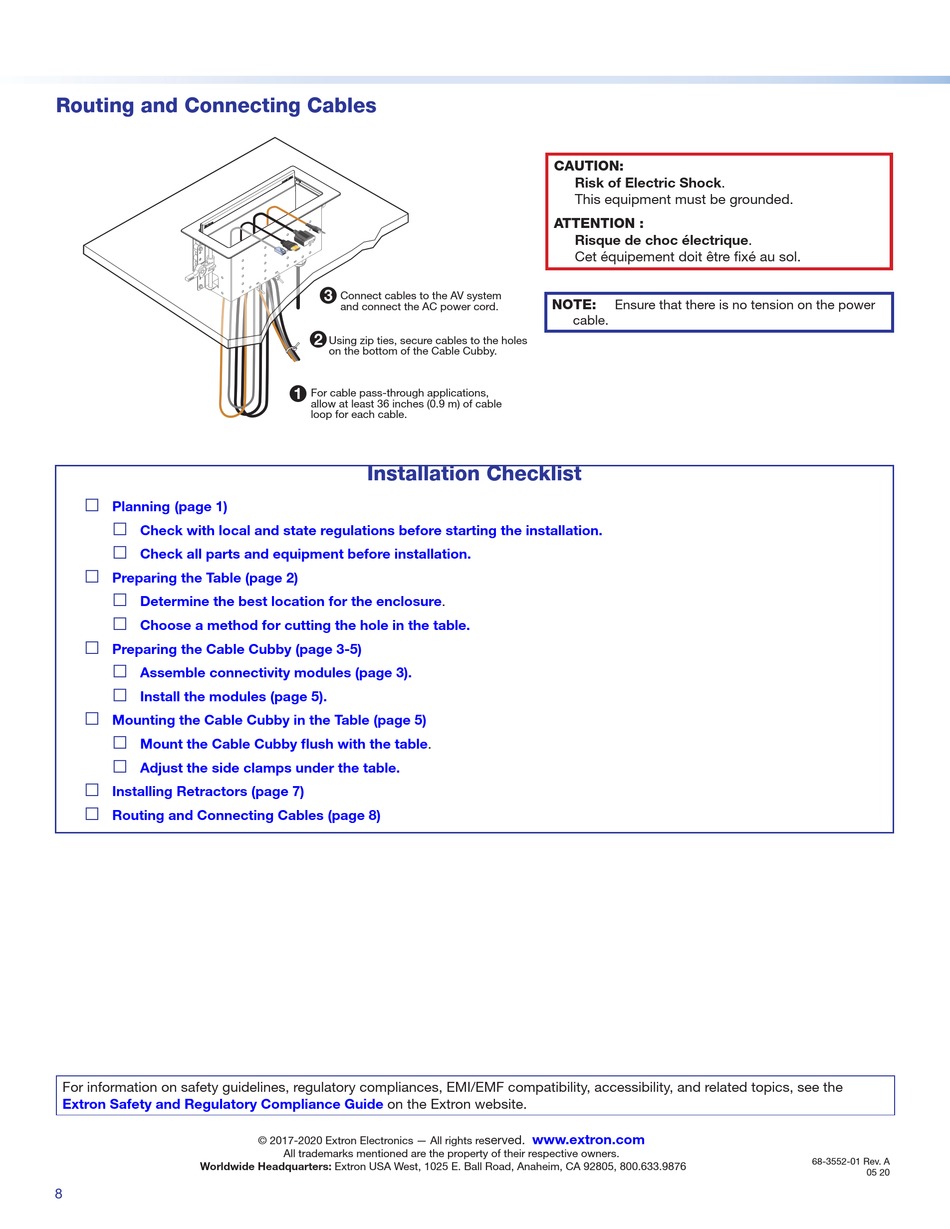

Routing and Connecting Cables
…
Planning (page 1)
…
Check with local and state regulations before starting the installation.
…
Check all parts and equipment before installation.
…
Preparing the Table (page 2)
…
Determine the best location for the
…
Choose a method for cutting the hole in the table.
…
Preparing the Cable Cubby (page 3-5)
…
Assemble connectivity modules (page 3).
…
Install the modules (page 5).
…
Mounting the Cable Cubby in the Table (page 5)
…
Mount the Cable Cubby flush with the
…
Adjust the side clamps under the table.
…
Installing Retractors (page 7)
…
Routing and Connecting Cables (page 8)
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
8
3
Connect cables to the AV system
and connect the AC power cord.
2
Using zip ties, secure cables to the holes
on the bottom of the Cable Cubby.
1
For cable pass-through applications,
allow at least 36 inches (0.9 m) of cable
loop for each cable.

Installation Checklist

enclosure.
table.
on the Extron website.
© 2017-2020 Extron Electronics — All rights re
All trademarks mentioned are the property of their respective owners.
CAUTION:
Risk of Electric Shock.
This equipment must be grounded.
ATTENTION :
Risque de choc électrique.
Cet équipement doit être fixé au sol.
NOTE: Ensure that there is no tension on the power
cable.
www.extron.com
served.
68-3552-01 Rev. A
05 20
