Extron electronics Retractor SM Installation Manual page 3

Getting Started — Prepare the Retractors
The Retractor SM modules are delivered ready to mount vertically. No further modifications are required. If the Share button is not
seated fully against the cable release assembly, confirm proper tension adjustment using the instructions in the Retractor SM User
Guide.

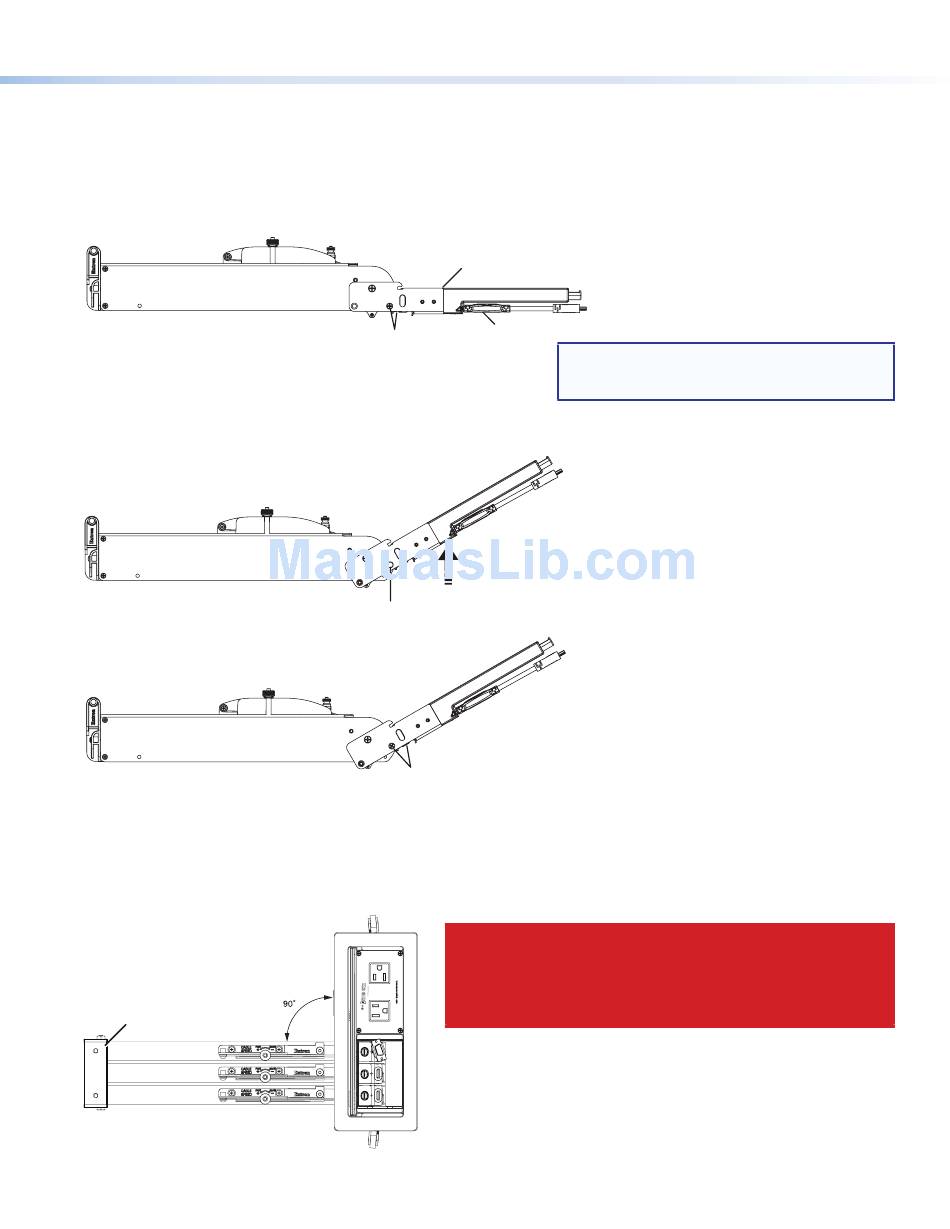

To mount a Retractor horizontally or at an angle:
To mount the Retractor at an angled position for increased under-table clearance:
Getting Started — Prepare the Enclosure
By now, you should be certain the Retractor SM modules have adequate under‑table clearance for installation and that proper
legroom is provided to avoid accidental contact with the system. You should have the required accessories for mounting the
retraction system and to configure the enclosure (see
Horizontal
Bracket
Screws (one on each side)
1
Remove two enclosure screws
(one on each side) from this position
for horizontal and angular mounting.
Screws (one on each side)
1
Remove two enclosure screws
(one on each side) from this position
for horizontal and angular mounting.
Angular Mounting Hole
Angular Mounting Hole
Mounting Location
Mounting Location
Required Tools and Additional Accessories
4
Rotate the cable stop to
the horizontal position
for installation.
4
Rotate the cable stop to
the horizontal position
for installation.
Top View
Cable Stop Assembly
Cable Stop Assembly
Share Button
NOTE:
For horizontal mounting instructions see
the Retractor SM User Guide and the Retractor
Share Button
SM Horizontal Bracket Installation Guide.
2
For angular mounting, move the
cable stop assembly upward until
the angular mounting hole is visible.
Go to 3 .
2
For angular mounting, move the
cable stop assembly upward until
the angular mounting hole is visible.
Go to 3 .
3
Install the two enclosure screws
removed in step 1 (one on each side)
in the angular mounting location.
3
Install the two enclosure screws
removed in step 1 (one on each side)
in the angular mounting location.
DANGER:
• Disconnect the power from the Cable Cubby enclosure before
beginning a Retractor system installation.
• Débranchez l'alimentation du boîtier Cable Cubby avant de
commencer l'installation d'un système de Rétracteur.
on page 1).
3
