FingerTec TA700W Installation Manual

Installation Guide

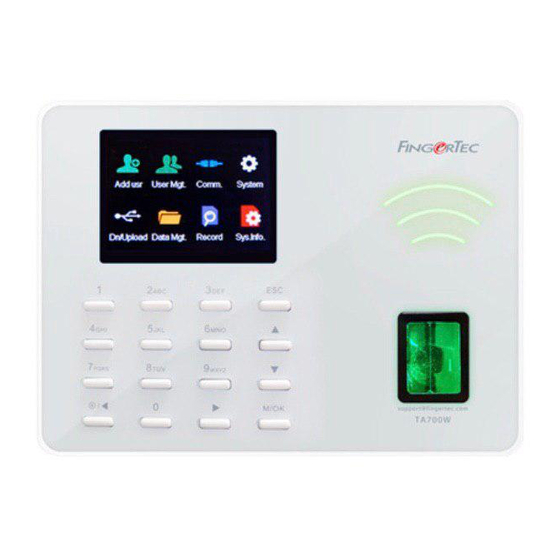

TA700W
Biometrics Time Attendance System
© 2017 Timetec Computing Sdn Bhd. All rights reserved.• 032017

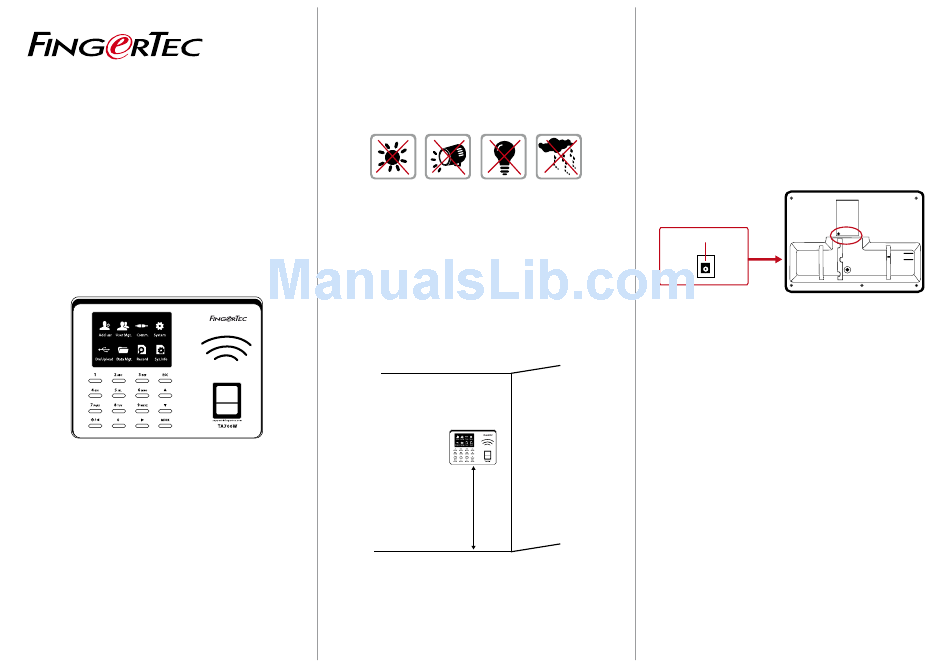

Step 1
Determine the Installation Location
•
Avoid installing the terminals in locations that have contact with
strong light source (e.g direct sunlight, spotlight, fluorescent
light, etc)
•
Avoid installing the terminals in locations prone to high moisture
or condensation levels in the air
•
The recommended installation height of the terminals from the
ground is 1.2 meter.
Step 2
Mount on a Wall
It is recommended that the terminals be mounted to a wall in to
ease the process of enrolment and verification.
4 feet / 1.2 meter
(recommended)
After measuring the height accordingly and make relevant marking on
the wall, drill the screws into the wall to secure the back plate.
Attach the terminal to the back plate and tighten the screws. Refer to
Appendix I (Installation Plate Type I), and Appendix II (Installation Plate
Type II), for dimensions and measurements of installation.
TA700W is the only FingerTec terminal provided with 2 different in-
stallation plates, choose your preference.
Step 3
Wiring for Power Supply
POWER PORT
........
Please use the power adaptor provided in the package or alterna-
tively you can choose a linear power supply with specifications of
5VDC 2A.
Don't exceed the recommended voltage or current to avoid dam-
aging the terminal.
Step 4
Finalizing the Installation
1. Check that all cable connections are done correctly.
2. Attach the terminal to the corresponding back plates and
tighten the screws to secure the terminal on the wall.
3. Switch on the power to the terminal.
4. Start using the terminal.
