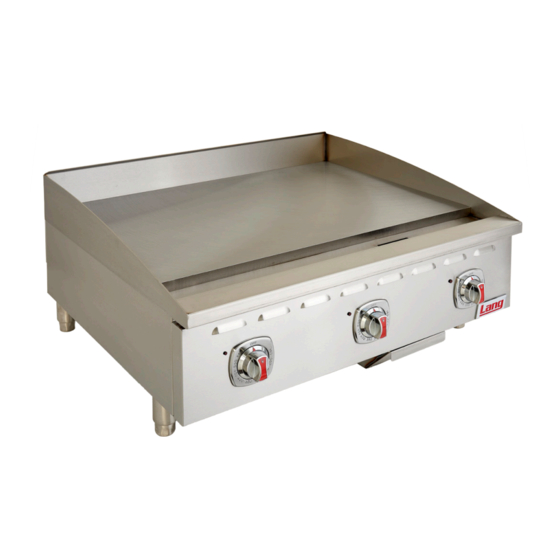

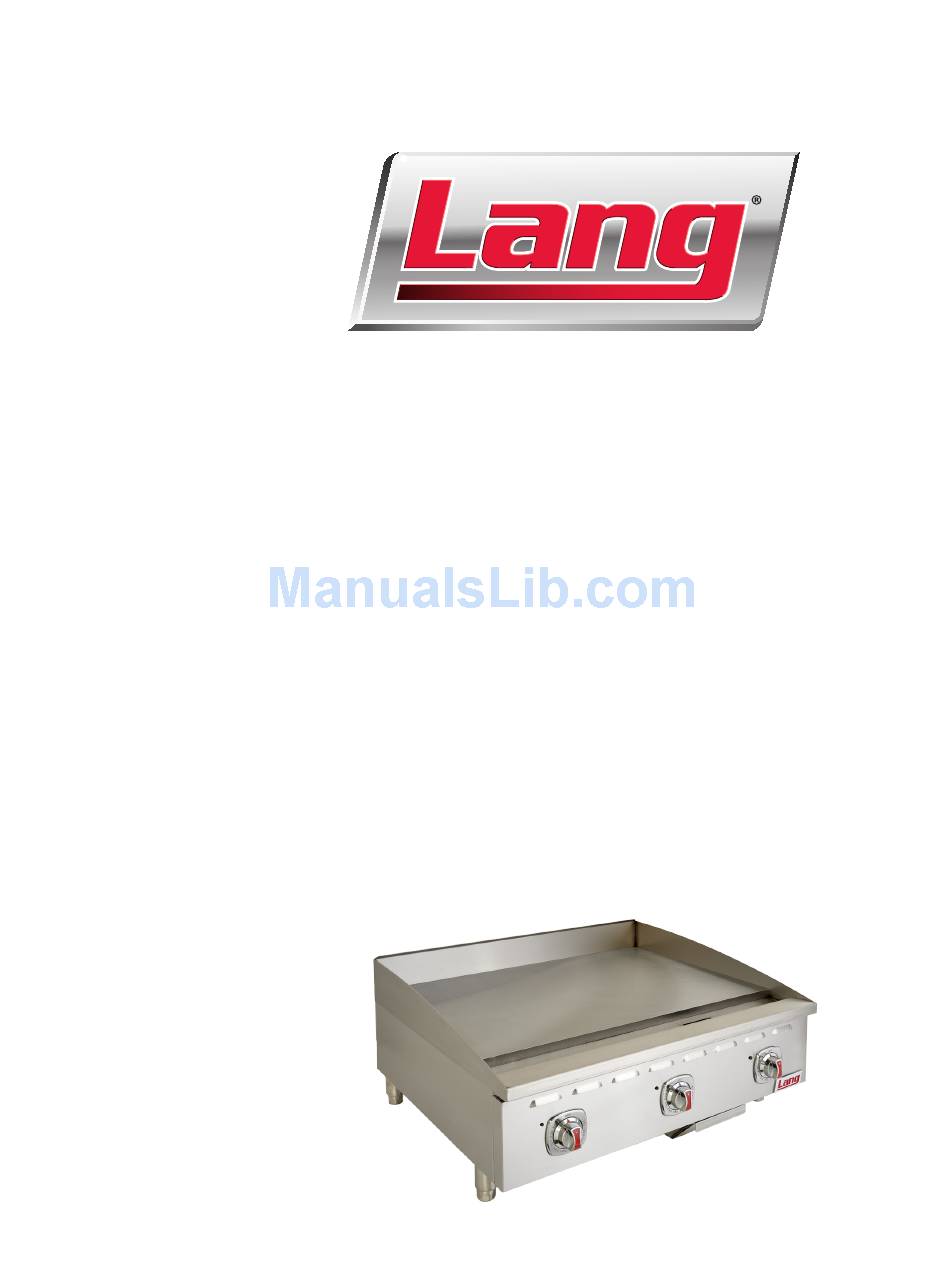

Electric Griddle
Owner's Manual
Models
324T, 336T, 348T, 360T, 372T,
324TC, 336TC, 348TC, 360TC, 372TC,
324S, 336S, 348S, 360S, 372S,
324SC, 336SC, 348SC, 360SC, 372SC
This manual includes material related to installation,
use , cleaning, and care. Exploded view[s], as well
as any available parts list[s] and wiring diagram[s]
pertaining to the unit[s] covered by this manual are
also included.
This manual must be read and understood by all
persons using or installing this appliance. Contact
your Lang dealer if you have any questions concerning
installation, use, or maintenance of this equipment.
DO NOT DISCARD THIS MANUAL.
336T
2M-Z22113 • Rev. C • 09.2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lang 324T
Summary of Contents for Lang 324T
-
Page 1: Electric Griddle
This manual must be read and understood by all persons using or installing this appliance. Contact your Lang dealer if you have any questions concerning installation, use, or maintenance of this equipment. DO NOT DISCARD THIS MANUAL. 336T... - Page 2 Fax 314.781.2714 original Star, Lang, or Toastmaster Email customerservice@star-mfg.com parts sold to repair Star, Lang, or 90 days www.star-mfg.com • www.langworld.com • www.toastmastercorp.com Toastmaster equipment The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Warranty General Information Installation and Electrical Connection 2–3 Wiring Diagrams 4–6 Daily Operation Specifications Exploded View Parts List 10–15... - Page 4 NOTES...
- Page 5 SAFETY SYMBOLS These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to ensure delivery of your unit in perfect condition.
-
Page 6: General Information
GENERAL SAFETY INFORMATION This equipment is designed and sold for commercial use only, and is intended for use by personnel trained and experienced in its operation. This is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. Before using your new equipment, read and understand all the instructions and labels associated with the unit prior to putting it into operation. - Page 7 WIRING Models may be wired for operation in the field for either 1-phase or 3-phase power supplies by making line connections at the junction box located at the rear of the unit as described on the phase diagram. 336, 348, 360, and 372 models are recommended to be wired for 3-phase operation. 360 and 372 models are supplied with two junction boxes.
-
Page 8: Wiring Diagrams
WIRING DIAGRAM 208 V and 240 V version 336S 324S 348S is the same with one additional section with the power SERVICE CONNECTIONS connections being 7 and 8. THREE PHASE SINGLE PHASE MODEL 360S griddles will use two connections with C1 being the same as one 336S and C2 being the same as one 324S. -
Page 9: Wiring Diagram
WIRING DIAGRAM 480 V version 336S 324S 480V 348S is the same with one additional section with the power SERVICE CONNECTIONS connections being 7 and 8. THREE PHASE SINGLE PHASE MODEL 360S griddles will use two connections with C1 being the same as one 336S and C2 being the same as one 324S. -
Page 10: Wiring Diagrams
324T 360T griddles will use two connections with C1 being the same 1 GRIDDLE ELEMENTS SERVICE CONNECTIONS 2 GRIDDLE PILOT LAMP as one 336T and C2 being the same as one 324T. 3 GRIDDLE THERMOSTAT THREE PHASE SINGLE PHASE MODEL... -
Page 11: Daily Operation
DAILY OPERATION TEMPERATURE CONTROL GRIDDLE CARE SNAP-ACTION THERMOSTAT It takes very little time and effort to keep the griddle attractive and performing at top efficiency. If grease To power on the elements, turn the adjustment knob is permitted to accumulate, it forms a viscous residue to the desired temperature. -
Page 12: Specifications
SPECIFICATIONS 324T shown 18 in. (457 mm) 13.75 in. (607 mm) 4.8 in. 1.2 in. 0.75 in. (122 mm) (30 mm) (19 mm) 4 in. 23.9 in. (102 mm) (607 mm) ELECTRICAL CONNECTION 24 in. 324 models—8.7 inches (221 mm) from either side (610 mm) 336 and 348 models—2.2 inches (56 mm) from right side... -
Page 13: Exploded View
EXPLODED VIEW 336 shown... -
Page 14: Parts List
Side references are from the operator’s point-of-view—from the front of the unit. All parts apply to chrome modelsalso except number 1, which has chrome or standard steel versions noted. Items labeled “NP” are not pictured. REF NO MODEL PART NUMBER DESCRIPTION PAGE NO 324T, 324S K9-EZG-1122 336T, 336S K9-EZG-1109 348T, 348S K9-EZG-1123 360T, 360S K9-EZG-1124... - Page 15 REF NO MODEL PART NUMBER DESCRIPTION PAGE NO 324T/324S K9-EZG-1126 336T/336S K9-EZG-1137 348T/348S K9-EZG-1128 body assembly 360T/360S K9-EZG-1129 372T/372S K9-EZG-1130 324T/324S G5-Z8491 336T/336S G5-Z8492 348T/348S G5-Z8493 rear panel 360T/360S G5-Z8494 372T/372S G5-Z8495 324T 2E-30500-20 4 pole terminal block [element] 324S...
- Page 16 REF NO MODEL PART NUMBER DESCRIPTION PAGE NO 324T/324S 336T/336S 348T/348S 2C-8833 #8-18 screw 360T/360S 372T/372S 324T/324S 336T/336S 348T/348S G5-824014 grease drawer 360T/360S 372T/372S 324T/324S G5-Z8468 5.5 in. (140 mm) wide bottom panel G5-Z8468 5.5 in. (140 mm) wide bottom panel...
- Page 17 REF NO MODEL PART NUMBER DESCRIPTION PAGE NO M9-Z22041 nameplate mount 324S 336S 348S 2E-40101-W19 control board 360S 372S 324T/324S 336T/336S 348T/348S 2C-20602-03 tinnerman clip 360T/360S 372T/372S 324S 336S 348S 2E-30304-22 control switch 360S 372S 324T 336T 348T 2T-30402-07 thermostat...
- Page 18 REF NO MODEL PART NUMBER DESCRIPTION PAGE NO 324T 336T 348T 360T 372T Y9-31601-01-1 pilot/signal lamp 324S 336S 348S 360S 372S 324T 336T 348T 2R-Z21928 360T 372T die cast bezel 324S 336S 348S 2R-Z21929 360S 372S 324T 336T 348T K9-EZG-1146...
- Page 19 REF NO MODEL PART NUMBER DESCRIPTION PAGE NO 324S, 336S, 348S, Z1-70-07-0343 main power switch guard 360S, 372S 324S 336S 348S 2E-30303-06 toggle switch 360S 372S...
- Page 20 LANG MANUFACTURING www.langworld.com • Printed in the U.S.A. • 2M-Z22113 • Rev C • 09.2017 Specifications are subject to change without notice. 265 Hobson Street Smithville, Tennessee 37166 • Telephone 314 678 6315 Fax 314 781 3636 •...
