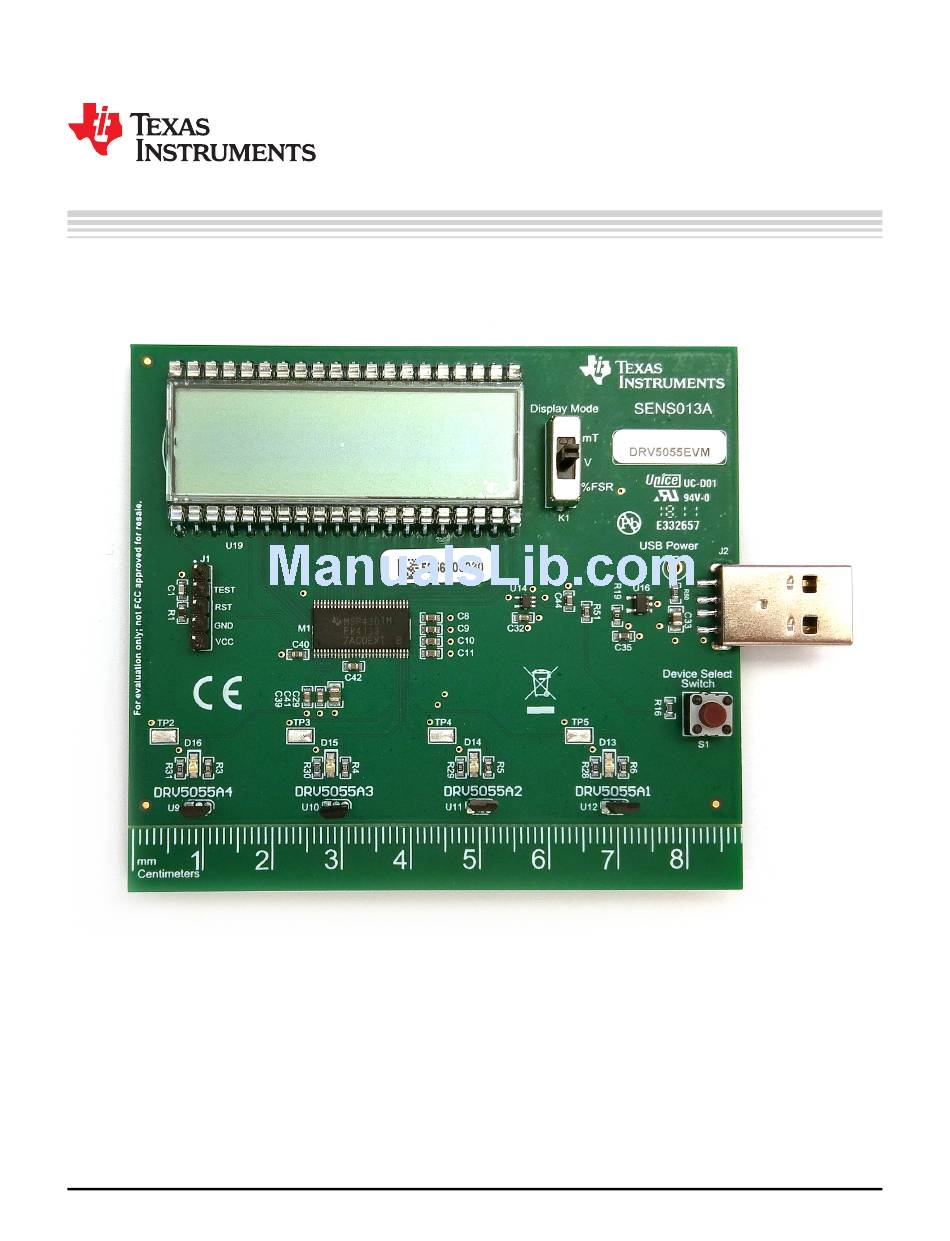

This user's guide describes the characteristics, operation, and use of the
(EVM). This EVM is designed to evaluate the performance of the DRV5055 ratiometric, linear, Hall effect
sensors. Throughout this document, the terms evaluation board, evaluation module, and EVM are
synonymous with the DRV5055EVM. This document includes a schematic, reference printed circuit board
(PCB) layouts, and a complete bill of materials (BOM).
SLYU047A – April 2018 – Revised May 2018
Submit Documentation Feedback
Copyright © 2018, Texas Instruments Incorporated
User's Guide
SLYU047A – April 2018 – Revised May 2018
DRV5055EVM
DRV5055
evaluation module
DRV5055EVM
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments DRV5055EVM
Summary of Contents for Texas Instruments DRV5055EVM
- Page 1 (EVM). This EVM is designed to evaluate the performance of the DRV5055 ratiometric, linear, Hall effect sensors. Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous with the DRV5055EVM. This document includes a schematic, reference printed circuit board (PCB) layouts, and a complete bill of materials (BOM).
-
Page 2: Table Of Contents
DRV5055 Device Summary ........................Kit Contents ..................... Related Documentation ......................Bill of Materials Trademarks All trademarks are the property of their respective owners. DRV5055EVM SLYU047A – April 2018 – Revised May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 3: Overview
This EVM user's guide provides information regarding TI's integrated circuits used in the assembly of the DRV5055EVM. This user's guide is available from the TI website under literature number SLYU047. Any letter appended to the literature number corresponds to the document revision that is current at the time of the writing of this document. -
Page 4: Operation
Measurements The DRV5055EVM measures a magnetic field with multiple devices and the respective gain variants. Push-button S1 selects the different gain variants of the DRV5055 devices. The devices are arranged such that gain variants increase sequentially from right to left. The LCD displays the measurement corresponding to the selected device. -
Page 5: Hardware
DRV5055 family of devices. Theory of Operation The DRV5055EVM is a plug and play board, requiring only that the user supply power and provide a magnetic stimulus after the initial calibration. The ease of operation can be attributed to the onboard microcontroller. - Page 6 Hardware www.ti.com Circuitry This section summarizes the DRV5055EVM components. 3.3.1 C1, J1, R1, and R2 J1 serves as the connector for an external MSP-FET Flash Emulation Tool to connect to the board. C1, R1, and R2 are the additional passives required for the emulation tool to effectively communicate with the MSP430FR4133 for the purposes of programming and debugging.
- Page 7 U21 is a switch that serves as a GPIO extender to provide on additional pin with a voltage signal suitable for the LCD. SLYU047A – April 2018 – Revised May 2018 DRV5055EVM Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
-
Page 8: Schematics, Pcb Layout, And Bill Of Materials
DRV5055EVM. Figure 2 pertains to DRV5055 devices that the DRV5055EVM is meant to demo. Figure 3 shows the schematic of the microcontroller that does all the processing of the measurement data and user input, as well as the LCD that the microcontroller drives. -
Page 9: Schematic Of Lcd For Measurement Display, Microcontroller For Data Processing, And Switch For Expanding Gpio Functionality
P6.4/L20 P6.5/L21 DVSS MSP430FR4133IG56R Figure 3. Schematic of LCD for Measurement Display, Microcontroller for Data Processing, and Switch for Expanding GPIO Functionality SLYU047A – April 2018 – Revised May 2018 DRV5055EVM Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 10: Schematic Of Push-Button User Input, Slider Switch User Input, And Programming Input
1.5uF U14B 0.1uF VOLT 10.0k PCT_FS 10.0k 10.0k Figure 4. Schematic of Push-Button User Input, Slider Switch User Input, and Programming Input DRV5055EVM SLYU047A – April 2018 – Revised May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 11: Schematic Of Led And Indicators And Slider Switch Status Reader
Figure 5. Schematic of LED and Indicators and Slider Switch Status Reader USB Power VBUS VOUT LP5907MFX-3.3/NOPB 10µF Figure 6. Schematic of Supply Input and Power Conditioning SLYU047A – April 2018 – Revised May 2018 DRV5055EVM Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 12: Top Overlay
Schematics, PCB Layout, and Bill of Materials www.ti.com PCB Layout Figure 7 through Figure 10 illustrate the PCB layers of the DRV5055EVM. Figure 7. Top Overlay Figure 9. Bottom Overlay Figure 8. Top Layer Figure 10. Bottom Layer DRV5055EVM SLYU047A – April 2018 – Revised May 2018 Submit Documentation Feedback Copyright ©... -
Page 13: Bill Of Materials
Schematics, PCB Layout, and Bill of Materials www.ti.com Bill of Materials Table 4 provides the parts list for the DRV5055EVM. Table 4. Bill of Materials Designator Quantity Value Description Package Reference Part Number Manufacturer 2200pF CAP, CERM, 2200 pF, 50 V,+/- 5%, C0G/NP0,... - Page 14 VI-401-DP-RC-S Varitronix 1-Ohm 5-V/3.3-V 2-Channel SPDT Switch, DGS0010A TS5A23159DGSR Texas Instruments DGS0010A (VSSOP-10) Switch, Tactile, SPST-NO, 0.02A, 15V, TH 6.0x5.0x6mm EVQ-21405R Panasonic DRV5055EVM SLYU047A – April 2018 – Revised May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
-
Page 15: Revision History
Added row for magnet to Table 2 ..............• Added two new rows to BOM table for designators H1 and H2 SLYU047A – April 2018 – Revised May 2018 Revision History Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... - Page 16 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 17 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 18 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿６丁目２４番１号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/ /www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 3.4 European Union 3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive): This is a class A product intended for use in environments other than domestic environments that are connected to a low-voltage power-supply network that supplies buildings used for domestic purposes.
- Page 19 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2018, Texas Instruments Incorporated...
- Page 20 IMPORTANT NOTICE FOR TI DESIGN INFORMATION AND RESOURCES Texas Instruments Incorporated (‘TI”) technical, application or other design advice, services or information, including, but not limited to, reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to assist designers who are developing applications that incorporate TI products;...
