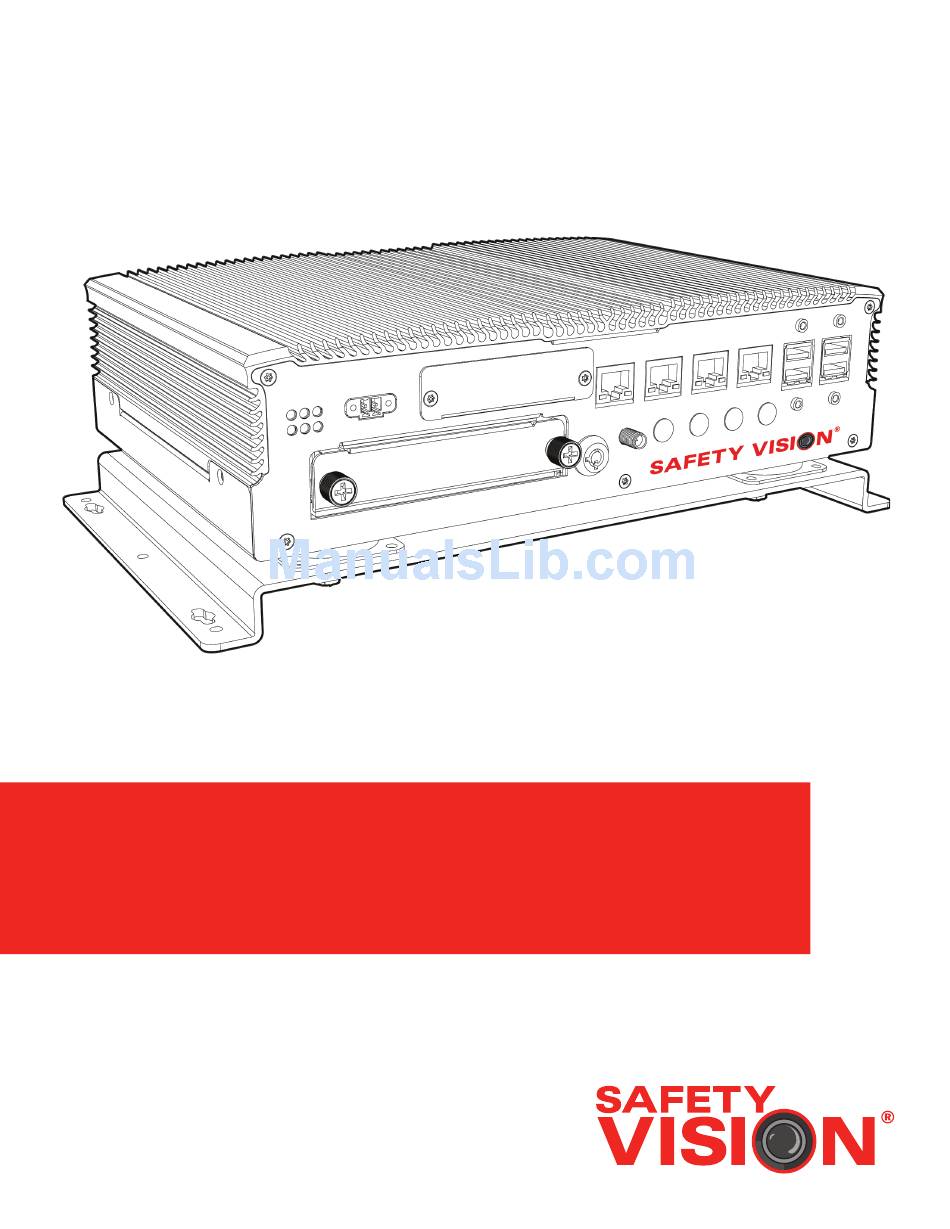

- Page 1 ROADRECORDER® 8400 NVR USER GUIDE...
-
Page 2: Important Notices
However, because of Safety Vision’s policy of continual product improvement, Safety Vision reserves the right to amend the information in this document at any time without prior notice. This material is confidential and the property of Safety Vision. -
Page 3: Table Of Contents
ROADRECORDER 8400 NVR USER GUIDE Contents Components Front Panel Rear Panel Installation Main Wiring Diagram Flat Mount Storage Media Hard Drive Canister SIM Card Configuration Installing Safety Vision Windows Application Step 1. Connecting to the NVR Step 2. Installing SV Windows Application... - Page 4 ROADRECORDER 8400 NVR USER GUIDE Relay Outputs Relay Outs Status Relay Bypass Recording Settings Select directory to store metadata file Metadata Files Retention Options Metadata Files Retention Period Select directory to store Archived metadata file Date / Time Settings Timezone...
-
Page 5: Components
ROADRECORDER 8400 NVR USER GUIDE Components Front Panel 1 - LED Status Lights 4 - LAN Ports Displays the status of various NVR 10/100/1000Mbps PoE LAN ports operations (see table below) 5 - USB Ports Four USB 2.0 ports 2 - Remote Power Switch... -
Page 6: Rear Panel
ROADRECORDER 8400 NVR USER GUIDE Rear Panel 1 - Multiple I/O Connector 5 - DC Output 12V A 26-pin male connector 1 × 2-pin terminal block for DC 12V (1A) configured as followed: Output • 4 × DI (5V or 12V TTL selectable) -
Page 7: Installation
ROADRECORDER 8400 NVR USER GUIDE Installation Main Wiring Diagram COLOR DESCRIPTION GREEN IGNITION BLACK GROUND 9~36V... - Page 8 ROADRECORDER 8400 NVR USER GUIDE SIGNAL NOTES AUDIO_OUT_R RIGHT AUDIO MIC INPUT AUDIO_OUT_L LEFT AUDIO MIC INPUT GND_AUD AUDIO GROUND (-) GND_AUD AUDIO GROUND (-) AMPOUT_R RIGHT LINE-OUT/ HD AUDIO OUTPUT (2W) AMPOUT_L LEFT LINE-OUT/ HD AUDIO OUTPUT (2W) GROUND (-)
-
Page 9: Flat Mount
ROADRECORDER 8400 NVR USER GUIDE Flat Mount Secure the NVR to the surface with self-tapping screws or rivets. Ensure that the front panel of the NVR remains accessible and there is a minimum 2.5 inches of clearance for cables. Do not install NVR in an area on the vehicle cabin that could interfere with the safe operation of the vehicle. -
Page 10: Storage Media
ROADRECORDER 8400 NVR USER GUIDE Storage Media Hard Drive Canister Use the following procedure to remove the hard drive. To remove the hard drive from the NVR: Ensure the NVR is powered off. 2. Insert the key into the hard drive lock and turn it clockwise. -
Page 11: Sim Card
ROADRECORDER 8400 NVR USER GUIDE SIM Card Use the following procedures to remove the SIM card. Remove the two screws on the SIM card access panel and flip down the panel. 2. Lightly push down on the SIM card until a “click”... -
Page 12: Configuration
Configuration Installing Safety Vision Windows Application NOTE: Windows OS and Safety Vision Windows application is pre-installed prior to deployment, but there are some instances where the end user will want to do this themselves. If installing Windows OS yourself, Windows OS needs to be installed on the mSATA drive [internal SSD]. -
Page 13: Step 2. Installing Sv Windows Application
After installing Windows OS, download and extract the SV Windows application from Safety Vision’s FTP site. (Contact your Safety Vision Account Executive for URL and login information to access Safety Vision’s FTP site.) 2. Launch the SV Installer If prompted by firewall or anti-virus application, allow the file to install. -
Page 14: Launch The Sv Windows Application
To the right are the LAN ports IP addresses based off LAN PORT IP ADDRESS Safety Vision Windows LAN configuration. (If using a LAN (Back of NVR) 192.168.0.10 different LAN configuration, use the IP address you created LAN 1 (Front of NVR) 192.168.0.11 for the LAN port that PC is connected to.) -
Page 15: Help Windows
ROADRECORDER 8400 NVR USER GUIDE Help Windows Each screen in the RoadRecorder 8400 NVR configuration interface includes a comprehensive help menu. The help menus explain the functionality and parameters of each field. To access the help menu for a screen, simply click the Help button at the top right of the screen. -
Page 16: Startup & Shutdown
ROADRECORDER 8400 NVR USER GUIDE Startup & Shutdown The Startup & Shutdown page configures conditions when the NVR can automatically start and shut down. Startup Enable Ignition Boot and Record If enabled, ignition above threshold value will be counted as a start-up condition and recording will be done for user-configurable duration. -
Page 17: Poe Settings
ROADRECORDER 8400 NVR USER GUIDE PoE Settings The PoE Settings page configures the PoE ports of the NVR. PoE Control If the checkbox is checked, PoE port is active and is receiving power. If not utilizing a PoE port, uncheck the checkbox to turn off power to selected port. -
Page 18: Sensor Inputs
ROADRECORDER 8400 NVR USER GUIDE Sensor Inputs The Sensor Inputs page configures settings for the sensors. Sensor Inputs Select the number of triggers between 1 to 4. Name The NVR has trigger inputs, and for easy identification these trigger inputs can be configured to have user defined names which can be entered in this field for a particular trigger input. -
Page 19: Relay Outputs
ROADRECORDER 8400 NVR USER GUIDE Relay Outputs Relay Outs Users can select from 1 to 4 Relay Outs to display and control. Status This column shows current state of each Relay out. User can control state of each Relay out which is ON or OFF. -
Page 20: Recording Settings
ROADRECORDER 8400 NVR USER GUIDE Recording Settings Select directory to store metadata file Click Browse and select the location to which you want to store metadata files. Metadata Files Retention Options There are two options provided for Metadata file retention: •... -
Page 21: Date / Time Settings
ROADRECORDER 8400 NVR USER GUIDE Date / Time Settings The Date / Time settings page configures the NVR’s time zone. Timezone In the drop-down menu, select a default region of time zone. The new default time zone will be used next reboot onwards. -
Page 22: Temperature
ROADRECORDER 8400 NVR USER GUIDE Diagnostics The Diagnostics page provides detailed information regarding the current status of the recorder and the accessories connected to it. This information can be useful when troubleshooting certain issues. All of the fields in the Diagnostics page are for display only and cannot be changed. -
Page 23: Gps
ROADRECORDER 8400 NVR USER GUIDE The GPS page shows the current GPS information. All of the fields in the GPS page are for display only and cannot be changed. NOTE: Page will refresh at every 1 sec. GPS Status • GPRMC: Recommended minimum specific GPS/ Transit data. -
Page 24: Appendix A: Specifications
ROADRECORDER 8400 NVR USER GUIDE Appendix A: Specifications SPECIFICATIONS Part No. 8400-NVR OS Support Windows: XP embedded ; Win7 Pro FES/Embedded; Win8; Win10 Processor Intel® Core™ i7 processor Cameras Supported Up to 16 IP cameras via 4 × IEEE 802.3af PoE ports 3 ×... -
Page 25: Appendix B: Dimensions
ROADRECORDER 8400 NVR USER GUIDE Appendix B: Dimensions... -
Page 26: Fcc Compliance Statement
ROADRECORDER 8400 NVR USER GUIDE FCC Compliance Statement NOTE This device has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 27 CORPORATE HEADQUARTERS 6100 W. Sam Houston Pkwy. N. Houston, TX 77041-5113 Main: 713.896.6600 Toll Free: 800.880.8855 Fax: 713.896.6640 www.safetyvision.com...
