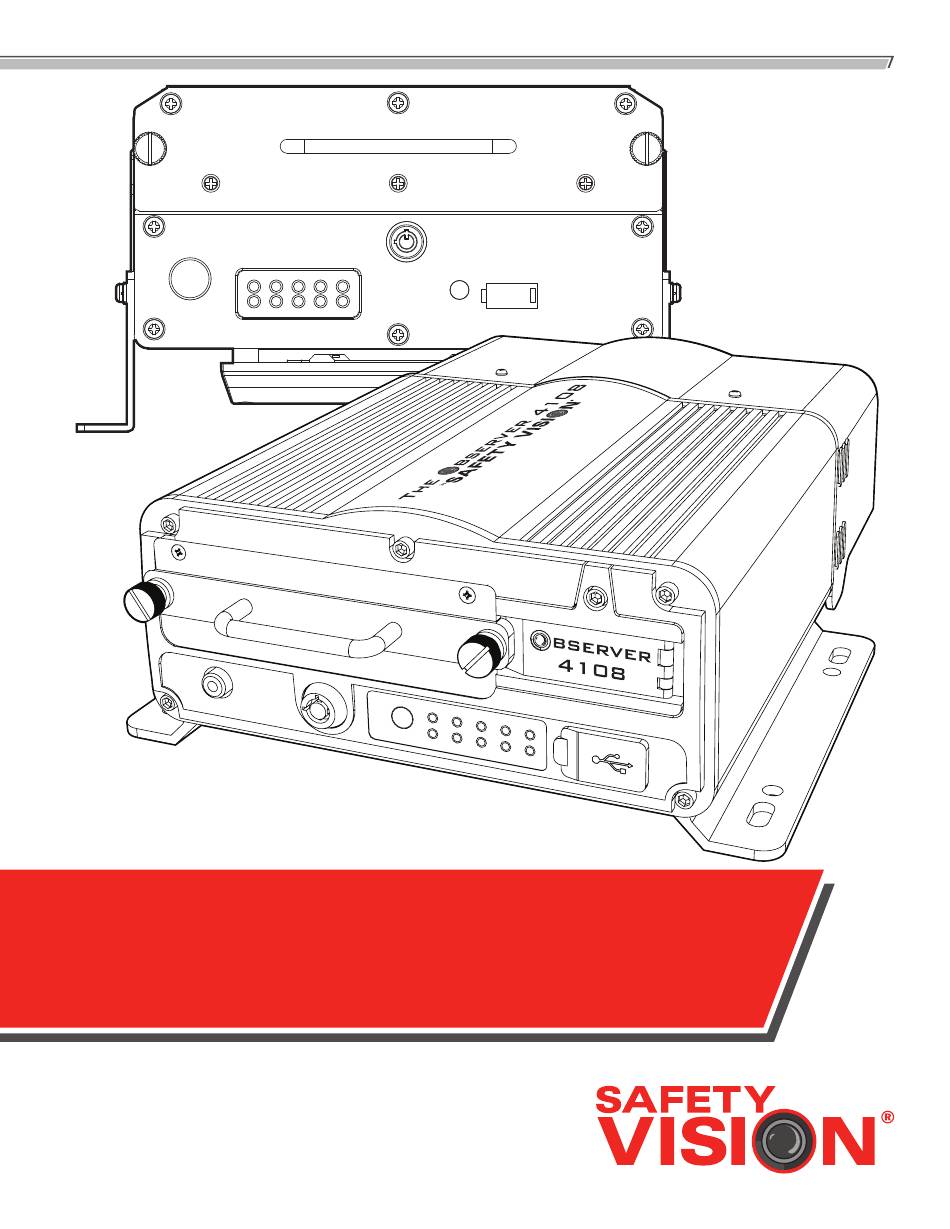

A/V OUT VLOSS ALM V ID E O H D D O U T G P S N E T H T R P W R R E C V L O S S A L M E R R OBSERVER™...
Page 2
Safety Vision. Safety Vision® is a registered trademark of Safety Vision, LLC. All other products or name brands mentioned in this document are trademarks of their respective owners. For more information about Safety Vision and its products, go to www.safetyvision.
Page 3
OBSERVER SERIES USER GUIDE Table of Contents Components Main Wiring Diagram Installation Remote Control Live View Menu Navigation Video Playback Exporting Video Files Configuration System Menu Record Menu Network Menu Event Menu Peripheral Menu System Information Appendix A: Web Application Manager...
Page 4
OBSERVER SERIES USER GUIDE OBSERVER SERIES USER GUIDE Observer 4116 Observer 4108 Components 1 - Removable Hard Drive - The hard disk drive (HDD) STATUS LEDS provides the main storage for recorded data. Do not over- Flashes when HDD is being accessed tighten the thumb screws.
Page 5
OBSERVER SERIES USER GUIDE Observer 4108 Observer 4116 1 - Cell Modem Antenna Port - Connection for an external antenna for the internal wireless module (under development) 2 - WiFi Antenna Port - Connection an external antenna for the internal WiFi module.
Page 6
OBSERVER SERIES USER GUIDE Hard Drive Removal (Observer 4108) To remove the hard drive from the DVR: Ensure the DVR is powered off. Insert the key into the hard drive lock and turn it counter-clockwise. Turn the two hard drive thumb screws counter-clockwise until they are loose.
Page 7
OBSERVER SERIES USER GUIDE Hard Drive Removal (Observer 4116) To remove the hard drive from the DVR: Ensure the DVR is powered off. Insert the key into the hard drive lock and turn it counter-clockwise. Turn the two hard drive thumb screws counter-clockwise until they are loose.
Page 8
OBSERVER SERIES USER GUIDE OBSERVER SERIES USER GUIDE Main Wiring Diagram Wiring Harness Connections Recommended Sensor Connections (12V) Observer 4108 Sensor 8 Stop Arm Lights (school bus) Sensor 7 Amber Warning Lights (school bus) Sensor 6 Door (or wheel chair lift)
Page 9
OBSERVER SERIES USER GUIDE Observer 4116...
Page 10
OBSERVER SERIES USER GUIDE Installation Flat Mount Secure the DVR to the surface with self-tapping screws or rivets. Ensure that the front panel of the DVR remains accessible and there is a minimum 2.5 inches of clearance for cables.. Do not...
Page 11
OBSERVER SERIES USER GUIDE Panic Button An optional panic button module is available. The panic button provides an additional status LED display, remote control sensor, and external monitor output in addition to the panic button. When the panic button module is installed,...
Page 12
OBSERVER SERIES USER GUIDE CP3 Monitor CP4 Monitor...
Page 13
OBSERVER SERIES USER GUIDE Remote Control Pause/Step - During video playback, press this key to pause the video. Press this key again to advance video playback by one frame. The Observer remote control is used to navigate through the configuration menus or to control video playback on an Play - Press this key to resume regular speed video playback external monitor.
Page 14
OBSERVER SERIES USER GUIDE Live View Attach an external monitor to the front RCA port while the DVR is on to view the Live View. Menu Navigation Press the Setup or Login/Lock keys on the remote control while an external monitor is connected to access the DVR menu.
Page 15
OBSERVER SERIES USER GUIDE Video Playback To view recorded video with an attached external monitor, use the remote to access the menu, then select the first icon. The All Files and Event Files options appear. Select the All Files option to review all recorded video stored.
Page 16
OBSERVER SERIES USER GUIDE Event Files SEL: Use the arrow and Enter keys on the remote control to select or unselect each file. Selected files can then be exported. Multiple files can be selected at one time. EVENT NAME: Displays the type of event that triggered the video recording.
Page 17
OBSERVER SERIES USER GUIDE Exporting Video Files Video files can be exported to a USB thumb drive inserted into the USB port on the front of the DVR. To manually export video files, use the following procedure: Select each file you want to export in the SEL column.
Page 18
OBSERVER SERIES USER GUIDE Configuration Select the Configuration icon to display the System, Record, Network, and Event menus. These menu options allow you to configure how the DVR operates, in addition to setting passwords and updating the firmware. System Menu...
Page 19
OBSERVER SERIES USER GUIDE General The General menu determines the behavior of the DVR upon start up and shutdown, in addition to other controls. ON/OFF TYPE: Select TIMER to display the START UP TIME, SHUT DOWN TIME, and BOOT UP ON SCHEDULE fields.
Page 20
OBSERVER SERIES USER GUIDE Register Info The Register menu includes the assorted serial numbers and names unique to the DVR for identification. UNIT S/N: The DVR’s serial number. This number is unique and cannot be changed. UNIT ID: The DVR’s identifying number.
Page 21
OBSERVER SERIES USER GUIDE Format Formatting a device erases all existing data, including recorded video. Use the following procedure to format a device: Use the arrow keys on the remote control to select a device from the drop-down menu. Available devices include SD (inserted SD card), or USB (inserted USB flash drive).
Page 22
OBSERVER SERIES USER GUIDE Upgrade Periodically Safety Vision releases new firmware updates for the DVR to increase functionality and features. The ONEKEY UPGRADE feature is still in development at this time. Use the following procedure to update the DVR firmware: Obtain the firmware update file from Safety Vision Technical Support.
Page 23
OBSERVER SERIES USER GUIDE User Security The User Security menu controls the password needed to access the DVR menus. PASSWORD ENABLE: Select ON to require a password to access the DVR’s menus; select OFF to disable this feature and allow free access.
Page 24
OBSERVER SERIES USER GUIDE Config The Config menu allows you to export to or import from a USB drive all of the DVR’s settings, which is useful when configuring multiple units in the same manner or creating a backup. DEFAULT SETTINGS: Select RESTORE to revert all settings tot he factory defaults.
Page 25
OBSERVER SERIES USER GUIDE System Log The System Log menu allows the user log or pictures to be exported or deleted. The system log file contains a log of which users accessed the DVRs configuration menus and at what time and date.
Page 26
OBSERVER SERIES USER GUIDE Record Menu The Record Menu contains parameters that control how video is recorded. Options (Page 1) The Options menu contains most of the parameters that control how long and when the DVR records video. VIDEO TYPE: Select NTSC or PAL.
Page 27
OBSERVER SERIES USER GUIDE Options (Page 2) METADATA CAPTURE: Select ON to record meta-data with recorded video. Select OFF to record video only. HDD/SD OVERWRITE: Select ON to overwrite the oldest video existent on the storage media when storage space is near capacity.
Page 28
OBSERVER SERIES USER GUIDE OSD Overlay The OSD Overlay menu selects what elements appear on the on-screen display. Select OFF or ON from the LIVE VIEW column to display the associated element when you press the Enter key on the remote control when the DVR is in Live View.
Page 29
OBSERVER SERIES USER GUIDE Camera Settings The Camera Setting menu controls which cameras are recorded and displayed in the live view. Select the following for each camera: ENABLE: Select ON to enable recording of this camera. NAME: Enter an optional alphanumeric name for each specific camera.
Page 30
OBSERVER SERIES USER GUIDE Record Setting The Record Setting menu controls the framerate and resolution of recorded video. Each camera’s parameters can be set independently. Select the following for each channel: RES: Select the resolution of this camera. Select from D1 (704×576), HD1 (704×288), or CIF (354×288).
Page 31
OBSERVER SERIES USER GUIDE Sub-Streaming The Sub-Streaming menu is similar to the Record Setting menu, except it controls the quality of video when networked with the Observer Management System (OMS). BANDWIDTH: Select a bit-rate (in Kbps) consistent with your agency’s wireless hardware.
Page 32
OBSERVER SERIES USER GUIDE Schedule The Schedule menu allows to the DVR to begin and end recording automatically based on a timed schedule. In the DATE column to select from EVERY (every day), WEEKDAY (Monday thru Friday) or individual days.
Page 33
OBSERVER SERIES USER GUIDE Cameo-Camera Settings The Cameo-Camera Settings menu controls the cameo camera feature. Select ON in a channel’s respective ENABLE field to turn on the cameo functionality. The selected channel’s camera is then turned off during normal operation, and only turns on when an alarm is triggered.
Page 34
OBSERVER SERIES USER GUIDE Other Settings The Other Settings menu controls video encryption and the view on an attached monitor when the DVR first boots up. BOOT UP DEFAULT LIVE: Select LIVEVIEW to view live feeds of the connected cameras, or CP3 MENU...
Page 36
OBSERVER SERIES USER GUIDE Network Menu The Network Menu contains parameters that define how the DVR interacts with computers and the Observer Management System (OMS). Local The Local menu controls network information for the DVR unit when configuring networks. Use the number keys on the remote...
Page 37
OBSERVER SERIES USER GUIDE Cellular The Cellular menu contains the settings of an optional external cellular modem. IP: Enter the IP address of the modem. PORT: Enter the Port number of the modem. PHONE NUMBER: Enter the phone number of the modem.
Page 38
OBSERVER SERIES USER GUIDE Server Network The Server Network screen configures server information when communicating with the Message Server, part of the Observer Management System. CENTER SERVER 1/2: Up to two servers can be set up at the same time, such as a WiFi or cabled network and a 4G or 3G cellular network.
Page 39
OBSERVER SERIES USER GUIDE WiFi The WiFi menu controls settings of the wireless access point the DVR communicates with. Select ON in the ENABLE field and use the number keys on the remote control to enter the following: GET IP TYPE: Select STATIC IP for WiFi networks requiring a static IP address.
Page 40
OBSERVER SERIES USER GUIDE Mobile Network The Mobile Network menus configure assorted optional wireless modules. First select the mode type. If you are using a cabled or WiFi network, select NONE. Then Select ACTIVE MODE, DIAL PARAMETER, or INTERCOM SETTINGS to open those submenus.
Page 41
OBSERVER SERIES USER GUIDE Dial Parameter The Dial Parameter submenu configures SIM card settings. Please check with the manufacturer of your SIM card for the following information and enter them in the appropriate fields: USER NAME PASSWORD ACCESS NUMBER Intercom Settings Select ON to enable the intercom function while using a SIM card.
Page 42
OBSERVER SERIES USER GUIDE FTP Settings The FTP Settings screen allows a password to be configured when the DVR is used as an FTP server. PASSWORD ENABLE: Select ON to enable security for the FTP feature. USERNAME: Enter an alphanumeric username.
Page 43
OBSERVER SERIES USER GUIDE Event Menu The Event Menu contains parameters that control connected sensor inputs and how events are recorded. Sensor The Sensor menu controls each sensor input that triggers events. The DVR supports up to eight inputs and can configure each one individually.
Page 44
OBSERVER SERIES USER GUIDE Sensor Trigger Action Select NEXT PAGE on the Sensor menu to access this menu. The Sensor Trigger Action menu allows a channel to be displayed in fullscreen when an event is triggered. For each sensor, select a channel to displayed in the FULL SCREEN field when that sensor is active.
Page 45
OBSERVER SERIES USER GUIDE Sensor Alarm Output The Sensor Alarm Output menus select which outputs are active when certain alarms are triggered. For each alarm type, select ON or OFF for outputs 1 and 2 (OUT1 and OUT2). OVERSPEED, LOW SPEED, HIGH TEMP., LOW TEMP.,...
Page 46
OBSERVER SERIES USER GUIDE Speed The Speed menu controls the speed type (SPDL and SPDO) events. Use the remote control to configure the following options: SPEED SOURCE: Select VEHICLE to obtain vehicle speed data from the vehicle’s own speedometer, or GPS to obtain this data from the GPS signal.
Page 47
OBSERVER SERIES USER GUIDE Acceleration The Acceleration menu controls the thresholds of the DVR’s accelerometers that trigger an overshock (SHK) event. Use the remote control to configure the following options: EN: Select ON to enable the SHK event. Select OFF to disable it.
Page 48
OBSERVER SERIES USER GUIDE Temperature The Temperature menu controls the thresholds of the DVR’s internal thermometers. TEMERATURE UNIT: Select F for Fahrenheit. Select C for Celsius. Use the remote control to configure the following options: ENAB: Select ON to enable this alarm.
Page 49
OBSERVER SERIES USER GUIDE Camera The Camera menu controls camera motion detection settings and associated events. Use the remote control to configure the following options: MOTION DETECT SETTINGS CH ID: Select the channel to configure the following settings. M.D. SENSITIVE: Select the sensitivity of the motion detection feature, with 3 being the most sensitive.
Page 50
OBSERVER SERIES USER GUIDE Low Voltage Protection The Low Voltage Protection menu controls the voltage threshold before the DVR shuts down automatically to protect itself. Use the remote control to configure the following: ENABLE: Select ON to enable voltage protection.
Page 51
OBSERVER SERIES USER GUIDE Emergency Event The Emergency Event menu controls events relating to the panic button module. Use the remote control to configure the following: EN: Select ON to enable the panic button module. Select OFF to disable it.
Page 52
OBSERVER SERIES USER GUIDE Peripheral Menu The Peripheral Menu contains parameters that control optional connected peripheral accessories. The PTZ Setup menu provides configuration options for advanced optional cameras. Consult with the camera manufacturer for the following information: Protocol Baud Rate...
Page 53
OBSERVER SERIES USER GUIDE Ext. Com. Setup The Ext. Com. Setup menu enables optional connections to a control panel, acceleration sensor, or panic button. Use the remote control to configure the following for each individual input: COM1: Select the device connected to the 232RXD-1 and 232TXD-1 terminals.
Page 54
OBSERVER SERIES USER GUIDE Smart Battery Settings The Smart Battery Settings menu configures the optional Smart Battery. The Smart Battery is in development at this time.
Page 55
OBSERVER SERIES USER GUIDE System Information Select the System Information icon to display the System, History, Modules, and Authorized menus. These menu options display unique information and history about the DVR unit. System The System menu displays the firm- ware version and information on the SD card.
Page 56
OBSERVER SERIES USER GUIDE History Info The History Info menu consists of three pages. Select CLEAR next to any record to reset it. HIGHEST SPEED IN HISTORY: Displays the highest obtained speed, including the date and time it was recorded (assuming speed data is collected).
Page 57
OBSERVER SERIES USER GUIDE Modules Status The Modules menu displays the status of optional installed modules. GPS MODULE: Displays NORMAL if a GPS module is installed; NONE is one is not. GPS SIGNAL: Displays if the GPS signal received is valid.
Page 59
OBSERVER SERIES USER GUIDE Appendix A: Web Application Manager The DVR includes a web server, called the Web Application Manager, that can be accessed with a Windows based PC and browser. The Web Application Manager includes Live View, Playback, Setup (Configuration) and Maintenance menus.
Page 60
OBSERVER SERIES USER GUIDE Live The Live tab displays the current camera’s views similar to the Live View on an external monitor, with the added features of the Play & Control menu in the lower right corner of the screen: OPEN WINDOW: Refreshes camera feeds when configuring camera views.
Page 61
OBSERVER SERIES USER GUIDE Setup The Setup tab contains all of the configuration parameters available in the menus. Use the tree control on the left of the screen to navigate menus. See the corresponding menu description for information regarding inputs and controls. Remember to click SAVE, then Apply to complete parameter changes.
Page 62
OBSERVER SERIES USER GUIDE Appendix B: Specifications SPECIFICATIONS SPECIFICATIONS Observer® 4108 Observer® 4116 Embedded Real Time Linux Operating System Embedded Linux system Configuration IR Remote (included); CP3, Network A/V Inputs (SV threaded connector) Audio: 16 channels (SV threaded connector) Video: 16 channels...
Page 63
OBSERVER SERIES USER GUIDE Appendix C: Recording Time Calculator HDD CAPACITY CALCULATIONS Resolution Frames Per Second Recording Quality 1CH 1 Hour size(M) 1 Day size(G) 500G HDD recording Time(Day) 12.5 Support Resolution : D1/HD1/CIF Record Quality : 1 is best/ 8 is normal...
Page 64
OBSERVER SERIES USER GUIDE Appendix D: Dimensions Observer 4108 Observer 4116...
Page 65
OBSERVER SERIES USER GUIDE Limited 3-Year New Product Warranty Safety Vision, LLC (“SV”) makes the following limited warranty, which is effective at the time of the original end-user purchase. Note: Optional warranty products are available for all SV products and may be pur- chased at the time of the original end-user purchase or any time during the original Limited 3-Year New Product Warranty period.
Page 66
OBSERVER SERIES USER GUIDE FCC Compliance Statement NOTE This device has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
