Configuring the Unit via its Web Interface
Receivers (Inputs)

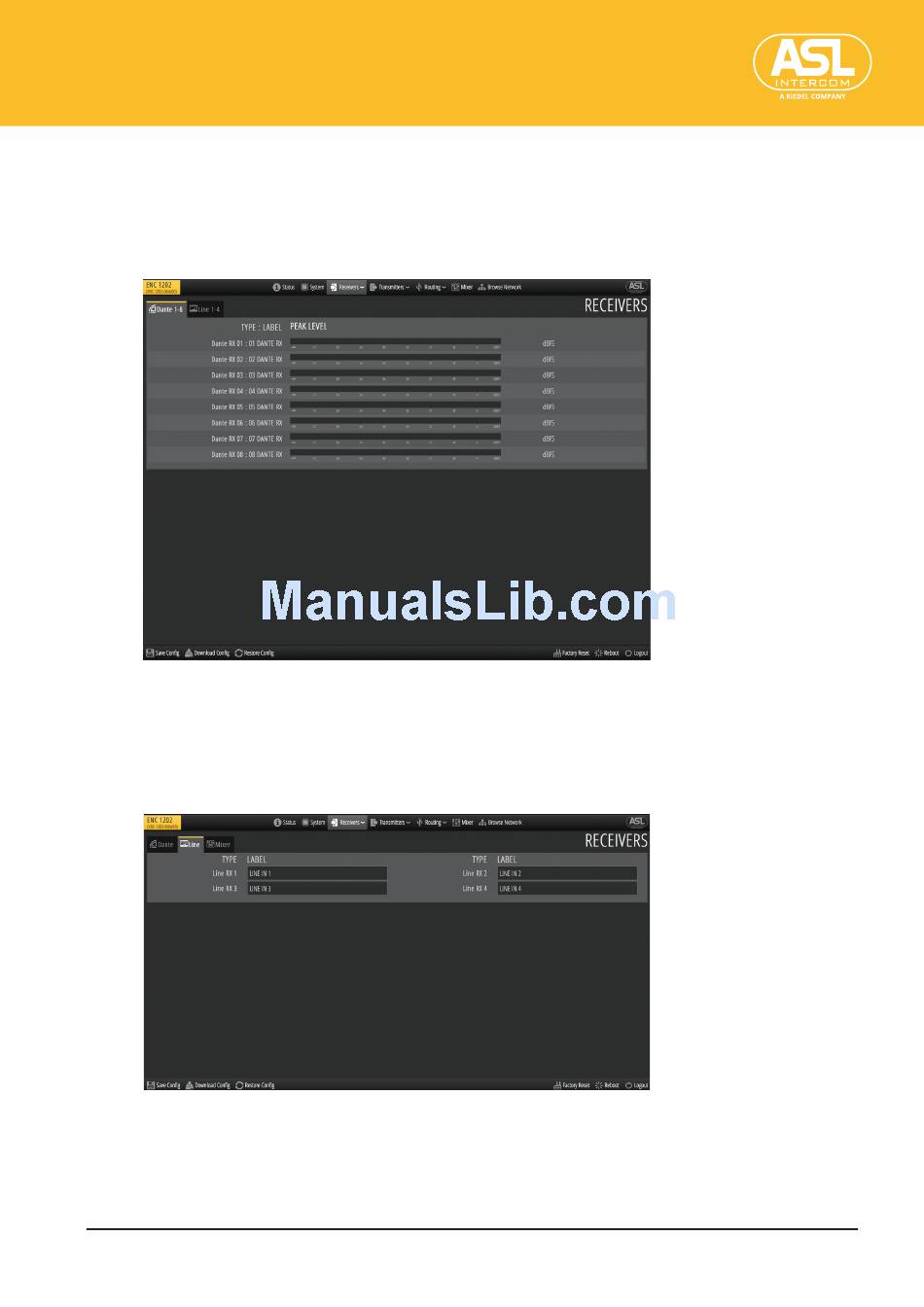

4.5.2 Receivers (Inputs) > Metering
This is where the current peak levels are displayed for all of the ENC 1202's inputs.
Use the tabs to switch between the "Dante 1–8" and "Line 1–4" groups.
The tabs allow you to view the levels (–126dBFS~0dBFS) of the corresponding input chan-
nels. The levels of the Line inputs can be changed using "Trim" (p. 29).
4.5.3 Receivers (Inputs) > Labels
By default, all input channels have names based on their types, like "01 DANTE RX" for the
first Dante input. This pane allows you to assign more meaningful names.
The channels are grouped by type and displayed on separate tabs. Be sure to check
whether you have selected the correct tab before changing any labels.
Type
Channel type and its number.
ENC 1202
Version 1.0
Page 32
