Kusam-meco KM 1002 User Manual

An ISO 9001:2008 Company
KM 1002 Digital Clampmeter has been designed & tested according to IEC
publication 61010:Safety requirements for electronic measuring Apparatus.
User Manual contains warnings & safety rules which must be observed by the
user to ensure safe operation of the instrument & retain it in safe condition.
Therefore read through these operating instructions before using the instrument.
FEATURES :
í Safety design conforming to the IEC61010.
í Data hold switch for easy reading in dimly
light or hard-to-read locations.
í Beeper permits easy continuity check.
í Provides a dynamic range of 4,000 counts full scale.
GENERAL SPECIFICATIONS :
— Display : 3½ Digit 1999 counts Liquid crystal display.
— Low Battery Warning shown on the display.
— Over range indication : "OL" is shown on the display.
— Response time : Approx. 3 seconds.
— Sample Rate : about 3 time per second
—
Temperature & Humidity for guaranteed Accuracy :
23 ± 5°C, relative humidity upto 85% without condensation.
— Current consumption : approx. 1mA max.
— Standards : IEC61010-1
—
Withstand Voltage : 3700V AC (RMS 40~50Hz) for
1 minute between electrical circuit & housing case.
AC CURRENT (40 ~ 400Hz)
Range
Resolution
2 A 1 mA
20 A 10 mA
400 A 100 mA
RESISTANCE
Range
Resolution
200 W 0.1 W
2 kW 1 W
20 kW 10 W
200 kW 100 W
2 MW 1 kW
20 MW 10 kW
®
An ISO 9001:2008 Company
Chhaya com/D/chhaya/my documents/chhaya/backup/catlog/New catlog/2015 new arrival catalogs/KM 1001.cdr

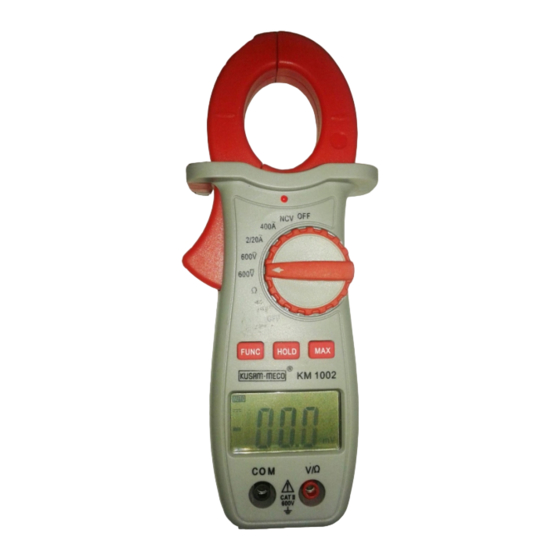

400A AC DIGITAL CLAMPMETER
í Uses shrouded transformer jaws to further improve safety.
í Non-contact Voltage sensing.
í Data Hold & MAX Function.
í Auto Power Off.
í Diode & Continuity Test.
— Insulation Resistance : 10M or greater at 600V between
electrical circuit & housing case.
— Operating
without condensation.
— Storage
without condensation.
—
Power Supply : 2 AAA or DC 1.5V battery.
—
Dimension : 186(L) x 65(W) x 28.5(D)mm
— Weight : approx. 166g. (including battery)
— Accessories : Test lead,
ELECTRICAL SPECIFICATIONS :KM 1002
AC VOLTAGE (40 ~ 400Hz)
Accuracy Range
2
±(2.5% rdg + 5 dgts)
20
200 V
600 V
Accuracy DC VOLTAGE
Range
200 mV
2
±(1.2% rdg + 3 dgts)
20
200 V
600 V
G-17, Bharat Industrial Estate, T. J. Road, Sewree (W), Mumbai - 400 015. INDIA.
Sales Direct.: 022-24156638,
Email : kusam_meco@vsnl.net,
MODEL-KM 1002
Temperature & Humidity : 0°C ~ 40°C; 85% R.H.
Temperature & Humidity : -20°C ~ 60°C; 85% R.H.
User Manual, Battery & Carrying case.
Accuracy
Resolution
V 1 mV
V 10 mV
±(1.2% rdg + 3 dgts)
100 mV
1 V
Accuracy
Resolution
0.1 mV
V 1 mV
±(0.8% rdg + 3 dgts)
V 10 mV
100 mV
1 V
All Specifications are subject to change without prior notice.
Tel. : 022-24124540, 24181649,
Preliminary Data
DIODE & CONTINUITY TEST
Range Displaying Value
Forward voltage
drop of diode
If the resistance
is less than 50W,
buzzer sounds
Range
Test Condition
Forward DCA is approx.
1mA, backward
voltage is approx. 3V
Open voltage is
approx. 3V
Fax : 022-24149659
Website : www.kusamelectrical.com
