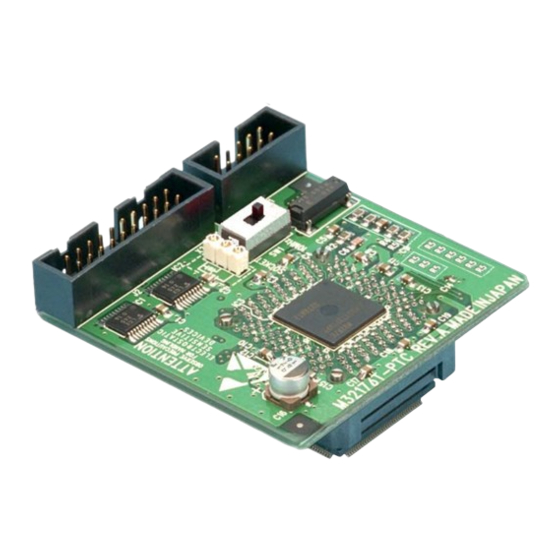

    1. Outline The M32176T-PTC is a converter board for featuring the debugging function such as real-time tracing when using the SDI emulator, M32170T-SDI, M32100T-SDI-E, M32100T2-SDI-E or M32100T3-SDI-E with the M32176FxxFP. 2. Package Components (1) M32176T-PTC converter board (2) YQPACK144SD (made by Tokyo Electech Corporation)

  • Page 5: Connection Procedure

    (4) Set the clock select switch. Refer to "6. Selecting a Clock" on page 5. (5) Mount the M32176T-PTC on the YQPACK144SD. (6) Connect the emulation pod probe to the M32176T-PTC via the SDI MCU control interface cable and the SDI trace interface cable.
  • Page 6 5.2 On-board Evaluation (1) Mount the NQPACK144SD-ND on the user system (2) Mount the M32176FxxFP on the NQPACK144SD-ND. (3) Mount the HQPACK144SD on the NQPACK144SD-ND. HQPACK144SD (separately available) M32176FxxFP NQPACK144SD-ND : No.1 pin Be sure to match the position of No. 1 pin of the foot pattern and each part.
  • Page 7 Figure 6.1 shows the connecting the X2 socket and the MCU. 7. External Dimensions and a Sample Foot Pattern of the M32176T-PTC Figure 7.1 External dimensions and a sample foot pattern of the M32176T-PTC Figure 6.1 Connection diagram of X2 socket (5/6)

  • Page 8: Cautions To Be Taken For This Product

    For the precautions for the combination of the emulator, refer to the user’s manual of each emulator. Cautions for Differences between MCUs and This Product: For debugging, as the M32176F4VWG (512 KB internal Flash ROM) on the M32176T-PTC is used, be careful about the difference of the internal ROM size.
