Introduction
2
1

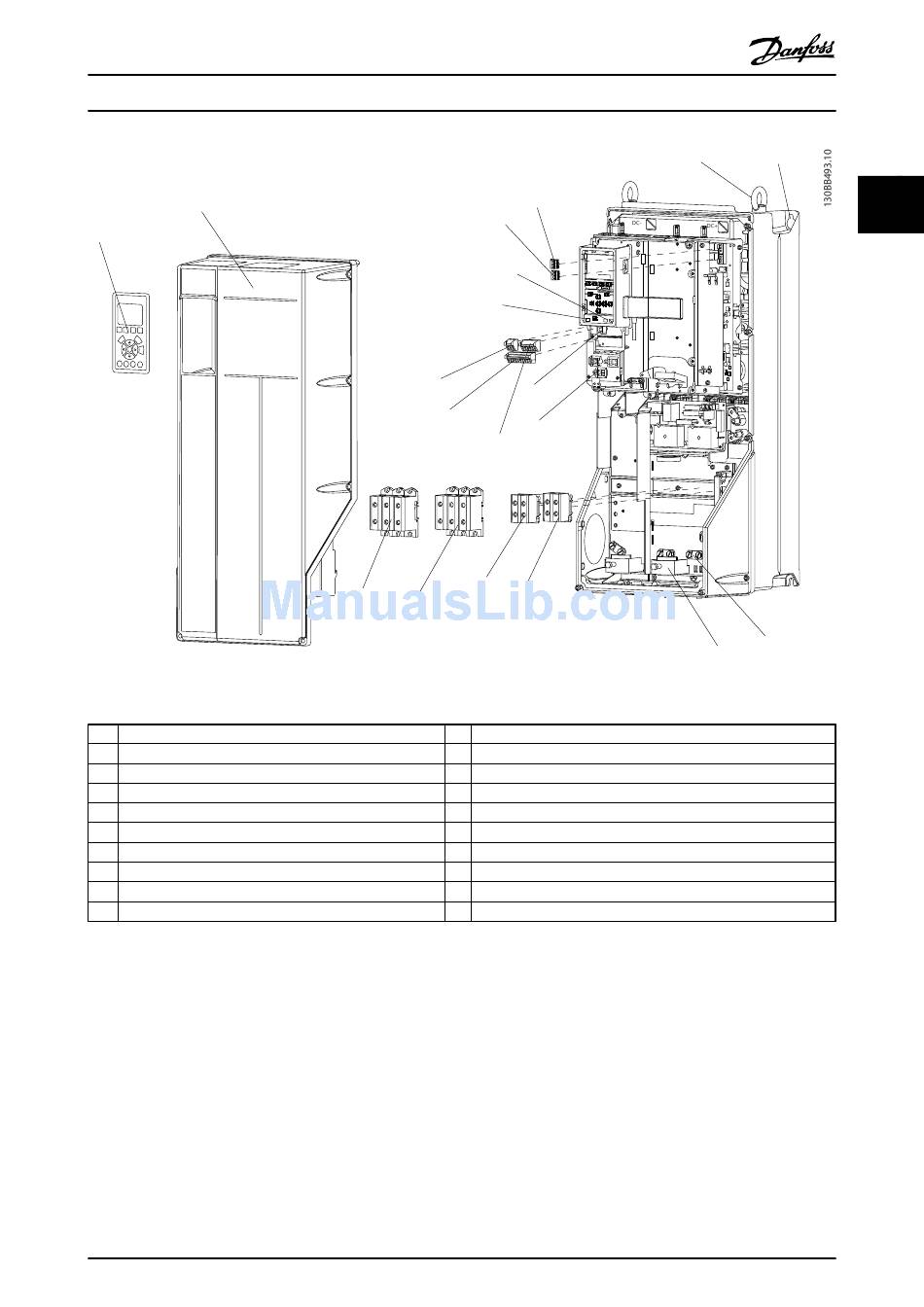

Illustration 1.2 Exploded View B and C Sizes, IP55/66
1 LCP
2 Cover
3 RS-485 serial bus connector
4 Digital I/O and 24 V power supply
5 Analog I/O connector
6 Cable strain relief/PE ground
7 USB connector
8 Serial bus terminal switch
9 Analog switches (A53), (A54)
10 Relay 1 (01, 02, 03)
Table 1.2 Legend to Illustration 1.2
VLT ® AutomationDrive Operating
Instructions
10
8
3
4
5
17
19
18
11 Relay 2 (04, 05, 06)
12 Lifting ring
13 Mounting slot
14 Grounding clamp (PE)
15 Cable strain relief/PE ground
16 Brake terminal (-81, +82)
17 Load sharing terminal (DC bus) (-88, +89)
18 Motor output terminals 96 (U), 97 (V), 98 (W)
19 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
®
