Introduction

1.1 Purpose of the Manual

This manual is intended to provide detailed information for
1 1
the installation and start up of the frequency converter.
provides requirements for mechanical and electrical instal-
lation, including input, motor, control and serial
communications wiring and control terminal functions.
provides detailed procedures for start up, basic operational
programming, and functional testing. The remaining
chapters provide supplementary details. These details
include user interface, detailed programming, application
examples, start-up troubleshooting, and specifications.

1.2 Additional Resources

Other resources are available to understand advanced
frequency converter functions and programming.
•
The VLT
detail on working with parameters and many
application examples.
•
The VLT
detailed capabilities and functionality to design
motor control systems.
•
Supplemental publications and manuals are
available from Danfoss.
See http://www.danfoss.com/BusinessAreas/Drives-
Solutions/Documentations/Technical
+Documentation.htm for listings.
•
Optional equipment is available that may change
some of the procedures described. Reference the
instructions supplied with those options for
specific requirements. Contact the local Danfoss
supplier or visit the Danfoss website: http://
www.danfoss.com/BusinessAreas/DrivesSolutions/
Documentations/Technical+Documentation.htm, for
downloads or additional information.
6
VLT
Instructions
®
Programming Guide provides greater
®
Design Guide is intended to provide
MG33AM02 - VLT
® AutomationDrive Operating

1.3 Product Overview

A frequency converter is an electronic motor controller
that converts AC mains input into a variable AC waveform
output. The frequency and voltage of the output are
regulated to control the motor speed or torque. The
frequency converter can vary the speed of the motor in
response to system feedback, such as position sensors on a
conveyor belt. The frequency converter can also regulate
the motor by responding to remote commands from
external controllers.
In addition, the frequency converter monitors the system
and motor status, issues warnings or alarms for fault
conditions, starts and stops the motor, optimizes energy
efficiency, and offers many more control, monitoring, and
efficiency functions. Operation and monitoring functions
are available as status indications to an outside control
system or serial communication network.

1.4 Internal Controller Functions

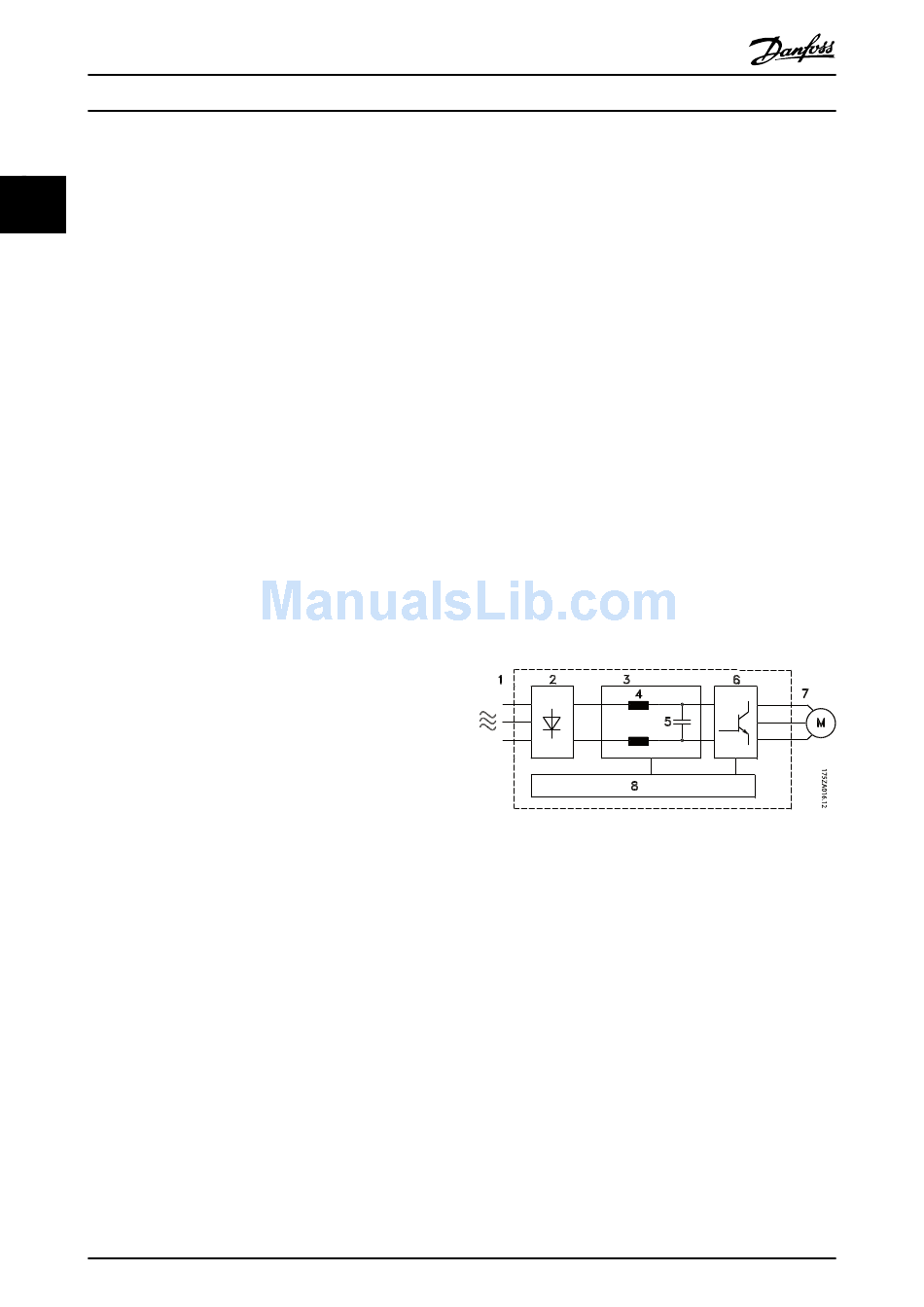

Illustration 1.3 is a block diagram of the frequency
converter's internal components. See Table 1.3 for their
functions.
Illustration 1.3 Frequency Converter Block Diagram
®
