Connecting MADI

The MADI ports are used for transmission of 64 audio channels (AES10).

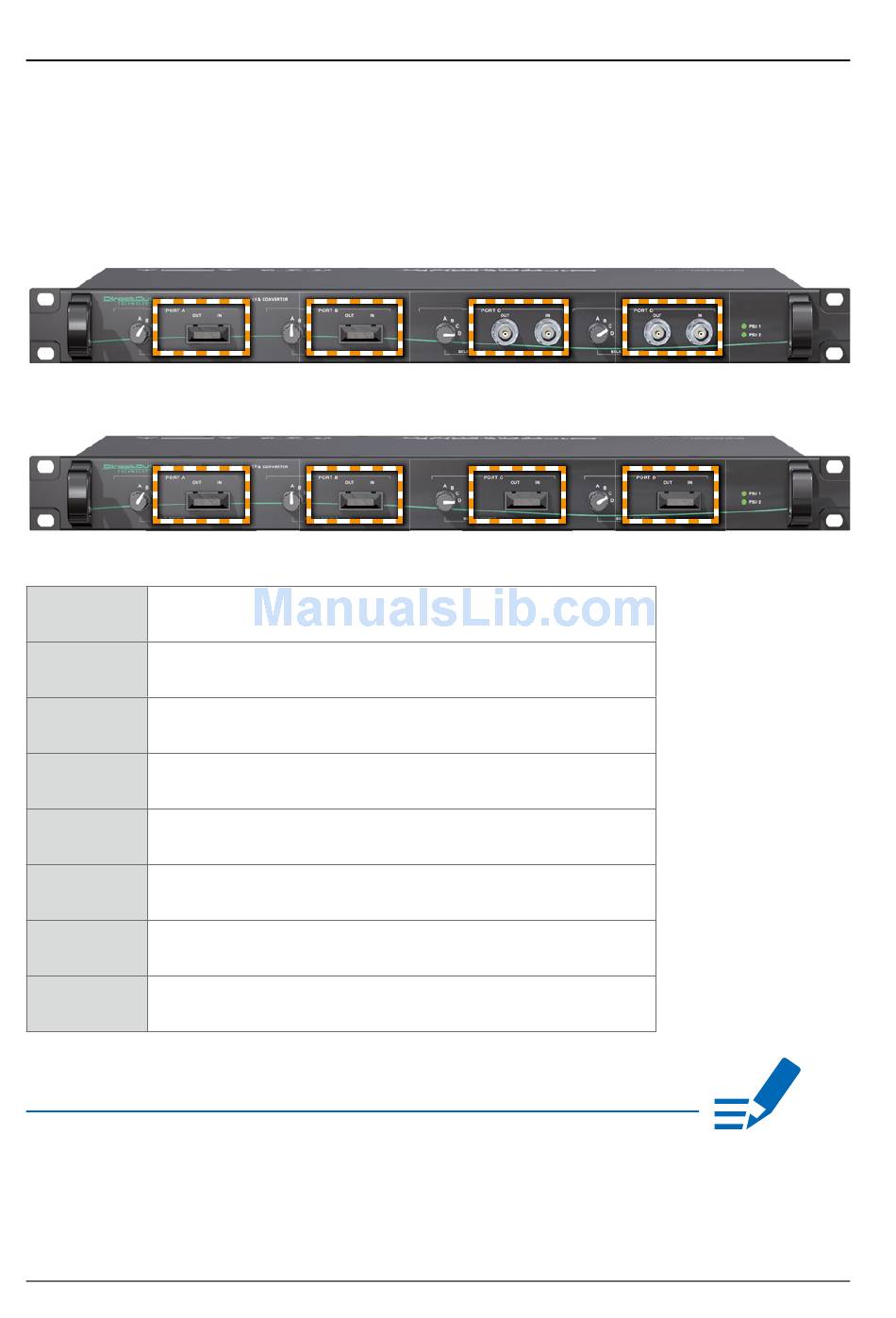

Two different MADI I/O confi gurations are available:
Version BNC / SC
Version SC / SC
PORT A SC socket (optical)
OUT MADI output (64 ch), connect for MADI output signal here
SC socket (optical)
PORT A
IN MADI input (64 ch), connect MADI input signal here
SC socket (optical)
PORT B
OUT MADI output (64 ch), connect for MADI output signal here
SC socket (optical)
PORT B
IN MADI input (64 ch), connect MADI input signal here
BNC socket (coaxial), 75 Ω or SC socket (optical)
PORT C
OUT MADI output (64 ch), connect for MADI output signal here
BNC socket (coaxial), 75 Ω or SC socket (optical)
PORT C
IN MADI input (64 ch), connect MADI input signal here
PORT D BNC socket (coaxial), 75 Ω or SC socket (optical)
OUT MADI output (64 ch), connect for MADI output signal here
PORT D BNC socket (coaxial), 75 Ω or SC socket (optical)
IN MADI input (64 ch), connect MADI input signal here
N OT E
SC Ports may be equipped with multi-mode or single-mode modules. Mixed
combinations offer the comfortable conversion between multi-mode and single-
mode I/Os. See „Examples" on page 19.
