2.1 Identifying an OIW EX Series Unit with a Spectrometer
The OIW-EX 100 software, see Figure 2, can be distinguished from the OIW-EX Series with
Spectrometer fitted, see Figure 1, primarily by the software header box, which clearly
identifies unit type in its header, shown below.
The following OIW-EX Series models all have Spectrometer fitted as standard
• OIW-EX1000,
• OIW-EX1000P and
• OIW-EX4000.
The following sections will detail the operation of the spectrum analyser unit and will provide
details on how to use the SpAn software – details will also be provided on the file format
should the use wish to analyse the data with alternative tools.
1
Though out the rest of this Handbook the term OIW-EX1000 is used; but this also covers all OIW-EX Series
with a Spectrometer fitted; i.e. OIW-EX1000, OIW-EX1000P and OIW-EX4000.
www.advancedsensors.co.uk Tel: +44(0)28 9332 8922. FAX +44(0)28 9332 8669

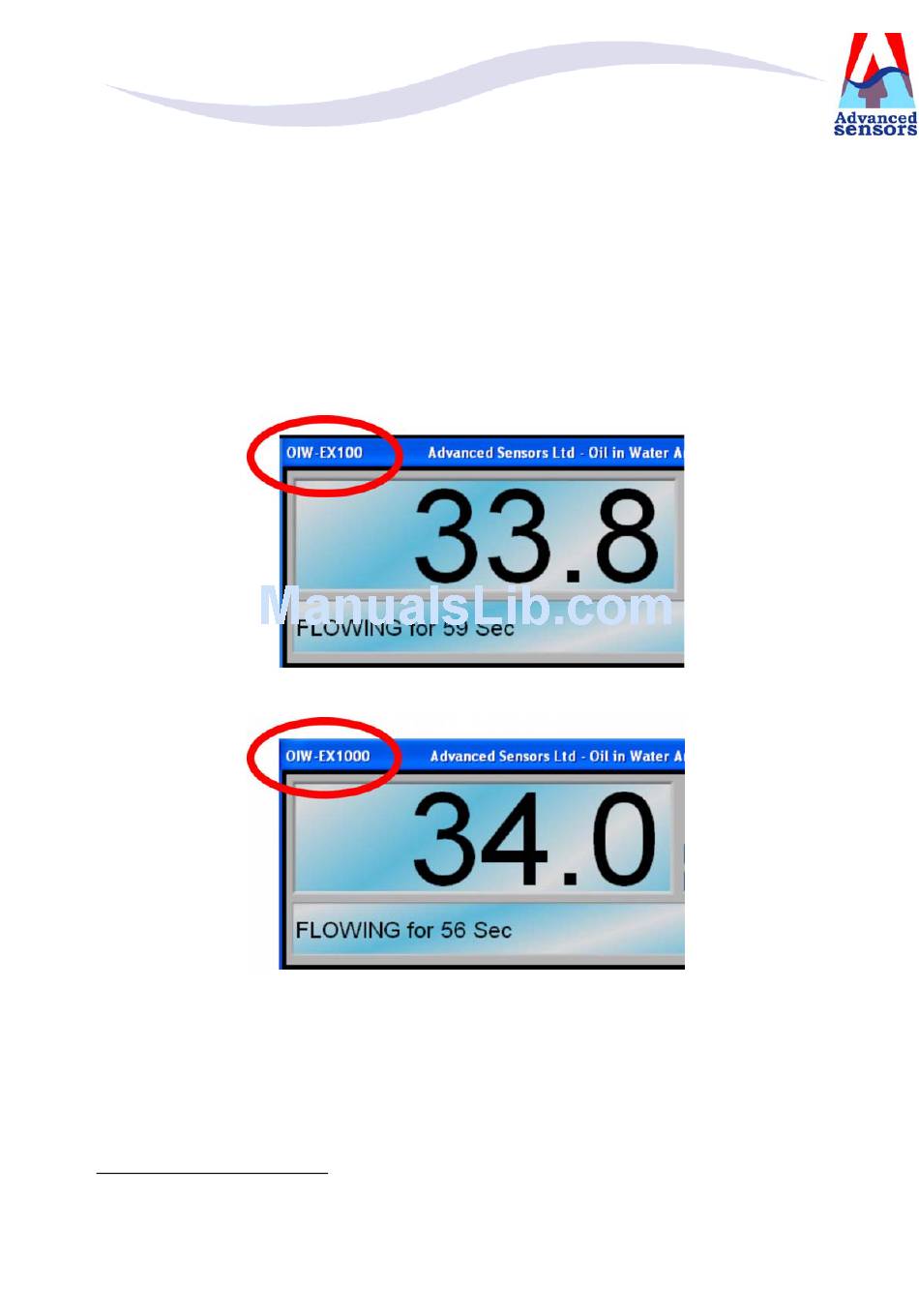

Figure 1. OIW-EX100 software
