Spectrum Control Options; Water Status Off/On - Advanced Sensors OIW-EX 1000 Handbook

OIW-EX 1000 - Spectrometer Handbook
Code: OIW-HBO-0005 Version: EX-002
Date: 18 March 2010

2.7 Spectrum Control Options

The spectrum analyser has three parameters that control the quality of the Spectra:
• Smoothing,
• Averaging, and
• Integration Time.
To access this option navigate to the Configuration Options tab, click the Schedule
button and select the Spectrometer Mask Settings tab on the Schedule Configuration
window, see Figure 16.

2.7.1 Water Status off/on

Water Status Alarm off
Water Status Alarm on
www.advancedsensors.co.uk Tel: +44(0)28 9332 8922. FAX +44(0)28 9332 8669

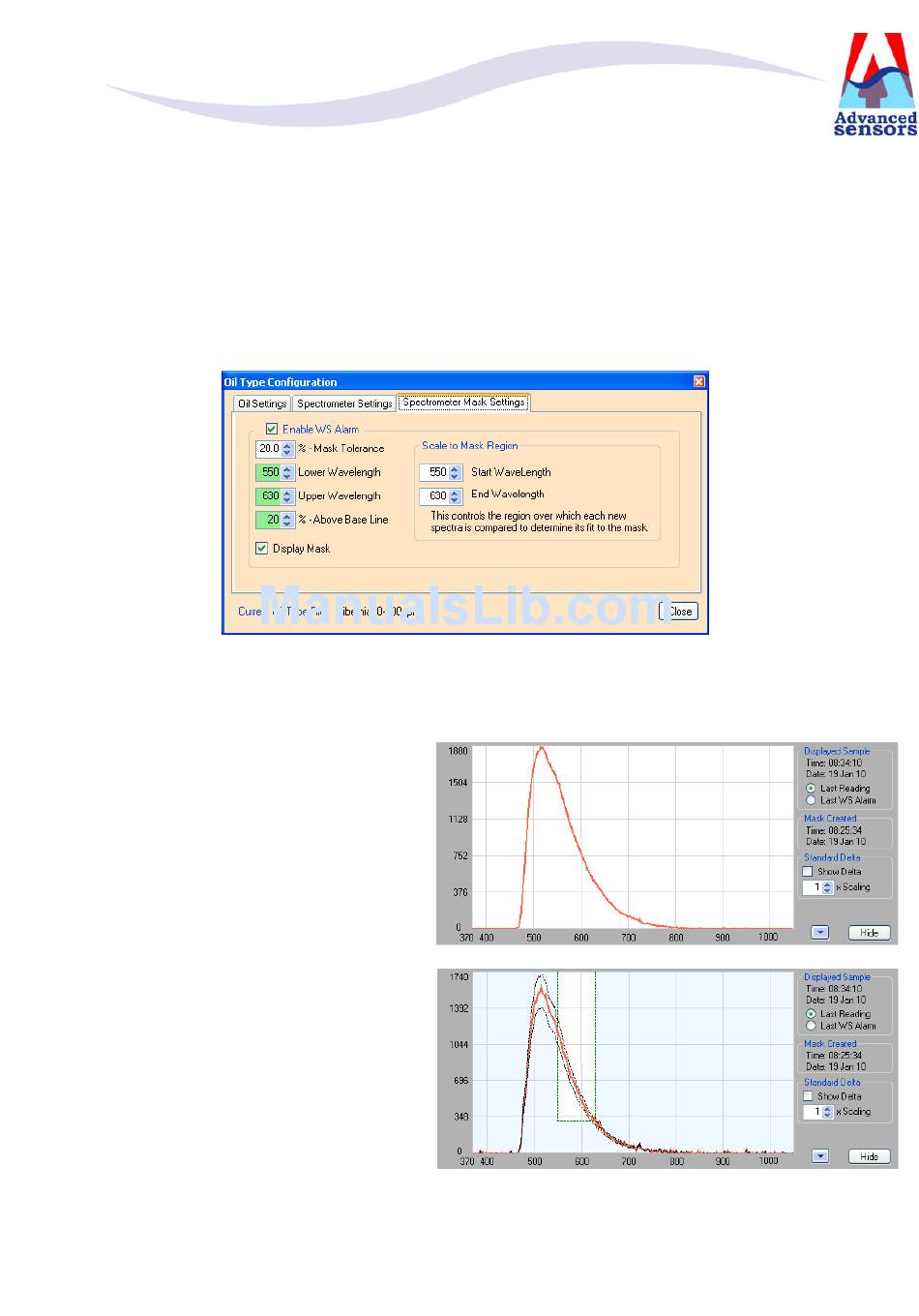

Figure 16. Spectrum Control Options
Figure 17. Spectrum Control Options
Advanced Sensors Ltd,
Page 18 of 33
