2.5 Spectrum Reading Cycle Explained

As with the oil detection system the spectrum analyser requires the laser light as an
illumination source therefore the analyser will not operate when the measurement cycle is in
the stopped position.
The spectrum analyser can take a reading based on any one of three conditions:
• The OIW System software periodically requests a reading – based on a user selectable
time period;
• The PPM level rises above the "User Set" trigger level;
• The user manually requests a reading.
Each of these trigger conditions will be discussed in more detail below but the reading cycle
remains the same for each condition.
The user can have any combination of trigger conditions including all conditions at the same
time i.e. the system can be set to trigger a reading every hour and trigger a reading if 100ppm is
exceeded and select a manual reading. Note: only one reading will be taken at a time.

2.5.1 Measuring Cycles Spectrum Operation

The OIW EX-1000 can be set to take a spectrum analyser reading at regular Measuring Cycles
throughout the day, see the User Handbook for OIW EX-100 for details about Measuring
Cycles. To access this option navigate to the Configuration Options tab, click the
Schedule button and select the Spectrometer tab on the Schedule Configuration
window.
You may change the frequency at which Spectra are taken by using the
"Spectrometer reading taken every" XX "Measurement Cycles" control, Figure 12.
www.advancedsensors.co.uk Tel: +44(0)28 9332 8922. FAX +44(0)28 9332 8669

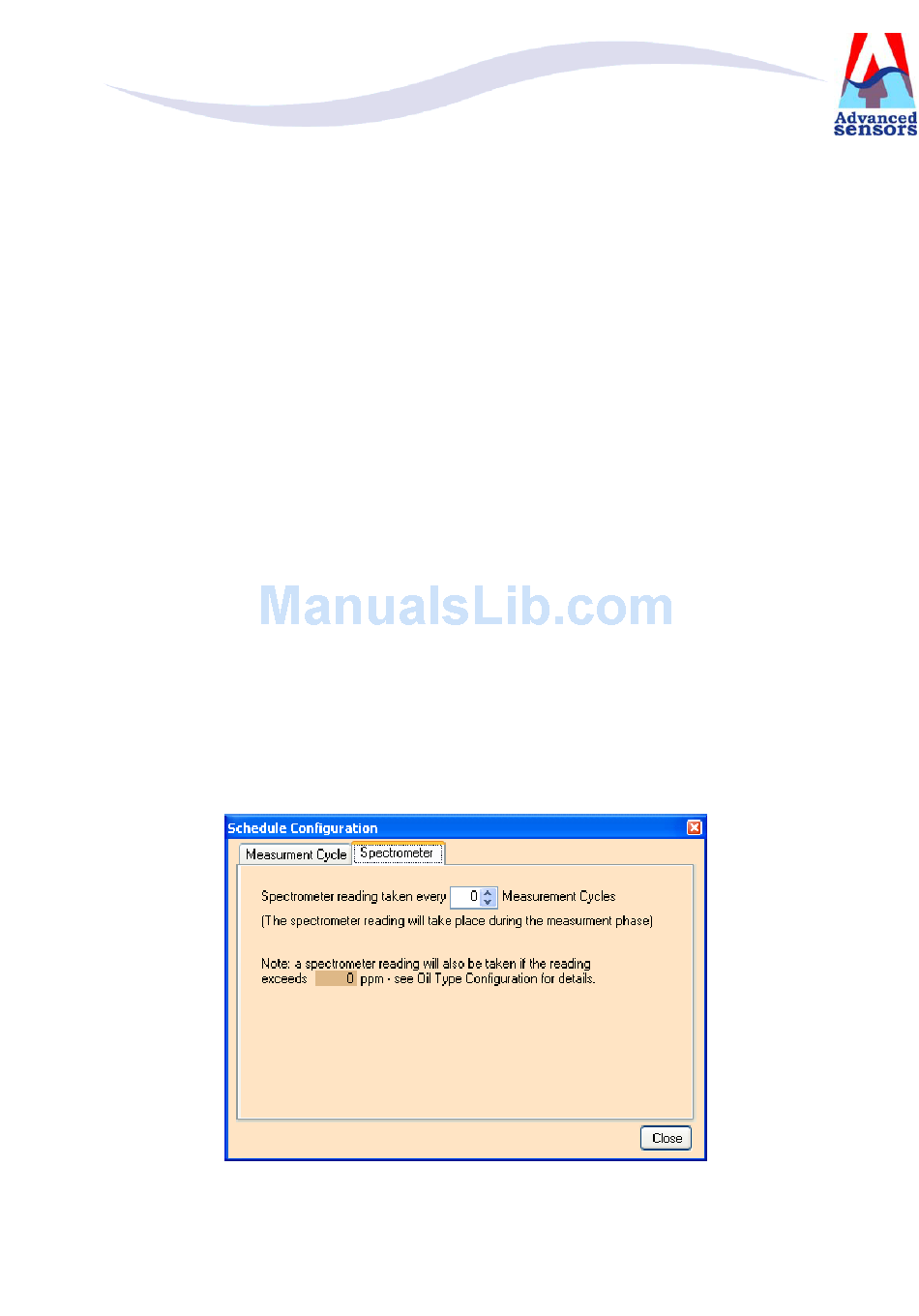

Figure 12. Scheduled Auto Settings
