OIW-EX 1000 - Spectrometer Handbook
Code: OIW-HBO-0005 Version: EX-002
Date: 18 March 2010
When the file loads the red button will change to display the filename it has loaded
(Figure 28 ) and the data within that file will be displayed in the graph area (Figure 28 ).
In addition the Hide buttons option will be enabled (Figure 28 ) (prior to loading a file this
option was disabled, as seen above Figure 27), and the next button in line (blue button
(Figure 28 )) will also become enabled.

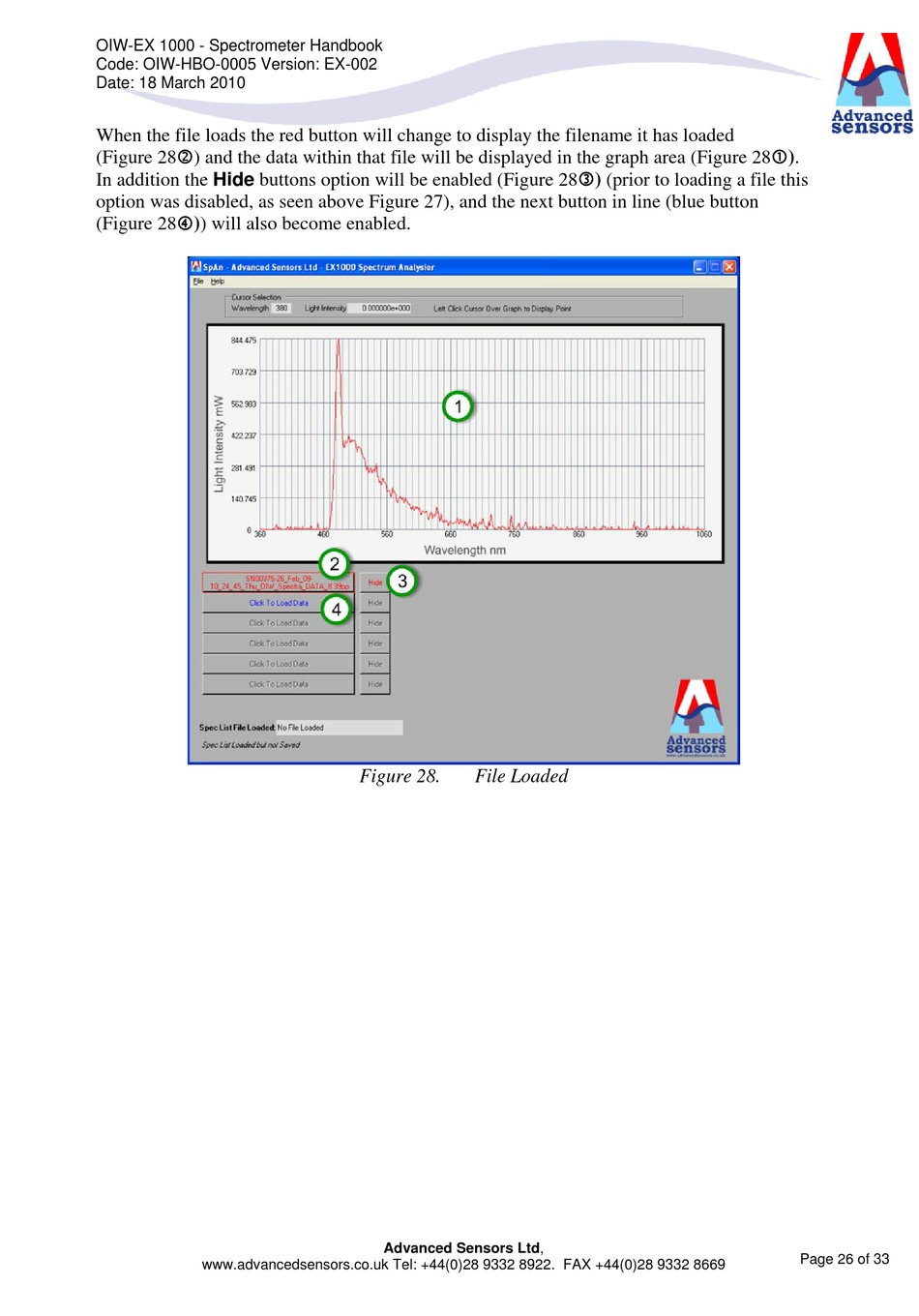

Figure 28. File Loaded
Advanced Sensors Ltd,
Page 26 of 33
