OIW-EX 1000 - Spectrometer Handbook
Code: OIW-HBO-0005 Version: EX-002
Date: 18 March 2010
With the "Spectrometer reading taken every" XX "Measurement Cycles" set to 0; no
Spectra will be taken based on Measuring Cycles.
With "Spectrometer reading taken every" XX "Measurement Cycles" set to 1; a Spectra
will be taken every time a Measuring Cycle Starts.

2.5.2 PPM Level Triggered Spectrum Operation

The OIW EX-1000 can be set to take a spectrum analyser reading when the ppm reading
exceeds a user set ppm level. To access this option navigate to the Configuration Options
tab, click the Oil Type button and select the Spectrometer Settings tab on the Oil Type
Configuration window, Figure 13.
The Level Trigger Value allows any ppm level to be entered in the range 0 to 50000. If a value
of 0 is entered ppm level spectrum readings will not be taken as a value of 0 (zero) disables this
option.

2.5.3 Manual Spectrum Operation

With the measurement cycle started the Take Spectra button will be active and can be
selected at any time to trigger a spectrum analysis of the produced water at that time.
www.advancedsensors.co.uk Tel: +44(0)28 9332 8922. FAX +44(0)28 9332 8669

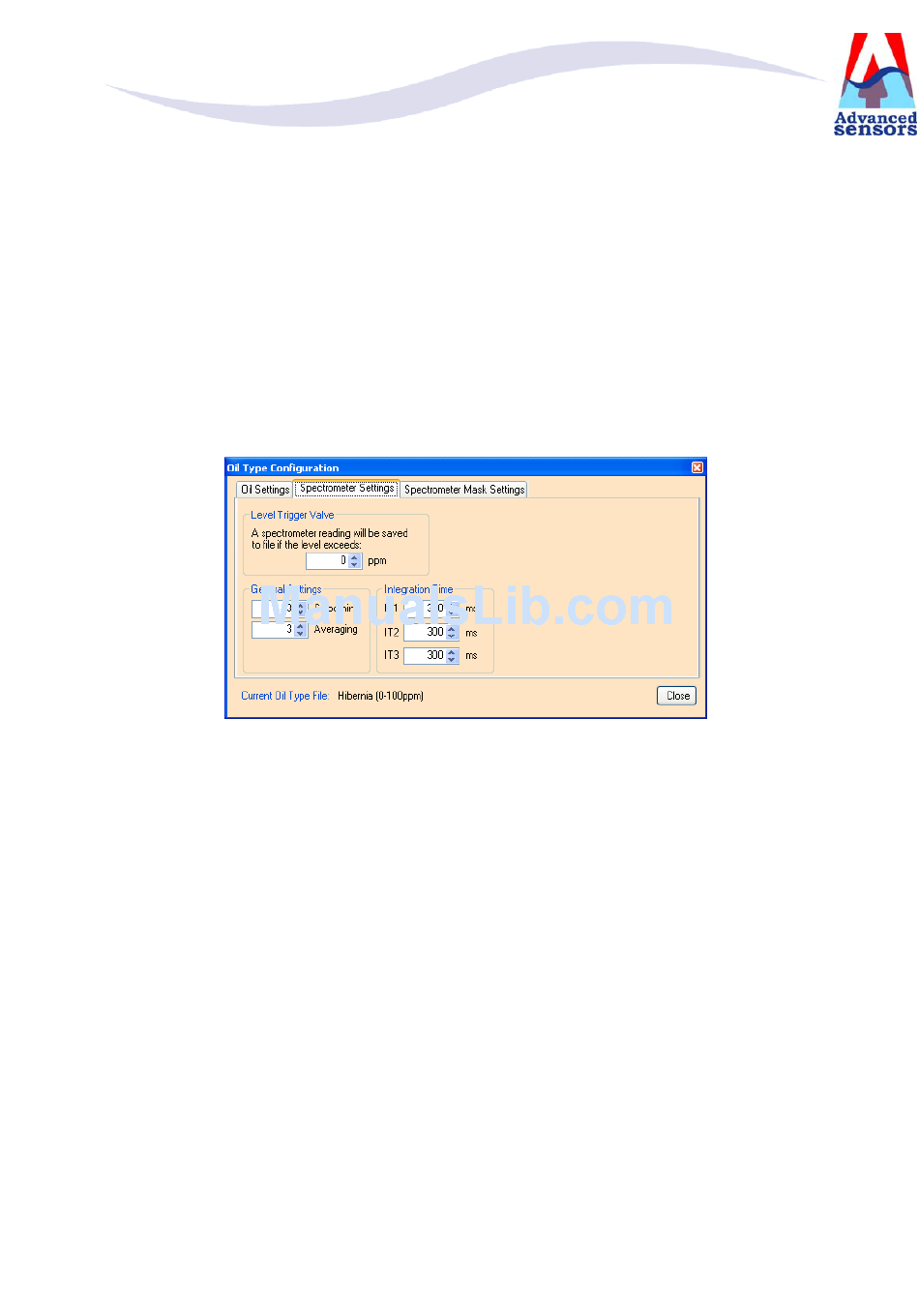

Figure 13. Trigger Level Settings
