CONTENTS
The package contains the following:

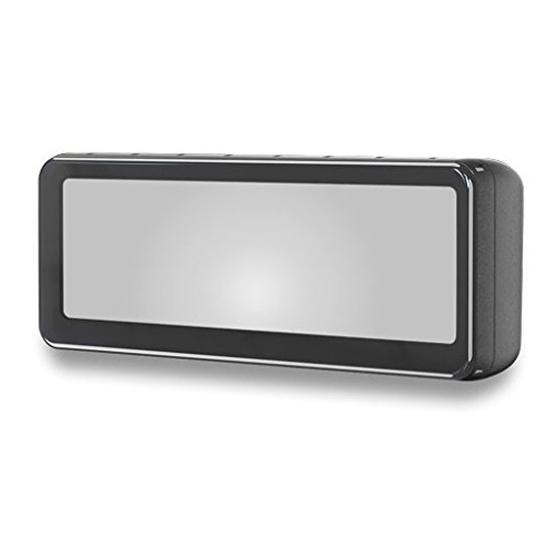

01 Rearview mirror monitor
02 Wire harness
03 User manual
04 Wire cover
05 Wire control
01
02
03
04
05
FEATURES
7.3 inch wide LCD display screen
Frameless design
4-way video inputs
Back-up camera display
Adjustable Back up guide lines
Automatic brightness adjustment
Channel switch among front, back, left, right
SPECIFICATIONS
Screen size: 7.3 inch
Display screen: TFT-LCD
Aspect resolution: 1280(H)*390(V)
Working voltage: 12V
Working temperature: -4 F~+149 F
O
O
Signal system: PAL/Auto/NSTC
Brightness: about 1100cd/m2
HOW TO INSTALL REVERSE CAMERA
When a camera needs to be installed at the rear of vehicle, a good position
is usually at the top of the License plate where there is an under ledge.
Rear view mirror monitor
Camera
1BAM 2XX
BAM 2X
License plate
HOW TO INSTALL MIRROR MONITOR
Remove the original mirror
Car factory original mirror
The plate on the windshield
Different cars have different brackets. It depends on your vehicle maker and
manufacturer.There are many methods to remove the original rear view
mirror, however, please don't force the mirror off the bracket.
The manufacturer will not be responsible for damage caused to your car by
wrong installation of the mirror.
Install mirror monitor on the plate
windshield
Take down your original mirror, and make
Install rear view mirror along this direction
the mirror monitor ready
windshield
windshield
Please make sure to install the mirror
Contrarotate the fixed rear view mirror
to the end of the bottom without any loose
Torque is about 0.8-1.3 N.m
NOTE: Always use caution, DO NOT force the mount. We will not be
responsible for broken windshields. If you are not sure how to remove
or re-install the mirror seek trained, qualified help.
CAUTION!
5
1.
Windshield
Dangerous
OK
2.
Windshield
Dangerous
OK
