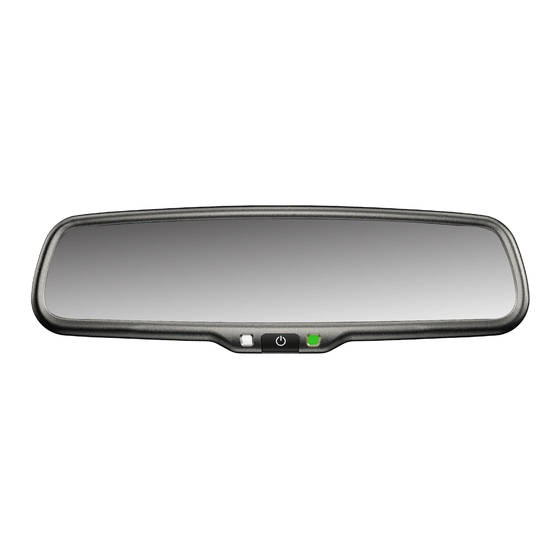

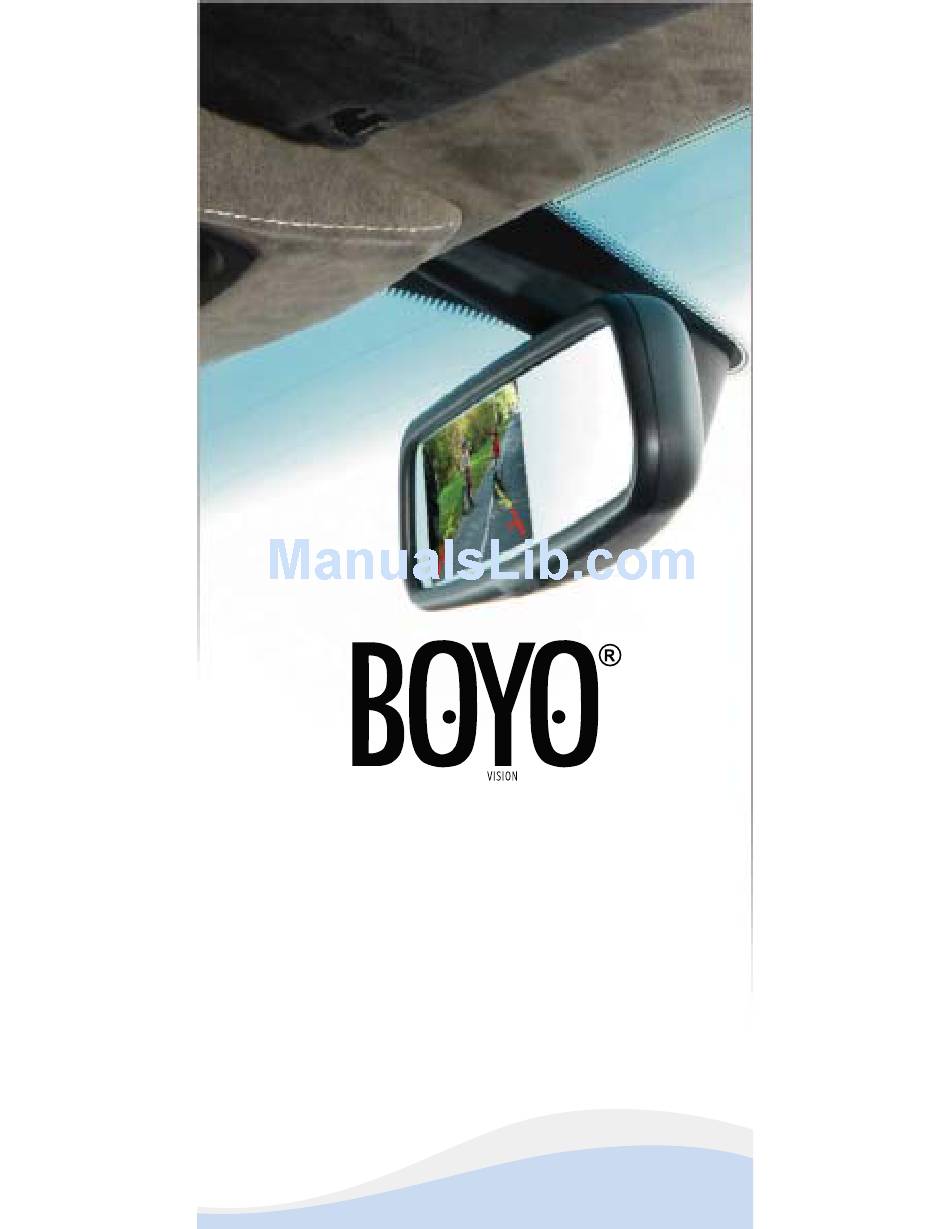

- Page 1 User’s Manual 4.3” Rear View Mirror Monitor With Smartphone Mirroring VTM43ML VTM43MW (Miracast WiFi Dongle included)
-
Page 2: Package Content
Package Content The packing box contains the following accessories, please confirm: Rear view mirror monitor (1) Main harness (1) Wire cover (1) Zip ties (6) Remote control and battery (1) USB Cable HDMI to MHL adapter cable (1) Universal Windshield adapter mount metal base (1) Mounting Bracket Arm (1) Miracast WiFi dongle (VTM43MW only) L-Shape HDMI-to-HDMI cable (VTM43MW only) -
Page 3: How To Install Reverse Camera
vehicle. There are many methods to remove the original rear view Tech America, Inc. will not be responsible for any damage caused to your car by improper installation of the mirror. 4.2 Install mirror monitor on the plate Two ball joints bracket Screw (M5X19) Adapter Screw (M6X8) - Page 4 Connections After the mirror is mounted, you need to run the cable along the roof lining and down the pillar so you can connect to power and the rear view camera. To back up camera Video 2 Video in 1 Red wire to ACC +12V Green wire to back up light 12V DC Black wire to GND...
-
Page 6: Unit Operation
Unit Operation 1. Icons on touch-buttons are MENU, SEL, +, -; 2. SEL: In the absence of MENU button, short press SEL button to switch to the Video screen, short press again to switch back to HDMI video screen (HDMI, VIDEO1, VIDEO2 will cycle through). If there is no signal input, “Video no signal input”... - Page 7 Adjustable guide line 11.1 What the regular guide line will be Regular guide line is fixed. VTM43ML/VTM43MW parking lines are fully adjustable to suit your needs . Most aftermarket cameras support the fixed guide line, however, it doesn't give accurate position and distance for the obstacles.
- Page 8 Clockwise Right Down Reverse clockwise Remote control Move the guide line Rotate the guide line Screen synchronization This rear view mirror can synchronize with the Android or iOS device screen through the HDMI cable. You can operate your smartphone on the rear view mirror such as dialing a call, listening to music, using the navigation and so on.
