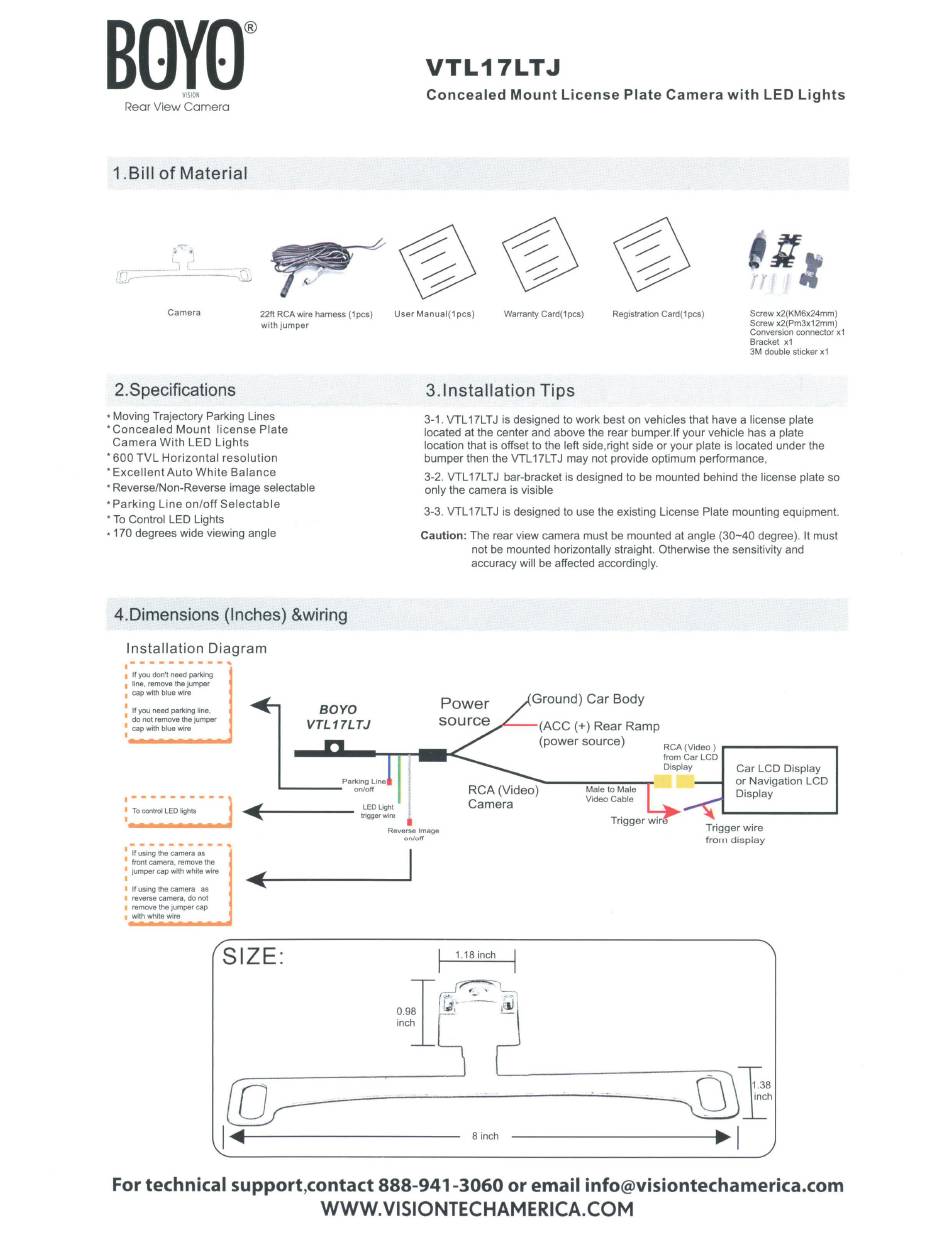

Boyo VTL17LTJ Manual

BOYO®
VISION
Rear View Cam era
1. Bill of Material
.,
------
~l
(_ - - ·
~c.
r.c--
~
Camera
2.Specifications
22ft RCA w ire harness (1 pcs)
with jumper
• Moving Trajectory Parking Lines
·concealed Mount license Plate
Camera With LED Lights
• 600 TVL Horizontal resolution
• Excellent Auto White Ba lance
• Reverse/Non-Reverse image selectable
• Parking Li ne on/off Selectab le
• To Control LED Lights
· 170 degrees wide viewing angle
4.Dimensions (Inches) &wiring
Install ation Diagram
If you don't need parking
line, remove the jumper
cap
with
blue wire
If you need parking line,
do not remove the jumper
cap with blue wire
To control LED lights ....... _ _ _ _ _ _
If
using the camera as
front camera, remove the
jumper cap with white wire
If using the camera as
reverse camera. do not
remove the jumper cap
with white wire
SIZE :
VTL17LTJ

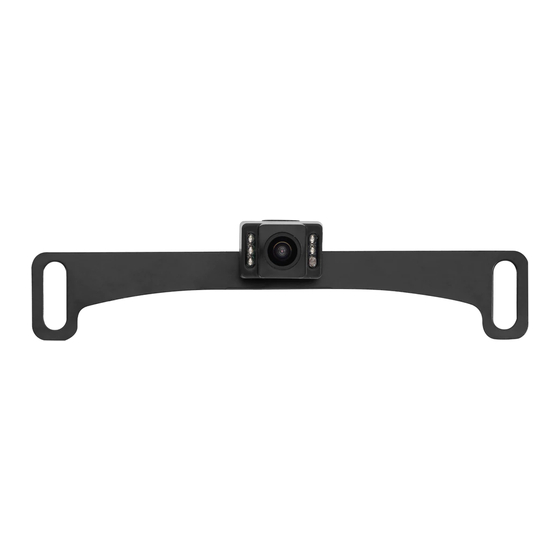

Concealed Mou n t License Plate Camera with LED Lights
Jt
ff '
User Manua l( 1 pes) Warranty Card(1pcs) Registration Card(1pcs)
Screw x2(KM6x24mm)
Screw x2(Pm3x12mm)
Conversion connector x1
Bracket x1
3M double sticker x1
3 .1nstall atio n Ti ps
3-1 . VTL 17LT J is designed to work best on vehicles that have a license plate
located at the center and above the rear bumper. If your vehicle has a plate
location that is offset to the left side, right side or your plate is located under the
bumper then the VTL 17LT J may not provide optimum performance,
3-2. VTL 17LT J bar-bracket is designed to be mounted behind the license plate so
only the camera is visible
3-3. VTL 17LTJ is designed to use the existing License Plate mounting equipment.
Caution : The rear view camera must be mounted at angle (30- 40 degree). It must
Reverse Image
on/off
not be mounted horizontally straight. Otherwise the sensitivity and
accuracy will be affected accordingly.
Power
1.18 inch
Ground) Car Body
(ACC (+) R ear R amp
(power source)
Male to Male
Video Cable
RCA (Video) , . - - - - - - - - - ,
from Car LCD
Display
C ar LCD Display
o r Navigation LCD
Display
from display
---~"------'-~~f
8 inch
~ l
For technical support,contact 888-941 -3060 or email info@visiontechamerica.com
WWW.VISIONTECHAMERICA.COM
